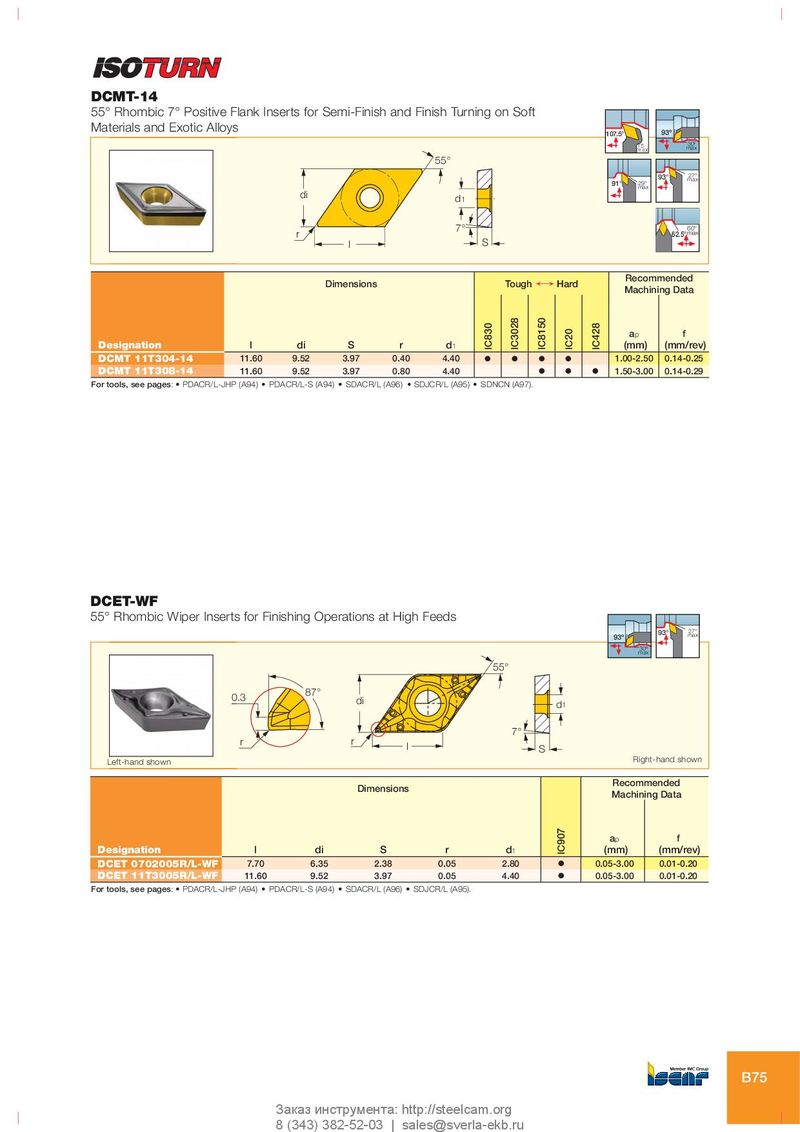

DCMT-14
55° Rhombic 7° Positive Flank Inserts for Semi-Finish and Finish Turning on Soft
Materials and Exotic Alloys
55°
di d 1
7° r l S
Dimensions Tough ¥ Hard
107.5° 93º 30º TH_ max
93° 27° max 91° 29° max
60° 62.5° max
Recommended Machining Data
ap f
| Designation | l | di | S | r | d1 | (mm) | (mm/rev) | |||||
| DCMT 11T304-14 | 11.60 | 9.52 | 3.97 | 0.40 | 4.40 | O | O | O | O | 1.00-2.50 | 0.14-0.25 | |
| DCMT 11T308-14 | 11.60 | 9.52 | 3.97 | 0.80 | 4.40 | O | O | O | 1.50-3.00 | 0.14-0.29 |
For tools, see pages: • PDACR/L-JHP (A94) • PDACR/L-S (A94) • SDACR/L (A96) • SDJCR/L (A95) • SDNCN (A97).
DCET-WF
55° Rhombic Wiper Inserts for Finishing Operations at High Feeds
87° 0.30 di
r r l Left-hand shown
Dimensions
55°
7°
d1
S
93° 27° 93º max 30º max
Right-hand shown
Recommended Machining Data
ap f
| Designation | l | di | S | r | d1 | (mm) | (mm/rev) | |
| DCET 0702005R/L-WF | 7.70 | 6.35 | 2.38 | 0.05 | 2.80 | O | 0.05-3.00 | 0.01-0.20 |
| DCET 11T3005R/L-WF | 11.60 | 9.52 | 3.97 | 0.05 | 4.40 | O | 0.05-3.00 | 0.01-0.20 |
For tools, see pages: • PDACR/L-JHP (A94) • PDACR/L-S (A94) • SDACR/L (A96) • SDJCR/L (A95).
