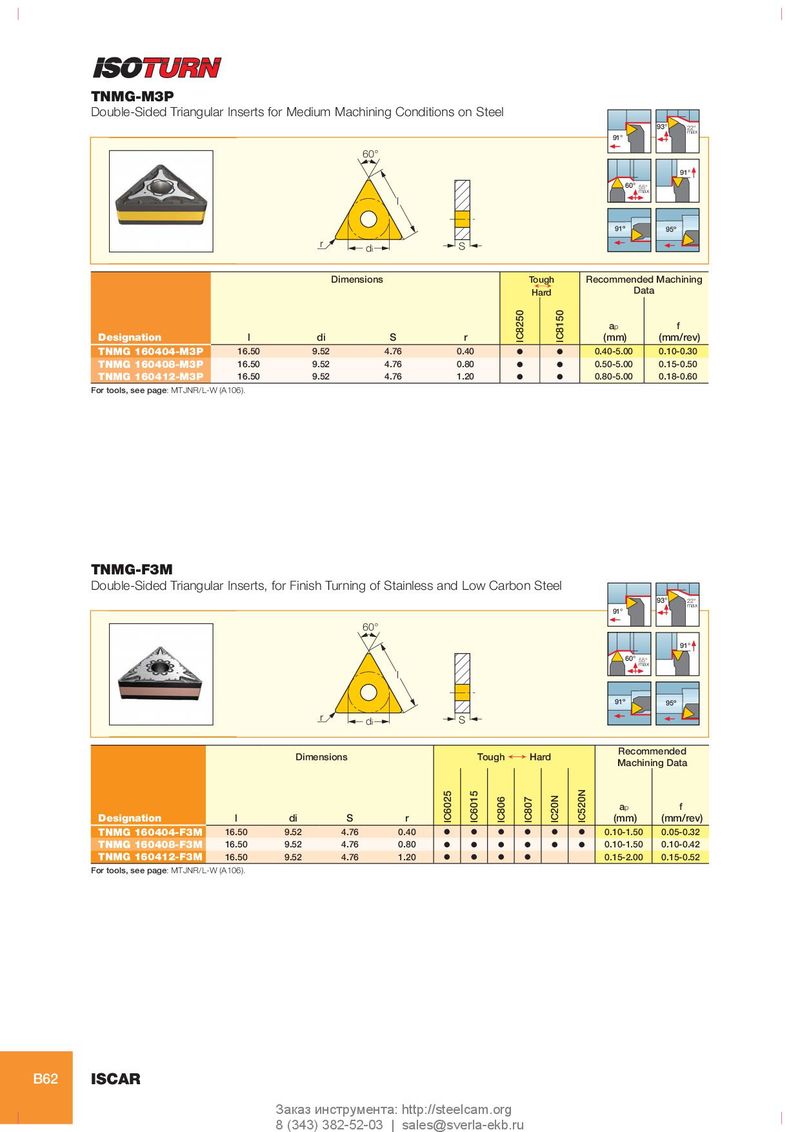

TNMG-M3P
Double-Sided Triangular Inserts for Medium Machining Conditions on Steel
93° 22°
max
91°
60°
91°
60° 55°
max
l
91º 95º
r di S

Dimensions Tough Recommended Machining
¥
Hard Data


IC8250

IC8150
ap f
Designation l di S r (mm) (mm/rev)
TNMG 160404-M3P 16.50 9.52 4.76 0.40 O O 0.40-5.00 0.10-0.30
TNMG 160408-M3P 16.50 9.52 4.76 0.80 O O 0.50-5.00 0.15-0.50
TNMG 160412-M3P 16.50 9.52 4.76 1.20 O O 0.80-5.00 0.18-0.60
For tools, see page: MTJNR/L-W (A106).


TNMG-F3M
Double-Sided Triangular Inserts, for Finish Turning of Stainless and Low Carbon Steel
93° 22°
max
91°
60°
91°
60° 55°
max
l
91º 95º
r di S

Recommended
Dimensions Tough ¥ Hard
Machining Data
IC520N
IC6025
IC6015


IC20N
IC806
IC807


ap f
Designation l di S r (mm) (mm/rev)
TNMG 160404-F3M 16.50 9.52 4.76 0.40 O O O O O O 0.10-1.50 0.05-0.32
TNMG 160408-F3M 16.50 9.52 4.76 0.80 O O O O O O 0.10-1.50 0.10-0.42
TNMG 160412-F3M 16.50 9.52 4.76 1.20 O O O O 0.15-2.00 0.15-0.52
For tools, see page: MTJNR/L-W (A106).


B62 ISCAR
