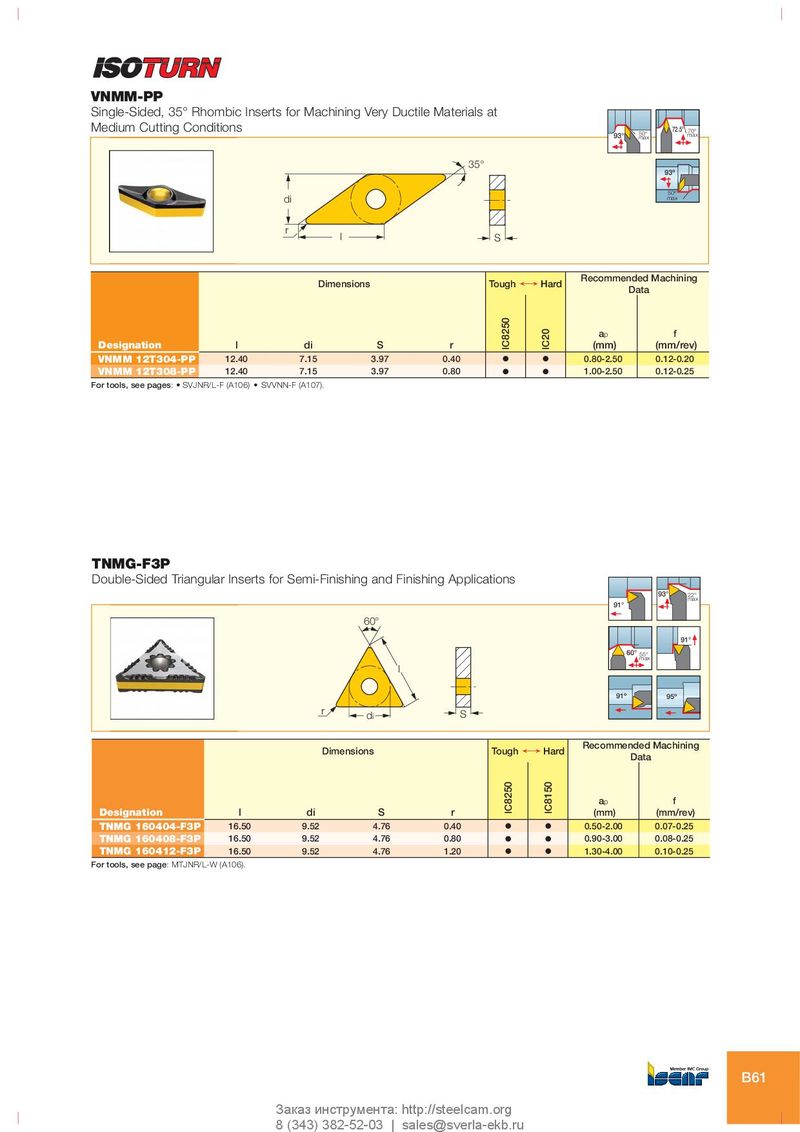

VNMM-PP
Single-Sided, 35° Rhombic Inserts for Machining Very Ductile Materials at
Medium Cutting Conditions
35°
di
r l S
93°
50° max
72.5° 70° max
93º
50º max
Recommended Machining Dimensions Tough ¥ Hard Data
ap f
| Designation | l | di | S | r | (mm) | (mm/rev) | ||
| VNMM 12T304-PP | 12.40 | 7.15 | 3.97 | 0.40 | O | O | 0.80-2.50 | 0.12-0.20 |
| VNMM 12T308-PP | 12.40 | 7.15 | 3.97 | 0.80 | O | O | 1.00-2.50 | 0.12-0.25 |
For tools, see pages: • SVJNR/L-F (A106) • SVVNN-F (A107).
TNMG-F3P
Double-Sided Triangular Inserts for Semi-Finishing and Finishing Applications
60°
l
r S di
Dimensions Tough ¥ Hard
93° 22° max 91°
91° 60° 55° max
91º 95º
Recommended Machining Data
ap f
| Designation | l | di | S | r | (mm) | (mm/rev) | ||
| TNMG 160404-F3P | 16.50 | 9.52 | 4.76 | 0.40 | O | O | 0.50-2.00 | 0.07-0.25 |
| TNMG 160408-F3P | 16.50 | 9.52 | 4.76 | 0.80 | O | O | 0.90-3.00 | 0.08-0.25 |
| TNMG 160412-F3P | 16.50 | 9.52 | 4.76 | 1.20 | O | O | 1.30-4.00 | 0.10-0.25 |
For tools, see page: MTJNR/L-W (A106).
