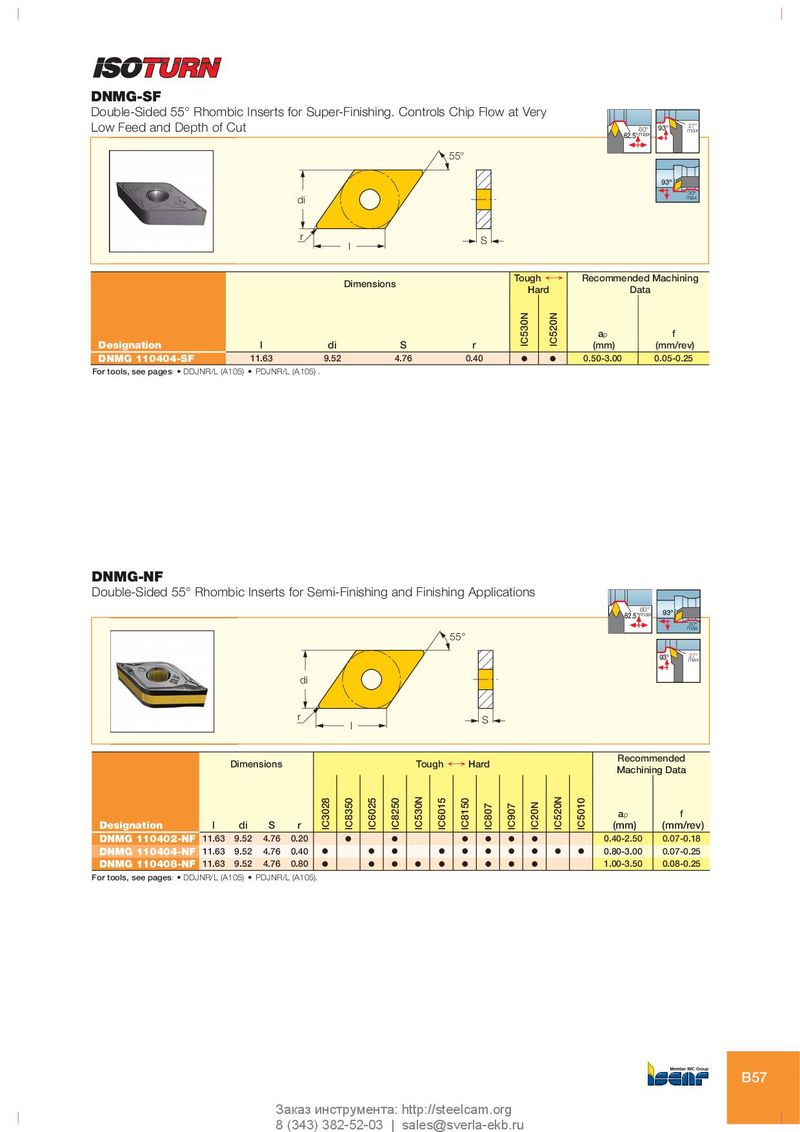

DNMG-SF
Double-Sided 55° Rhombic Inserts for Super-Finishing. Controls Chip Flow at Very
Low Feed and Depth of Cut
55°
di
93° 27° 60° max 62.5° max
93º 30º max
r l
Dimensions
S
Tough ¥ Recommended Machining Hard Data
ap f
| Designation | l | di | S | r | (mm) | (mm/rev) | ||
| DNMG 110404-SF | 11.63 | 9.52 | 4.76 | 0.40 | O | O | 0.50-3.00 | 0.05-0.25 |
For tools, see pages: • DDJNR/L (A105) • PDJNR/L (A105) .
DNMG-NF
Double-Sided 55° Rhombic Inserts for Semi-Finishing and Finishing Applications
55°
di
60° 93º 62.5° max
93°
30º max
27° max
r S l
Dimensions Tough ¥ Hard
Recommended Machining Data
ap f
| Designation | l | di | S | r | (mm) | (mm/rev) | ||||||||||||
| DNMG 110402-NF | 11.63 | 9.52 | 4.76 | 0.20 | O | O | O | O | O | O | 0.40-2.50 | 0.07-0.18 | ||||||
| DNMG 110404-NF | 11.63 | 9.52 | 4.76 | 0.40 | O | O | O | O | O | O | O | O | O | O | 0.80-3.00 | 0.07-0.25 | ||
| DNMG 110408-NF | 11.63 | 9.52 | 4.76 | 0.80 | O | O | O | O | O | O | O | O | O | 1.00-3.50 | 0.08-0.25 |
For tools, see pages: • DDJNR/L (A105) • PDJNR/L (A105).
