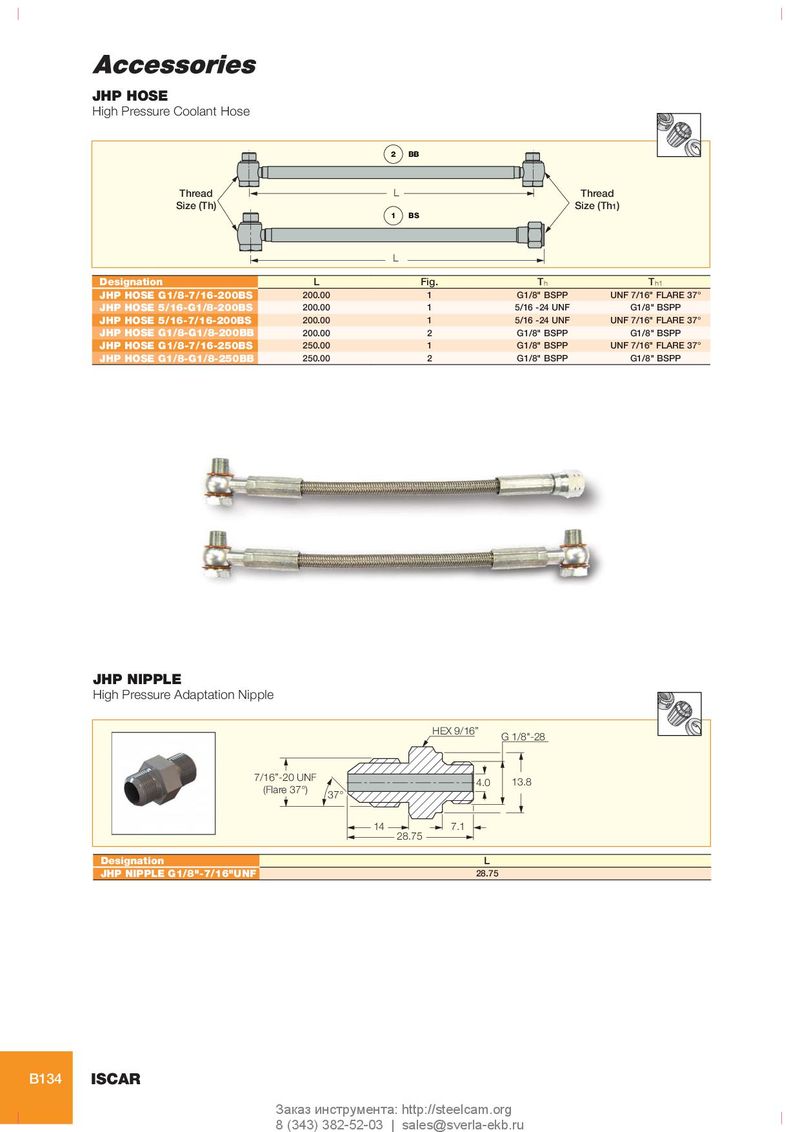

JHP HOSE

High Pressure Coolant Hose

2 BB

Thread L Thread

Size (Th) Size (Th1) 1 BS

L

DesignationLFig.ThTh1
JHP HOSE G1/8-7/16-200BS200.001G1/8" BSPPUNF 7/16" FLARE 37°
JHP HOSE 5/16-G1/8-200BS200.0015/16 -24 UNFG1/8" BSPP
JHP HOSE 5/16-7/16-200BS200.0015/16 -24 UNFUNF 7/16" FLARE 37°
JHP HOSE G1/8-G1/8-200BB200.002G1/8" BSPPG1/8" BSPP
JHP HOSE G1/8-7/16-250BS250.001G1/8" BSPPUNF 7/16" FLARE 37°
JHP HOSE G1/8-G1/8-250BB250.002G1/8" BSPPG1/8" BSPP

JHP NIPPLE

High Pressure Adaptation Nipple

HEX 9/16” G 1/8"-28

7/16”-20 UNF (Flare 37°) 37°

Designation JHP NIPPLE G1/8"-7/16"UNF

4.0 13.8

14 7.1 28.75 L 28.75
