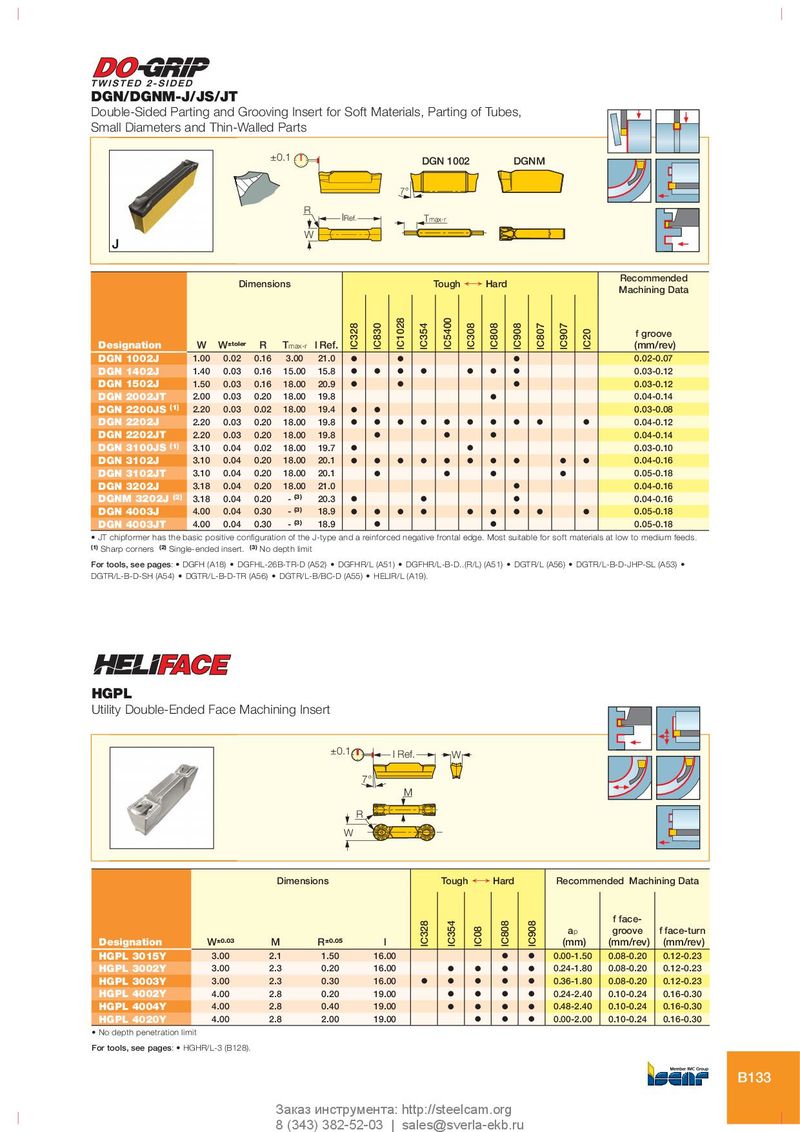

DGN/DGNM-J/JS/JT
Double-Sided Parting and Grooving Insert for Soft Materials, Parting of Tubes,
Small Diameters and Thin-Walled Parts
±0.1 DGN 1002 DGNM
‡
R
lRef. Tmax-r
W

Recommended
Dimensions Tough ¥ Hard
Machining Data


IC1028

IC5400
IC328
IC830

IC354

IC308
IC808
IC908
IC807
IC907
IC20
f groove
Designation W W±toler R Tmax-r l Ref. (mm/rev)
DGN 1002J 1.00 0.02 0.16 3.00 21.0 O O O 0.02-0.07
DGN 1402J 1.40 0.03 0.16 15.00 15.8 O O O O O O O 0.03-0.12
DGN 1502J 1.50 0.03 0.16 18.00 20.9 O O O 0.03-0.12
DGN 2002JT 2.00 0.03 0.20 18.00 19.8 O 0.04-0.14
DGN 2200JS (1) 2.20 0.03 0.02 18.00 19.4 O O 0.03-0.08
DGN 2202J 2.20 0.03 0.20 18.00 19.8 O O O O O O O O O O 0.04-0.12
DGN 2202JT 2.20 0.03 0.20 18.00 19.8 O O O 0.04-0.14
DGN 3100JS (1) 3.10 0.04 0.02 18.00 19.7 O O 0.03-0.10
DGN 3102J 3.10 0.04 0.20 18.00 20.1 O O O O O O O O O O 0.04-0.16
DGN 3102JT 3.10 0.04 0.20 18.00 20.1 O O O O 0.05-0.18
DGN 3202J 3.18 0.04 0.20 18.00 21.0 O 0.04-0.16
DGNM 3202J (2) 3.18 0.04 0.20 - (3) 20.3 O O O 0.04-0.16
DGN 4003J 4.00 0.04 0.30 - (3) 18.9 O O O O O O O O O 0.05-0.18
DGN 4003JT 4.00 0.04 0.30 - (3) 18.9 O O 0.05-0.18
• JT chipformer has the basic positive configuration of the J-type and a reinforced negative frontal edge. Most suitable for soft materials at low to medium feeds.
(1) Sharp corners (2) Single-ended insert. (3) No depth limit

For tools, see pages: • DGFH (A18) • DGFHL-26B-TR-D (A52) • DGFHR/L (A51) • DGFHR/L-B-D..(R/L) (A51) • DGTR/L (A56) • DGTR/L-B-D-JHP-SL (A53) •
DGTR/L-B-D-SH (A54) • DGTR/L-B-D-TR (A56) • DGTR/L-B/BC-D (A55) • HELIR/L (A19).


HGPL
Utility Double-Ended Face Machining Insert

±0.1 l Ref. W
7°
M
R
W

Dimensions Tough ¥ Hard Recommended Machining Data

f face-
IC328
IC354


IC808
IC908
IC08


ap groove f face-turn
Designation W±0.03 M R±0.05 l (mm) (mm/rev) (mm/rev)
HGPL 3015Y 3.00 2.1 1.50 16.00 O O 0.00-1.50 0.08-0.20 0.12-0.23
HGPL 3002Y 3.00 2.3 0.20 16.00 O O O O 0.24-1.80 0.08-0.20 0.12-0.23
HGPL 3003Y 3.00 2.3 0.30 16.00 O O O O O 0.36-1.80 0.08-0.20 0.12-0.23
HGPL 4002Y 4.00 2.8 0.20 19.00 O O O O 0.24-2.40 0.10-0.24 0.16-0.30
HGPL 4004Y 4.00 2.8 0.40 19.00 O O O O 0.48-2.40 0.10-0.24 0.16-0.30
HGPL 4020Y 4.00 2.8 2.00 19.00 O O O 0.00-2.00 0.10-0.24 0.16-0.30
• No depth penetration limit
For tools, see pages: • HGHR/L-3 (B128).

B133
