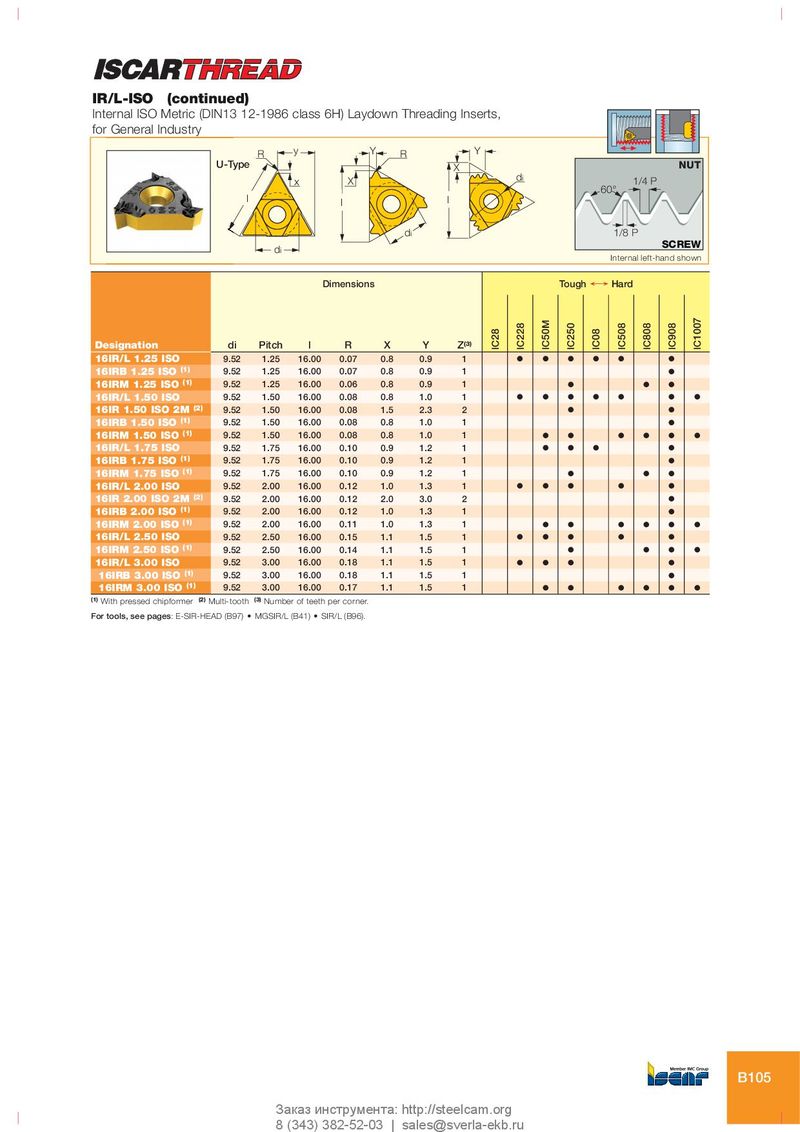

IR/L-ISO (continued)
Internal ISO Metric (DIN13 12-1986 class 6H) Laydown Threading Inserts,
for General Industry
R y Y R Y
U-Ty
U-Type X NUT
x X di 1/4 P
60°
l l l

di 1/8 P
di SCREW
Internal left-hand shown

Dimensions Tough ¥ Hard


IC1007
IC50M
IC228


IC250


IC508
IC808
IC908
IC28


IC08
Designation di Pitch l R X Y Z(3)
16IR/L 1.25 ISO 9.52 1.25 16.00 0.07 0.8 0.9 1 O O O O O O
16IRB 1.25 ISO (1) 9.52 1.25 16.00 0.07 0.8 0.9 1 O
16IRM 1.25 ISO (1) 9.52 1.25 16.00 0.06 0.8 0.9 1 O O O
16IR/L 1.50 ISO 9.52 1.50 16.00 0.08 0.8 1.0 1 O O O O O O O
16IR 1.50 ISO 2M (2) 9.52 1.50 16.00 0.08 1.5 2.3 2 O O
16IRB 1.50 ISO (1) 9.52 1.50 16.00 0.08 0.8 1.0 1 O
16IRM 1.50 ISO (1) 9.52 1.50 16.00 0.08 0.8 1.0 1 O O O O O O
16IR/L 1.75 ISO 9.52 1.75 16.00 0.10 0.9 1.2 1 O O O O
16IRB 1.75 ISO (1) 9.52 1.75 16.00 0.10 0.9 1.2 1 O
16IRM 1.75 ISO (1) 9.52 1.75 16.00 0.10 0.9 1.2 1 O O O
16IR/L 2.00 ISO 9.52 2.00 16.00 0.12 1.0 1.3 1 O O O O O
16IR 2.00 ISO 2M (2) 9.52 2.00 16.00 0.12 2.0 3.0 2 O
16IRB 2.00 ISO (1) 9.52 2.00 16.00 0.12 1.0 1.3 1 O
16IRM 2.00 ISO (1) 9.52 2.00 16.00 0.11 1.0 1.3 1 O O O O O O
16IR/L 2.50 ISO 9.52 2.50 16.00 0.15 1.1 1.5 1 O O O O O
16IRM 2.50 ISO (1) 9.52 2.50 16.00 0.14 1.1 1.5 1 O O O O
16IR/L 3.00 ISO 9.52 3.00 16.00 0.18 1.1 1.5 1 O O O O
16IRB 3.00 ISO (1) 9.52 3.00 16.00 0.18 1.1 1.5 1 O
16IRM 3.00 ISO (1) 9.52 3.00 16.00 0.17 1.1 1.5 1 O O O O O O
(1) With pressed chipformer (2) Multi-tooth (3) Number of teeth per corner.

For tools, see pages: E-SIR-HEAD (B97) • MGSIR/L (B41) • SIR/L (B96).


B105
