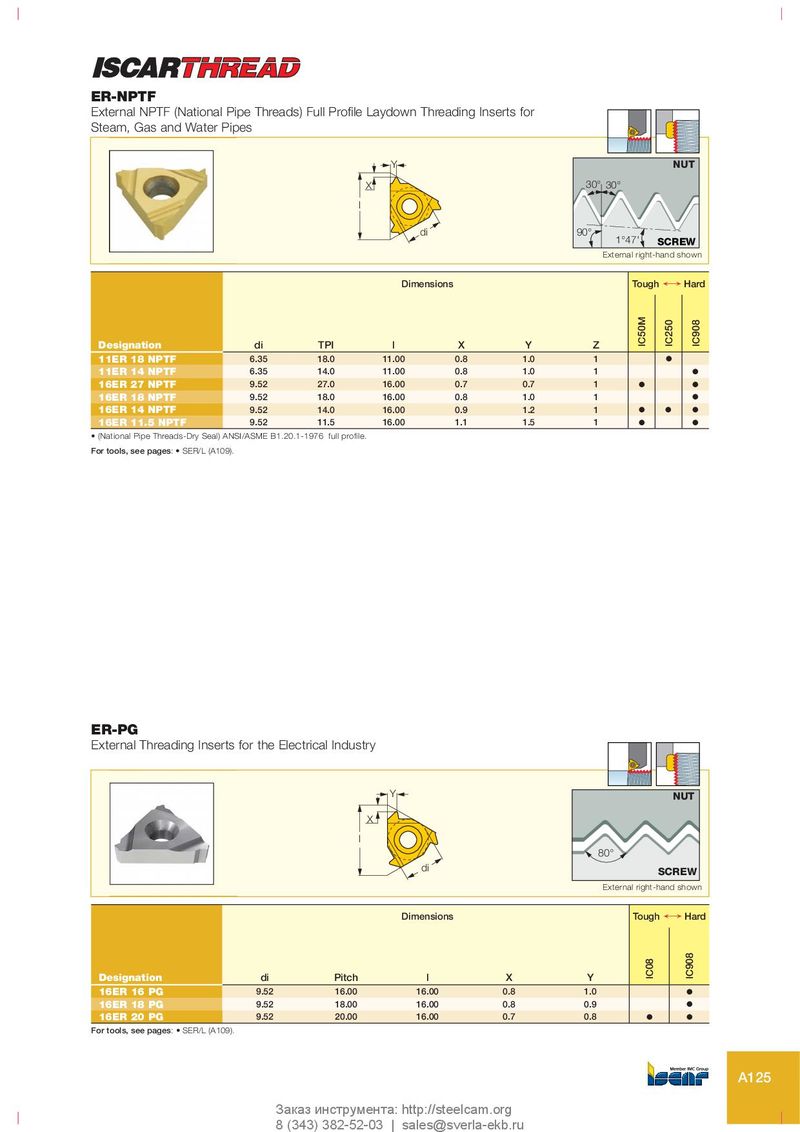

ER-NPTF
External NPTF (National Pipe Threads) Full Profile Laydown Threading Inserts for
Steam, Gas and Water Pipes
Y NUT
X 30° 30°
l
di 90°
1°47' SCREW
External right-hand shown

Dimensions Tough ¥ Hard


IC50M
IC250
IC908
Designation di TPI l X Y Z
11ER 18 NPTF 6.35 18.0 11.00 0.8 1.0 1 O
11ER 14 NPTF 6.35 14.0 11.00 0.8 1.0 1 O
16ER 27 NPTF 9.52 27.0 16.00 0.7 0.7 1 O O
16ER 18 NPTF 9.52 18.0 16.00 0.8 1.0 1 O
16ER 14 NPTF 9.52 14.0 16.00 0.9 1.2 1 O O O
16ER 11.5 NPTF 9.52 11.5 16.00 1.1 1.5 1 O O
• (National Pipe Threads-Dry Seal) ANSI/ASME B1.20.1-1976 full profile.
For tools, see pages: • SER/L (A109).


ER-PG
External Threading Inserts for the Electrical Industry

Y NUT
X
l
80°
di SCREW
External right-hand shown

Dimensions Tough ¥ Hard
IC908
IC08


Designation di Pitch l X Y
16ER 16 PG 9.52 16.00 16.00 0.8 1.0 O
16ER 18 PG 9.52 18.00 16.00 0.8 0.9 O
16ER 20 PG 9.52 20.00 16.00 0.7 0.8 O O
For tools, see pages: • SER/L (A109).


A125
