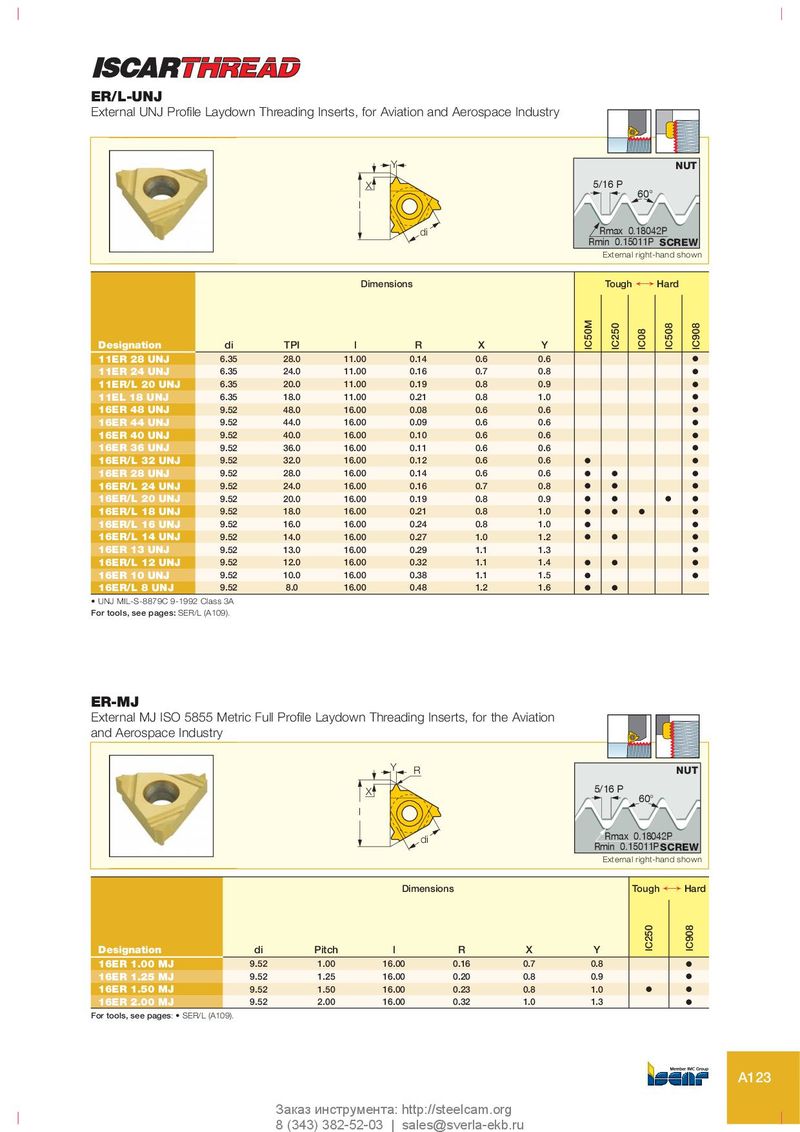

ER/L-UNJ External UNJ Profile Laydown Threading Inserts, for Aviation and Aerospace Industry Y NUT X 5/16 P 60° l di Rmax 0.18042P Rmin 0.15011P SCREW External right-hand shown Dimensions Tough ¥ Hard Designation di TPI l R X Y IC50M IC250 IC08 IC508 IC908 11ER 28 UNJ 6.35 28.0 11.00 0.14 0.6 0.6 O 11ER 24 UNJ 6.35 24.0 11.00 0.16 0.7 0.8 O 11ER/L 20 UNJ 6.35 20.0 11.00 0.19 0.8 0.9 O 11EL 18 UNJ 6.35 18.0 11.00 0.21 0.8 1.0 O 16ER 48 UNJ 9.52 48.0 16.00 0.08 0.6 0.6 O 16ER 44 UNJ 9.52 44.0 16.00 0.09 0.6 0.6 O 16ER 40 UNJ 9.52 40.0 16.00 0.10 0.6 0.6 O 16ER 36 UNJ 9.52 36.0 16.00 0.11 0.6 0.6 O 16ER/L 32 UNJ 9.52 32.0 16.00 0.12 0.6 0.6 O O 16ER 28 UNJ 9.52 28.0 16.00 0.14 0.6 0.6 O O O 16ER/L 24 UNJ 9.52 24.0 16.00 0.16 0.7 0.8 O O O 16ER/L 20 UNJ 9.52 20.0 16.00 0.19 0.8 0.9 O O O O 16ER/L 18 UNJ 9.52 18.0 16.00 0.21 0.8 1.0 O O O O 16ER/L 16 UNJ 9.52 16.0 16.00 0.24 0.8 1.0 O O 16ER/L 14 UNJ 9.52 14.0 16.00 0.27 1.0 1.2 O O O 16ER 13 UNJ 9.52 13.0 16.00 0.29 1.1 1.3 O 16ER/L 12 UNJ 9.52 12.0 16.00 0.32 1.1 1.4 O O O 16ER 10 UNJ 9.52 10.0 16.00 0.38 1.1 1.5 O O 16ER/L 8 UNJ 9.52 8.0 16.00 0.48 1.2 1.6 O O • UNJ MIL-S-8879C 9-1992 Class 3A For tools, see pages: SER/L (A109). ER-MJ External MJ ISO 5855 Metric Full Profile Laydown Threading Inserts, for the Aviation and Aerospace Industry Y R NUT X 5/16 P 60° l di Rmax 0.18042P Rmin 0.15011P SCREW External right-hand shown Dimensions Tough ¥ Hard Designation di Pitch l R X Y IC250 IC908 16ER 1.00 MJ 9.52 1.00 16.00 0.16 0.7 0.8 O 16ER 1.25 MJ 9.52 1.25 16.00 0.20 0.8 0.9 O 16ER 1.50 MJ 9.52 1.50 16.00 0.23 0.8 1.0 O O 16ER 2.00 MJ 9.52 2.00 16.00 0.32 1.0 1.3 O For tools, see pages: • SER/L (A109). A123 Заказ инструмента: http://steelcam.org 8 (343) 382-52-03 | sales@sverla-ekb.ru
