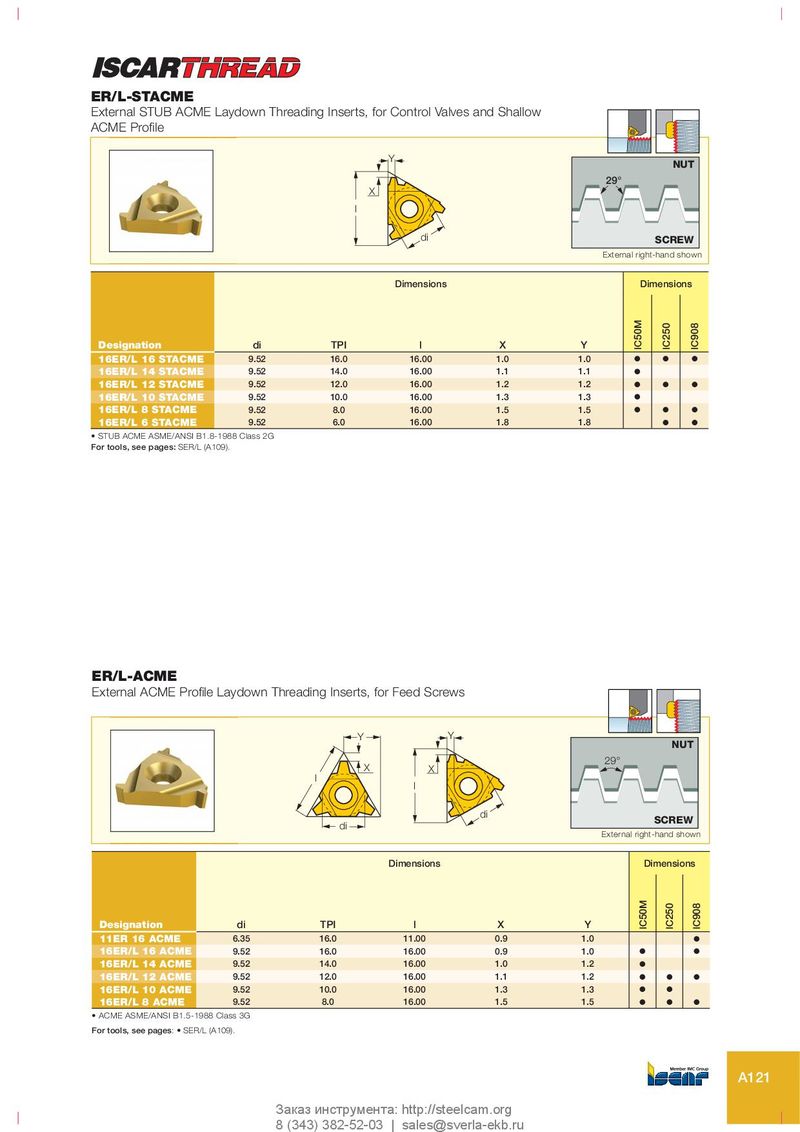

Каталог Iscar инструмент для мелкоразмерной обработки - страница 139

ER/L-STACME
External STUB ACME Laydown Threading Inserts, for Control Valves and Shallow
ACME Profile
Y
NUT
29°
X
l
di SCREW
External right-hand shown

Dimensions Dimensions


IC50M
IC250
IC908
Designation di TPI l X Y
16ER/L 16 STACME 9.52 16.0 16.00 1.0 1.0 O O O
16ER/L 14 STACME 9.52 14.0 16.00 1.1 1.1 O
16ER/L 12 STACME 9.52 12.0 16.00 1.2 1.2 O O O
16ER/L 10 STACME 9.52 10.0 16.00 1.3 1.3 O
16ER/L 8 STACME 9.52 8.0 16.00 1.5 1.5 O O O
16ER/L 6 STACME 9.52 6.0 16.00 1.8 1.8 O O
• STUB ACME ASME/ANSI B1.8-1988 Class 2G
For tools, see pages: SER/L (A109).


ER/L-ACME
External ACME Profile Laydown Threading Inserts, for Feed Screws

Y Y
NUT
29°
X X
l
l
di
SCREW
di
External right-hand shown

Dimensions Dimensions
IC50M
IC250
IC908


Designation di TPI l X Y
11ER 16 ACME 6.35 16.0 11.00 0.9 1.0 O
16ER/L 16 ACME 9.52 16.0 16.00 0.9 1.0 O O
16ER/L 14 ACME 9.52 14.0 16.00 1.0 1.2 O
16ER/L 12 ACME 9.52 12.0 16.00 1.1 1.2 O O O
16ER/L 10 ACME 9.52 10.0 16.00 1.3 1.3 O O
16ER/L 8 ACME 9.52 8.0 16.00 1.5 1.5 O O O
• ACME ASME/ANSI B1.5-1988 Class 3G
For tools, see pages: • SER/L (A109).


A121
