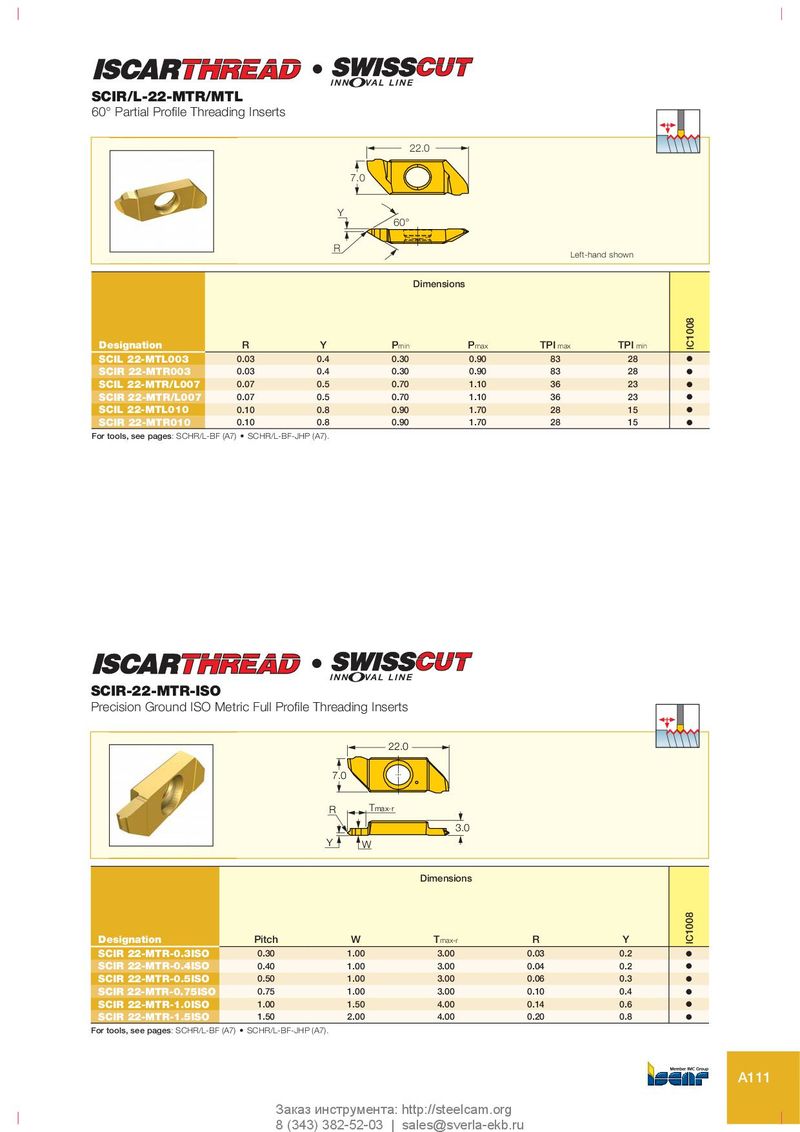

 O

SCIR/L-22-MTR/MTL
60° Partial Profile Threading Inserts
22.0
7.0

Y
60°
R
Left-hand shown

Dimensions


IC1008
Designation R Y Pmin Pmax TPI max TPI min
SCIL 22-MTL003 0.03 0.4 0.30 0.90 83 28 O
SCIR 22-MTR003 0.03 0.4 0.30 0.90 83 28 O
SCIL 22-MTR/L007 0.07 0.5 0.70 1.10 36 23 O
SCIR 22-MTR/L007 0.07 0.5 0.70 1.10 36 23 O
SCIL 22-MTL010 0.10 0.8 0.90 1.70 28 15 O
SCIR 22-MTR010 0.10 0.8 0.90 1.70 28 15 O
For tools, see pages: SCHR/L-BF (A7) • SCHR/L-BF-JHP (A7).


 O

SCIR-22-MTR-ISO
Precision Ground ISO Metric Full Profile Threading Inserts

22.0
7.0

R Tmax-r
3.0
Y W

Dimensions
IC1008


Designation Pitch W Tmax-r R Y
SCIR 22-MTR-0.3ISO 0.30 1.00 3.00 0.03 0.2 O
SCIR 22-MTR-0.4ISO 0.40 1.00 3.00 0.04 0.2 O
SCIR 22-MTR-0.5ISO 0.50 1.00 3.00 0.06 0.3 O
SCIR 22-MTR-0.75ISO 0.75 1.00 3.00 0.10 0.4 O
SCIR 22-MTR-1.0ISO 1.00 1.50 4.00 0.14 0.6 O
SCIR 22-MTR-1.5ISO 1.50 2.00 4.00 0.20 0.8 O
For tools, see pages: SCHR/L-BF (A7) • SCHR/L-BF-JHP (A7).


A111
