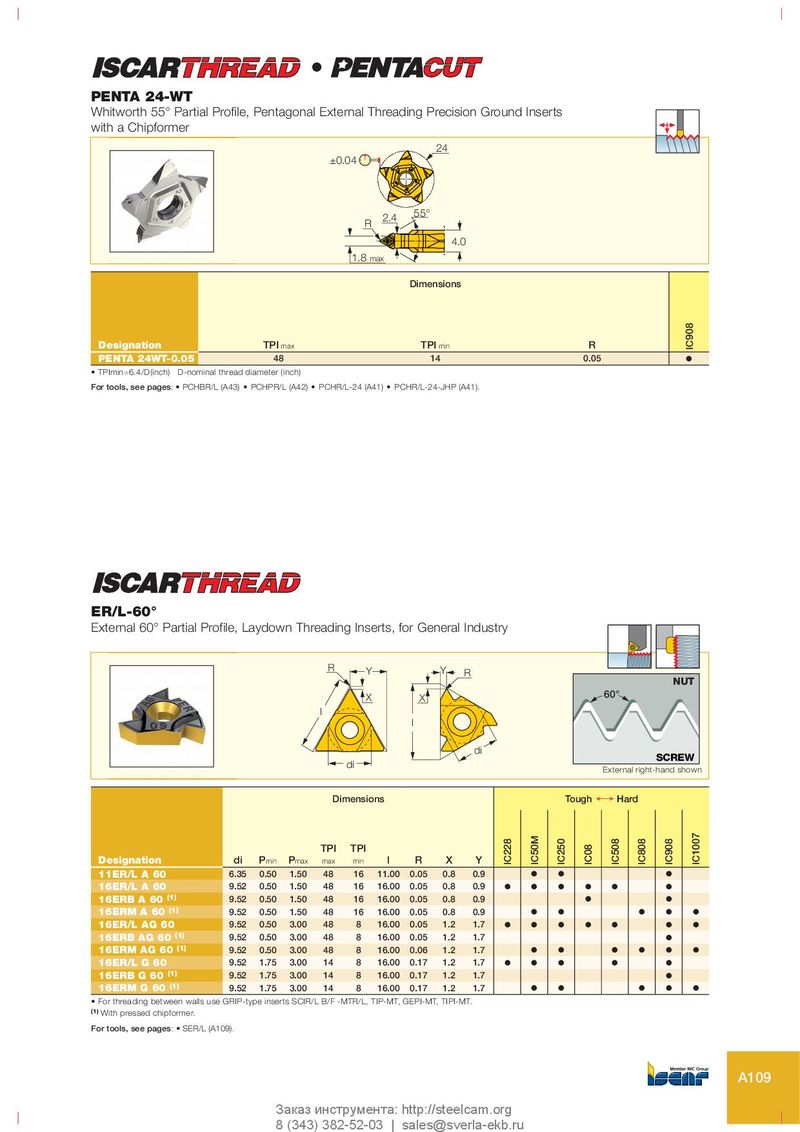

 O

PENTA 24-WT
Whitworth 55° Partial Profile, Pentagonal External Threading Precision Ground Inserts
with a Chipformer
24
±0.04


2.4 55°
R
4.0
1.8 max
Dimensions


IC908
Designation TPI max TPI min R
PENTA 24WT-0.05 48 14 0.05 O
• TPImin=6.4/D(inch) D-nominal thread diameter (inch)
For tools, see pages: • PCHBR/L (A43) • PCHPR/L (A42) • PCHR/L-24 (A41) • PCHR/L-24-JHP (A41).


ER/L-60°
External 60° Partial Profile, Laydown Threading Inserts, for General Industry

R Y Y R
NUT
X X 60°
l
l
di
SCREW
di External right-hand shown

Dimensions Tough ¥ Hard
IC1007
IC50M
IC228


IC250


IC508
IC808
IC908
IC08


TPI TPI
Designation di Pmin Pmax max min l R X Y
11ER/L A 60 6.35 0.50 1.50 48 16 11.00 0.05 0.8 0.9 O O O
16ER/L A 60 9.52 0.50 1.50 48 16 16.00 0.05 0.8 0.9 O O O O O O
16ERB A 60 (1) 9.52 0.50 1.50 48 16 16.00 0.05 0.8 0.9 O O
16ERM A 60 (1) 9.52 0.50 1.50 48 16 16.00 0.05 0.8 0.9 O O O O O
16ER/L AG 60 9.52 0.50 3.00 48 8 16.00 0.05 1.2 1.7 O O O O O O O
16ERB AG 60 (1) 9.52 0.50 3.00 48 8 16.00 0.05 1.2 1.7 O
16ERM AG 60 (1) 9.52 0.50 3.00 48 8 16.00 0.06 1.2 1.7 O O O O O O
16ER/L G 60 9.52 1.75 3.00 14 8 16.00 0.17 1.2 1.7 O O O O O
16ERB G 60 (1) 9.52 1.75 3.00 14 8 16.00 0.17 1.2 1.7 O
16ERM G 60 (1) 9.52 1.75 3.00 14 8 16.00 0.17 1.2 1.7 O O O O O
• For threading between walls use GRIP-type inserts SCIR/L B/F -MTR/L, TIP-MT, GEPI-MT, TIPI-MT.
(1) With pressed chipformer.

For tools, see pages: • SER/L (A109).


A109
