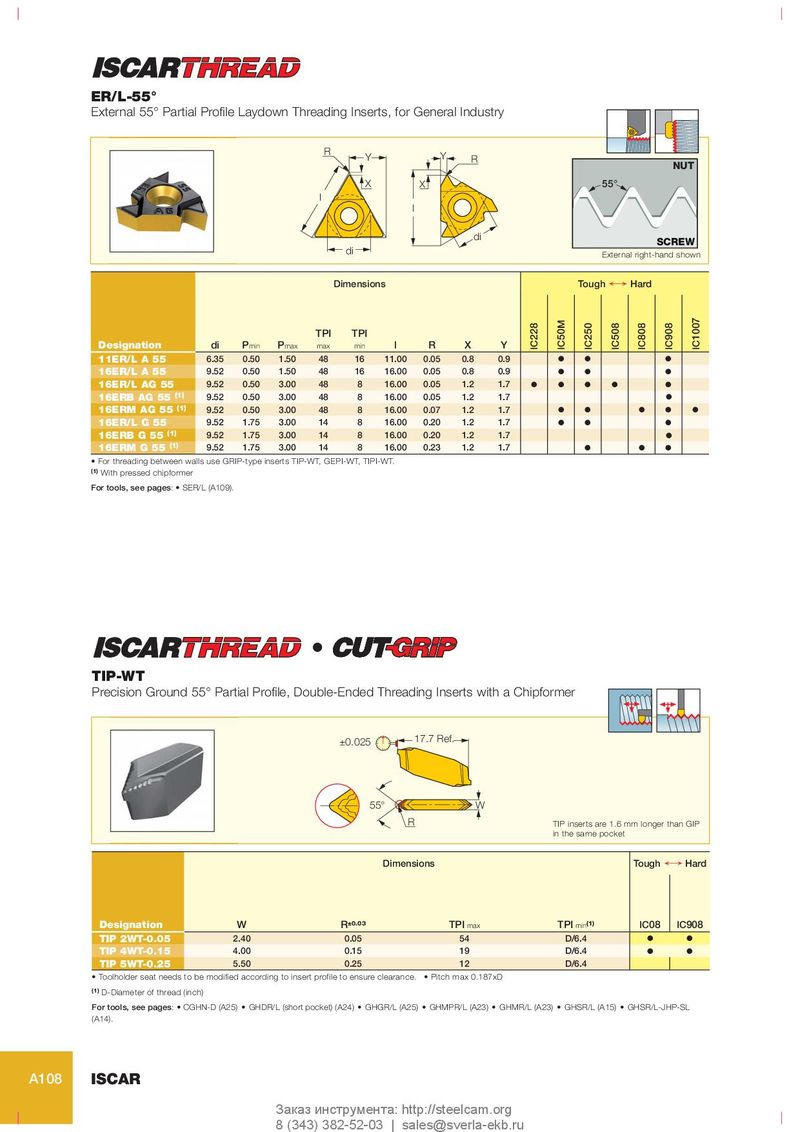

Каталог Iscar инструмент для мелкоразмерной обработки - страница 126

ER/L-55°
External 55° Partial Profile Laydown Threading Inserts, for General Industry
R Y
Y R
NUT
X X 55°
l
l
di
SCREW
di External right-hand shown

Dimensions Tough ¥ Hard


IC1007
IC50M
IC228


IC250
IC508
IC808
IC908
TPI TPI
Designation di Pmin Pmax max min l R X Y
11ER/L A 55 6.35 0.50 1.50 48 16 11.00 0.05 0.8 0.9 O O O
16ER/L A 55 9.52 0.50 1.50 48 16 16.00 0.05 0.8 0.9 O O O
16ER/L AG 55 9.52 0.50 3.00 48 8 16.00 0.05 1.2 1.7 O O O O O
16ERB AG 55 (1) 9.52 0.50 3.00 48 8 16.00 0.05 1.2 1.7 O
16ERM AG 55 (1) 9.52 0.50 3.00 48 8 16.00 0.07 1.2 1.7 O O O O O
16ER/L G 55 9.52 1.75 3.00 14 8 16.00 0.20 1.2 1.7 O O O
16ERB G 55 (1) 9.52 1.75 3.00 14 8 16.00 0.20 1.2 1.7 O
16ERM G 55 (1) 9.52 1.75 3.00 14 8 16.00 0.23 1.2 1.7 O O O
• For threading between walls use GRIP-type inserts TIP-WT, GEPI-WT, TIPI-WT.
(1) With pressed chipformer

For tools, see pages: • SER/L (A109).


 O

TIP-WT
Precision Ground 55° Partial Profile, Double-Ended Threading Inserts with a Chipformer

±0.025 17.7 Ref.


55° W
R TIP inserts are 1.6 mm longer than GIP
in the same pocket

Dimensions Tough ¥ Hard


Designation W R±0.03 TPI max TPI min(1) IC08 IC908
TIP 2WT-0.05 2.40 0.05 54 D/6.4 O O
TIP 4WT-0.15 4.00 0.15 19 D/6.4 O O
TIP 5WT-0.25 5.50 0.25 12 D/6.4
• Toolholder seat needs to be modified according to insert profile to ensure clearance. • Pitch max 0.187xD
(1) D-Diameter of thread (inch)

For tools, see pages: • CGHN-D (A25) • GHDR/L (short pocket) (A24) • GHGR/L (A25) • GHMPR/L (A23) • GHMR/L (A23) • GHSR/L (A15) • GHSR/L-JHP-SL
(A14).


A108 ISCAR
