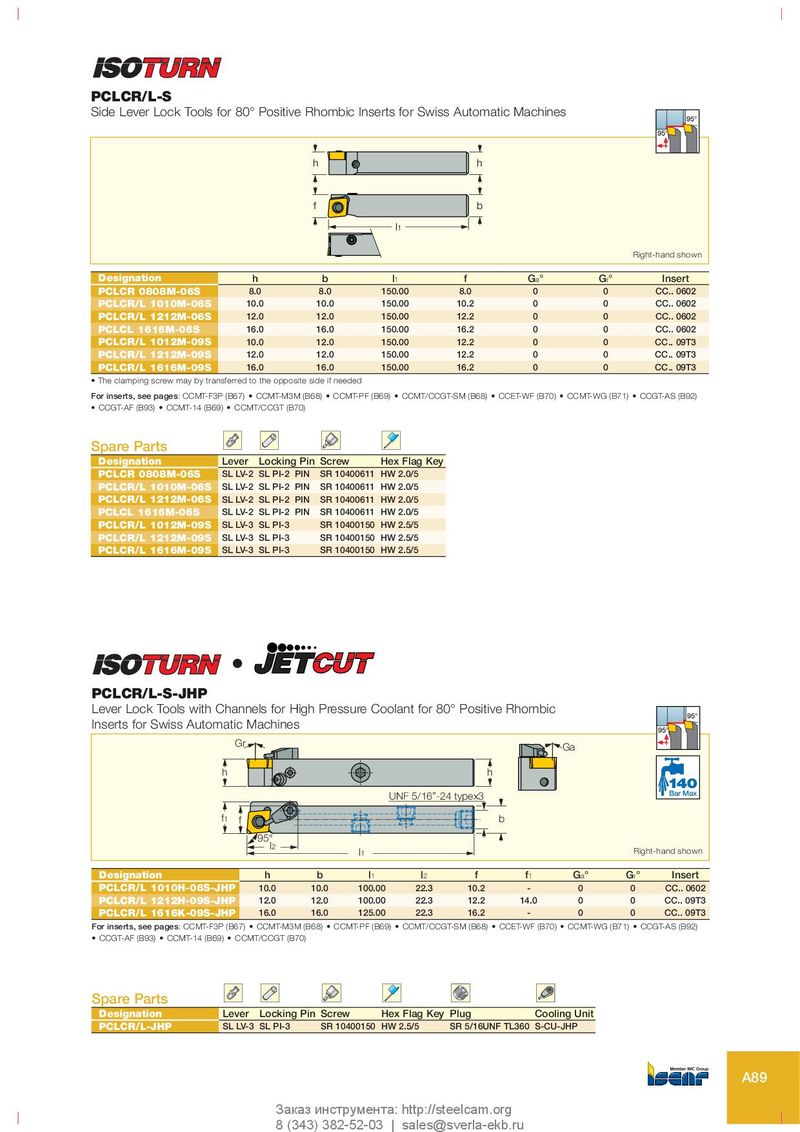

PCLCR/L-S
Side Lever Lock Tools for 80° Positive Rhombic Inserts for Swiss Automatic Machines
h h
95° 95°
f b l1
Right-hand shown
| Designation | h | b | l1 | f | Ga° | Gr° | Insert |
| PCLCR 0808M-06S | 8.0 | 8.0 | 150.00 | 8.0 | 0 | 0 | CC.. 0602 |
| PCLCR/L 1010M-06S | 10.0 | 10.0 | 150.00 | 10.2 | 0 | 0 | CC.. 0602 |
| PCLCR/L 1212M-06S | 12.0 | 12.0 | 150.00 | 12.2 | 0 | 0 | CC.. 0602 |
| PCLCL 1616M-06S | 16.0 | 16.0 | 150.00 | 16.2 | 0 | 0 | CC.. 0602 |
| PCLCR/L 1012M-09S | 10.0 | 12.0 | 150.00 | 12.2 | 0 | 0 | CC.. 09T3 |
| PCLCR/L 1212M-09S | 12.0 | 12.0 | 150.00 | 12.2 | 0 | 0 | CC.. 09T3 |
| PCLCR/L 1616M-09S | 16.0 | 16.0 | 150.00 | 16.2 | 0 | 0 | CC.. 09T3 |
- The clamping screw may by transferred to the opposite side if needed
For inserts, see pages: CCMT-F3P (B67) CCMT-M3M (B68) CCMT-PF (B69) CCMT/CCGT-SM (B68) CCET-WF (B70) CCMT-WG (B71) CCGT-AS (B92)
- CCGT-AF (B93)
- CCMT-14 (B69)
- CCMT/CCGT (B70)
Spare Parts
| Designation | Lever | LockingPin | Screw | Hex FlagKey |
| PCLCR 0808M-06S | SL LV-2 | SL PI-2 PIN | SR 10400611 | HW 2.0/5 |
| PCLCR/L 1010M-06S | SL LV-2 | SL PI-2 PIN | SR 10400611 | HW 2.0/5 |
| PCLCR/L 1212M-06S | SL LV-2 | SL PI-2 PIN | SR 10400611 | HW 2.0/5 |
| PCLCL 1616M-06S | SL LV-2 | SL PI-2 PIN | SR 10400611 | HW 2.0/5 |
| PCLCR/L 1012M-09S | SL LV-3 | SL PI-3 | SR 10400150 | HW 2.5/5 |
| PCLCR/L 1212M-09S | SL LV-3 | SL PI-3 | SR 10400150 | HW 2.5/5 |
| PCLCR/L 1616M-09S | SL LV-3 | SL PI-3 | SR 10400150 | HW 2.5/5 |
O
PCLCR/L-S-JHP
Lever Lock Tools with Channels for High Pressure Coolant for 80° Positive Rhombic
95°
Inserts for Swiss Automatic Machines
95° Gr Ga
h h UNF 5/16”-24 typex3 Bar Max
| f1 | f | b | ||||
| 95° | ||||||
| l2 | ||||||
| l1 | Right-hand shown |
| Designation | h | b | l1 | l2 | f | f1 | Ga° | Gr° | Insert |
| PCLCR/L 1010H-06S-JHP | 10.0 | 10.0 | 100.00 | 22.3 | 10.2 | - | 0 | 0 | CC.. 0602 |
| PCLCR/L 1212H-09S-JHP | 12.0 | 12.0 | 100.00 | 22.3 | 12.2 | 14.0 | 0 | 0 | CC.. 09T3 |
| PCLCR/L 1616K-09S-JHP | 16.0 | 16.0 | 125.00 | 22.3 | 16.2 | - | 0 | 0 | CC.. 09T3 |
For inserts, see pages: CCMT-F3P (B67) CCMT-M3M (B68) CCMT-PF (B69) CCMT/CCGT-SM (B68) CCET-WF (B70) CCMT-WG (B71) CCGT-AS (B92)
- CCGT-AF (B93)
- CCMT-14 (B69)
- CCMT/CCGT (B70)
Spare Parts
| Designation | Lever | Locking Pin Screw | Hex Flag Key Plug | Cooling Unit | ||
| PCLCR/L-JHP | SL LV-3 SL PI-3 | SR 10400150 HW 2.5/5 | SR 5/16UNF TL360 S-CU-JHP |
