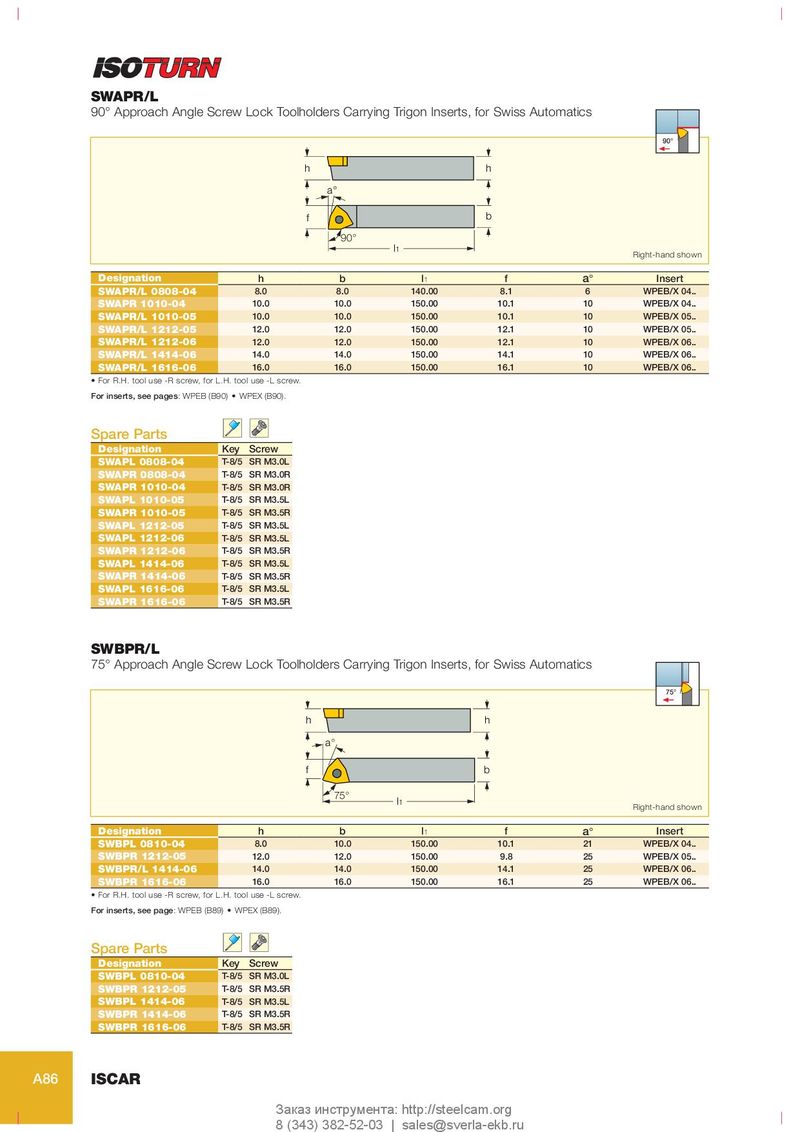

SWAPR/L
90° Approach Angle Screw Lock Toolholders Carrying Trigon Inserts, for Swiss Automatics
| 90° | ||||||
| h | h | |||||
| f a° 90° | l1 | b | Right-hand shown | |||
| Designation | h | b | l1 | f | a° | Insert |
| SWAPR/L 0808-04 | 8.0 | 8.0 | 140.00 | 8.1 | 6 | WPEB/X 04.. |
| SWAPR 1010-04 | 10.0 | 10.0 | 150.00 | 10.1 | 10 | WPEB/X 04.. |
| SWAPR/L 1010-05 | 10.0 | 10.0 | 150.00 | 10.1 | 10 | WPEB/X 05.. |
| SWAPR/L 1212-05 | 12.0 | 12.0 | 150.00 | 12.1 | 10 | WPEB/X 05.. |
| SWAPR/L 1212-06 | 12.0 | 12.0 | 150.00 | 12.1 | 10 | WPEB/X 06.. |
| SWAPR/L 1414-06 | 14.0 | 14.0 | 150.00 | 14.1 | 10 | WPEB/X 06.. |
| SWAPR/L 1616-06 | 16.0 | 16.0 | 150.00 | 16.1 | 10 | WPEB/X 06.. |
- For R.H. tool use -R screw, for L.H. tool use -L screw.
For inserts, see pages: WPEB (B90) WPEX (B90).
Spare Parts
| Designation | Key | Screw |
| SWAPL 0808-04 | T-8/5 | SR M3.0L |
| SWAPR 0808-04 | T-8/5 | SR M3.0R |
| SWAPR 1010-04 | T-8/5 | SR M3.0R |
| SWAPL 1010-05 | T-8/5 | SR M3.5L |
| SWAPR 1010-05 | T-8/5 | SR M3.5R |
| SWAPL 1212-05 | T-8/5 | SR M3.5L |
| SWAPL 1212-06 | T-8/5 | SR M3.5L |
| SWAPR 1212-06 | T-8/5 | SR M3.5R |
| SWAPL 1414-06 | T-8/5 | SR M3.5L |
| SWAPR 1414-06 | T-8/5 | SR M3.5R |
| SWAPL 1616-06 | T-8/5 | SR M3.5L |
| SWAPR 1616-06 | T-8/5 | SR M3.5R |
SWBPR/L
75° Approach Angle Screw Lock Toolholders Carrying Trigon Inserts, for Swiss Automatics
75°
h h a°
f b
75° l1 Right-hand shown
| Designation | h | b | l1 | f | a° | Insert | |
| SWBPL 0810-04 | 8.0 | 10.0 | 150.00 | 10.1 | 21 | WPEB/X 04.. | |
| SWBPR 1212-05 | 12.0 | 12.0 | 150.00 | 9.8 | 25 | WPEB/X 05.. | |
| SWBPR/L 1414-06 | 14.0 | 14.0 | 150.00 | 14.1 | 25 | WPEB/X 06.. | |
| SWBPR 1616-06 | 16.0 | 16.0 | 150.00 | 16.1 | 25 | WPEB/X 06.. |
- For R.H. tool use -R screw, for L.H. tool use -L screw.
For inserts, see page: WPEB (B89) WPEX (B89).
Spare Parts
| Designation | Key | Screw |
| SWBPL 0810-04 | T-8/5 | SR M3.0L |
| SWBPR 1212-05 | T-8/5 | SR M3.5R |
| SWBPL 1414-06 | T-8/5 | SR M3.5L |
| SWBPR 1414-06 | T-8/5 | SR M3.5R |
| SWBPR 1616-06 | T-8/5 | SR M3.5R |
