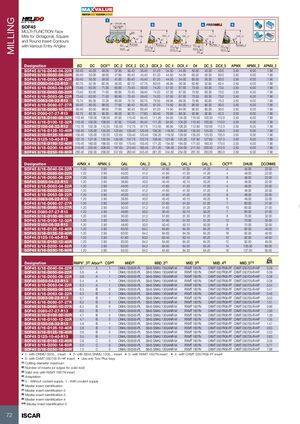

Инструменты MAX-OUT Iscar 2026 - страница 72

Предыдущая страница Следующая страница

Навигация

ФРЕЗЕРОВАНИЕ

Многофункциональные торцевые фрезы SOF45 с геометрией вставок в форме восьмиугольника, квадрата и круга с различными углами входа

Обозначение BD DC DCX(1) DC_2 DCX_2 DC_3 DCX_3 DC_4 DCX_4 D4 DC_5 DCX_5 APMX APMX_2 APMX_3
SOF45 8/16-D040-04-22R 50.40 40.00 48.00 37.65 50.40 35.40 51.20 34.50 44.00 50.50 40.30 50.0 3.50 6.00 7.90
SOF45 8/16-D050-04-22R 60.40 50.00 58.00 47.65 60.40 45.40 61.20 44.50 54.00 60.50 50.30 60.0 3.50 6.00 7.90
SOF45 8/16-D050-06-22R 60.40 50.00 58.00 47.65 60.40 45.40 61.20 44.50 54.00 60.50 50.30 60.0 3.50 6.00 7.90
SOF45 D050-04-22-R13 62.75 52.35 60.35 50.00 62.75 47.75 63.55 46.95 56.35 62.90 52.65 62.4 3.50 6.00 7.90
SOF45 8/16-D063-04-22R 73.40 63.00 71.00 60.65 73.40 58.40 74.20 57.50 67.00 73.50 63.30 73.0 3.50 6.00 7.90
SOF45 8/16-D063-06-22R 73.40 63.00 71.00 60.65 73.40 58.40 74.20 57.50 67.00 73.50 63.30 73.0 3.50 6.00 7.90
SOF45 8/16-D063-08-22R 73.40 63.00 71.00 60.65 73.40 58.40 74.20 57.50 67.00 73.50 63.30 73.0 3.50 6.00 7.90
SOF45 D063-06-22-R13 75.75 65.35 72.35 63.00 75.75 60.75 76.55 59.95 69.35 75.90 63.65 75.3 3.50 6.00 7.90
SOF45 8/16-D080-07-27R 90.40 80.00 88.00 77.65 90.40 65.40 91.20 74.50 84.00 90.50 80.30 90.0 3.50 6.00 7.90
SOF45 8/16-D080-10-27R 90.40 80.00 88.00 77.65 90.40 65.40 91.20 74.50 84.00 90.50 80.30 90.0 3.50 6.00 7.90
SOF45 D080-07-27-R13 92.75 82.35 90.35 80.00 92.75 77.60 93.40 76.95 86.35 92.90 82.65 92.3 3.50 6.00 7.90
SOF45 8/16-D100-08-32R 110.40 100.00 108.00 97.65 110.40 95.40 111.20 94.50 104.00 110.50 100.30 110.0 3.50 6.00 7.90
SOF45 8/16-D100-12-32R 110.40 100.00 108.00 97.65 110.40 95.40 111.20 94.50 104.00 110.50 100.30 110.0 3.50 6.00 7.90
SOF45 D100-08-32-R13 112.75 102.35 110.35 100.00 112.75 97.75 113.55 96.95 106.35 112.90 102.65 112.3 3.50 6.00 7.90
SOF45 8/16-D125-10-40R 135.40 125.00 133.00 122.65 135.40 120.40 136.20 119.50 129.00 135.50 125.30 135.0 3.50 6.00 7.90
SOF45 8/16-D125-16-40R 135.40 125.00 133.00 122.65 135.40 120.40 136.20 119.50 129.00 135.50 125.30 135.0 3.50 6.00 7.90
SOF45 D125-10-40-R13 137.75 127.35 135.35 125.00 137.75 122.75 138.55 121.95 131.35 137.90 127.65 137.3 3.50 6.00 7.90
SOF45 8/16-D160-12-40R 170.40 160.00 168.00 157.65 170.40 155.40 171.20 154.50 164.00 171.50 160.30 170.0 3.50 6.00 7.90
SOF45 8/16-D200-14-60R 210.40 200.00 208.00 197.65 210.40 195.40 211.20 194.50 204.00 211.50 200.50 210.0 3.50 6.00 7.90
SOF45 8/16-D250-16-60R 260.40 250.00 258.00 247.65 260.40 245.40 261.20 244.50 254.00 261.50 250.30 260.0 3.50 6.00 7.90
Обозначение APMX_4 APMX_5 OAL OAL_2 OAL_3 OAL_4 OAL_5 CICT(2) DHUB DCONMS
SOF45 8/16-D040-04-22R 1.20 2.90 40.00 41.2 41.60 41.30 41.20 4 45.00 22.00
SOF45 8/16-D050-04-22R 1.20 2.90 40.00 41.2 41.60 41.30 41.20 4 48.00 22.00
SOF45 8/16-D050-06-22R 1.20 2.90 40.00 41.2 41.60 41.30 41.20 6 48.00 22.00
SOF45 D050-04-22-R13 1.20 2.90 38.80 40.0 40.40 40.10 40.20 4 48.00 22.00
SOF45 8/16-D063-04-22R 1.20 2.90 40.00 41.2 41.60 41.30 41.20 4 48.00 22.00
SOF45 8/16-D063-06-22R 1.20 2.90 40.00 41.2 41.60 41.30 41.20 6 48.00 22.00
SOF45 8/16-D063-08-22R 1.20 2.90 40.00 41.2 41.60 41.30 41.20 8 48.00 22.00
SOF45 D063-06-22-R13 1.20 2.90 38.80 40.0 40.40 40.10 40.20 6 48.00 22.00
SOF45 8/16-D080-07-27R 1.20 2.90 50.00 51.2 51.60 51.30 51.20 7 60.00 27.00
SOF45 8/16-D080-10-27R 1.20 2.90 50.00 51.2 51.60 51.30 51.20 10 60.00 27.00
SOF45 D080-07-27-R13 1.20 2.90 48.80 50.0 50.40 50.10 50.20 7 60.00 27.00
SOF45 8/16-D100-08-32R 1.20 2.90 50.00 51.2 51.60 51.30 51.20 8 70.00 32.00
SOF45 8/16-D100-12-32R 1.20 2.90 50.00 51.2 51.60 51.30 51.20 12 70.00 32.00
SOF45 D100-08-32-R13 1.20 2.90 48.80 50.0 50.40 50.10 50.00 8 70.00 32.00
SOF45 8/16-D125-10-40R 1.20 2.90 63.00 64.2 64.60 64.30 64.20 10 82.00 40.00
SOF45 8/16-D125-16-40R 1.20 2.90 63.00 64.2 64.60 64.30 64.20 16 82.00 40.00
SOF45 D125-10-40-R13 1.20 2.90 61.80 63.0 63.40 63.10 63.20 10 82.00 40.00
SOF45 8/16-D160-12-40R 1.20 2.90 63.00 64.2 64.60 64.30 64.20 12 92.00 40.00
SOF45 8/16-D200-14-60R 1.20 2.90 63.00 64.2 64.60 64.30 64.20 14 135.00 60.00
SOF45 8/16-D250-16-60R 1.20 2.90 63.00 64.2 64.60 64.30 64.20 16 137.00 60.00
Обозначение RMPX°_3(3) Arbor(4) CSP(5) MIID(6) MIID_2(7) MIID_3(8) MIID_4(9) MIID_5(10) кг
SOF45 8/16-D040-04-22R 3.7 A 1 ONHU 050500-PL S845 SNHU 1305ANR-M RXMT 1607N OXMT 0507R08-FF OXMT 050705-R-HP 0.29
SOF45 8/16-D050-04-22R 5.6 A 1 ONHU 050500-PL S845 SNHU 1305ANR-M RXMT 1607N OXMT 0507R08-FF OXMT 050705-R-HP 0.39
SOF45 8/16-D050-06-22R 5.6 A 1 ONHU 050500-PL S845 SNHU 1305ANR-M RXMT 1607N OXMT 0507R08-FF OXMT 050705-R-HP 0.38
SOF45 D050-04-22-R13 5.4 A 1 ONHU 050500-PL S845 SNHU 1305ANR-M RXMT 1607N OXMT 0507R08-FF OXMT 050705-R-HP 0.38
SOF45 8/16-D063-04-22R 6.3 A 1 ONHU 050500-PL S845 SNHU 1305ANR-M RXMT 1607N OXMT 0507R08-FF OXMT 050705-R-HP 0.54
SOF45 8/16-D063-06-22R 6.3 B 0 ONHU 050500-PL S845 SNHU 1305ANR-M RXMT 1607N OXMT 0507R08-FF OXMT 050705-R-HP 0.47
SOF45 8/16-D063-08-22R 6.3 B 0 ONHU 050500-PL S845 SNHU 1305ANR-M RXMT 1607N OXMT 0507R08-FF OXMT 050705-R-HP 0.46
SOF45 D063-06-22-R13 5.7 B 1 ONHU 050500-PL S845 SNHU 1305ANR-M RXMT 1607N OXMT 0507R08-FF OXMT 050705-R-HP 0.50
SOF45 8/16-D080-07-27R 6.2 B 0 ONHU 050500-PL S845 SNHU 1305ANR-M RXMT 1607N OXMT 0507R08-FF OXMT 050705-R-HP 1.01
SOF45 8/16-D080-10-27R 6.2 B 0 ONHU 050500-PL S845 SNHU 1305ANR-M RXMT 1607N OXMT 0507R08-FF OXMT 050705-R-HP 0.96
SOF45 D080-07-27-R13 6.0 B 1 ONHU 050500-PL S845 SNHU 1305ANR-M RXMT 1607N OXMT 0507R08-FF OXMT 050705-R-HP 1.00
SOF45 8/16-D100-08-32R 4.7 B 0 ONHU 050500-PL S845 SNHU 1305ANR-M RXMT 1607N OXMT 0507R08-FF OXMT 050705-R-HP 1.39
SOF45 8/16-D100-12-32R 4.7 B 0 ONHU 050500-PL S845 SNHU 1305ANR-M RXMT 1607N OXMT 0507R08-FF OXMT 050705-R-HP 1.35
SOF45 D100-08-32-R13 4.6 B 1 ONHU 050500-PL S845 SNHU 1305ANR-M RXMT 1607N OXMT 0507R08-FF OXMT 050705-R-HP 1.47
SOF45 8/16-D125-10-40R 3.6 B 0 ONHU 050500-PL S845 SNHU 1305ANR-M RXMT 1607N OXMT 0507R08-FF OXMT 050705-R-HP 2.63
SOF45 8/16-D125-16-40R 3.6 B 0 ONHU 050500-PL S845 SNHU 1305ANR-M RXMT 1607N OXMT 0507R08-FF OXMT 050705-R-HP 2.53
SOF45 D125-10-40-R13 3.5 B 1 ONHU 050500-PL S845 SNHU 1305ANR-M RXMT 1607N OXMT 0507R08-FF OXMT 050705-R-HP 2.63
SOF45 8/16-D160-12-40R 2.6 C 0 ONHU 050500-PL S845 SNHU 1305ANR-M RXMT 1607N OXMT 0507R08-FF OXMT 050705-R-HP 3.35
SOF45 8/16-D200-14-60R 2.0 C 0 ONHU 050500-PL S845 SNHU 1305ANR-M RXMT 1607N OXMT 0507R08-FF OXMT 050705-R-HP 5.77
SOF45 8/16-D250-16-60R 1.5 C 0 ONHU 050500-PL S845 SNHU 1305ANR-M RXMT 1607N OXMT 0507R08-FF OXMT 050705-R-HP 7.98
  • 1 - с вставкой ONMU 0505...
  • 2 - с вставкой S845 SNMU 1305...
  • 3 - с вставкой RXMT 1607N
  • 4 - с вставкой OXMT 0507R08-FF
  • 5 - с вставкой OXMT 050705-R-HP
  • Используйте только ключи Torx Plus

(1) Максимальный диаметр резания
(2) Количество вставок (или кромок для монолитного инструмента)
(3) Действительно только с вставкой RXMT 1607N
(4) Присоединение
(5) 0 - без подачи СОЖ, 1 - с подачей СОЖ
(6) Идентификация основной вставки
(7) Идентификация основной вставки 2
(8) Идентификация основной вставки 3
(9) Идентификация основной вставки 4
(10) Идентификация основной вставки 5
