ОБРАБОТКА КАНАВОК И ОТРЕЗКА

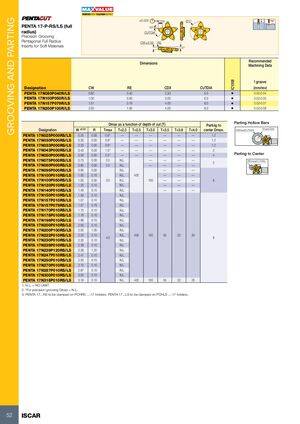

PENTA 17-P-RS/LS (полный радиус)
Пентагональные пластины с полным радиусом для прецизионной обработки канавок в мягких материалах
| Обозначение | CW | RE | CDX | CUTDIA | IC1008 | f groove (мм/об) |
|---|---|---|---|---|---|---|
| PENTA 17N080P040R/LS | 0.80 | 0.40 | 2.50 | 5.0 | • | 0.02-0.04 |
| PENTA 17N100P050R/LS | 1.00 | 0.50 | 3.00 | 6.0 | • | 0.02-0.05 |
| PENTA 17N157P079R/LS | 1.57 | 0.79 | 4.00 | 8.0 | • | 0.02-0.07 |
| PENTA 17N200P100R/LS | 2.00 | 1.00 | 4.00 | 8.0 | • | 0.02-0.08 |
D max как функция глубины резания (T)
| Обозначение | W ±0.02 | R | Tmax | T<2.3 | T<2.5 | T<3.0 | T<3.5 | T<3.8 | T<4.0 | ØDmax(CUTDIA) |
|---|---|---|---|---|---|---|---|---|---|---|
| PENTA 17N025P000RS/LS | 0.25 | 0.00 | 0.6* | --- | --- | --- | --- | --- | --- | 1.2 |
| PENTA 17N030P000RS/LS | 0.30 | 0.00 | 0.6* | --- | --- | --- | --- | --- | --- | 1.2 |
| PENTA 17N033P000RS/LS | 0.33 | 0.00 | 0.6* | --- | --- | --- | --- | --- | --- | 1.2 |
| PENTA 17N043P000RS/LS | 0.43 | 0.00 | 1.0* | --- | --- | --- | --- | --- | --- | 2 |
| PENTA 17N050P000RS/LS | 0.50 | 0.00 | 2.0* | --- | --- | --- | --- | --- | --- | 4 |
| PENTA 17N075P000RS/LS | 0.75 | 0.00 | 2.5 | N.L. | --- | --- | --- | --- | --- | 5 |
| PENTA 17N080P000RS/LS | 0.80 | 0.00 | 2.5 | N.L. | --- | --- | --- | --- | --- | |
| PENTA 17N095P000RS/LS | 0.95 | 0.00 | N.L. | --- | --- | --- | --- | --- | ||
| PENTA 17N100P010RS/LS | 1.00 | 0.10 | N.L. | 400 | --- | --- | --- | --- | ||
| PENTA 17N100P050RS/LS | 1.00 | 0.50 | 3.0 | N.L. | --- | 100 | --- | --- | --- | 6 |
| PENTA 17N120P010RS/LS | 1.20 | 0.10 | N.L. | --- | --- | --- | --- | --- | ||
| PENTA 17N140P010RS/LS | 1.40 | 0.10 | N.L. | --- | --- | --- | --- | --- | ||
| PENTA 17N150P010RS/LS | 1.50 | 0.10 | N.L. | --- | --- | --- | --- | --- | ||
| PENTA 17N157P010RS/LS | 1.57 | 0.10 | N.L. | --- | --- | --- | --- | --- | ||
| PENTA 17N157P079RS/LS | 1.57 | 0.79 | N.L. | --- | --- | --- | --- | --- | ||
| PENTA 17N170P010RS/LS | 1.70 | 0.10 | N.L. | --- | --- | --- | --- | --- | ||
| PENTA 17N178P010RS/LS | 1.78 | 0.10 | N.L. | --- | --- | --- | --- | --- | ||
| PENTA 17N196P010RS/LS | 1.96 | 0.10 | N.L. | --- | --- | --- | --- | --- | ||
| PENTA 17N200P010RS/LS | 2.00 | 0.10 | N.L. | --- | --- | --- | --- | --- | ||
| PENTA 17N200P100RS/LS | 2.00 | 1.00 | N.L. | --- | --- | --- | --- | --- | ||
| PENTA 17N222P010RS/LS | 2.22 | 0.10 | N.L. | 400 | 100 | 55 | 32 | 20 | 8 | |
| PENTA 17N230P010RS/LS | 2.30 | 0.10 | N.L. | --- | --- | --- | --- | --- | ||
| PENTA 17N239P010RS/LS | 2.39 | 0.10 | N.L. | --- | --- | --- | --- | --- | ||
| PENTA 17N239P120RS/LS | 2.39 | 1.20 | N.L. | --- | --- | --- | --- | --- | ||
| PENTA 17N247P010RS/LS | 2.47 | 0.10 | N.L. | --- | --- | --- | --- | --- | ||
| PENTA 17N250P010RS/LS | 2.50 | 0.10 | N.L. | --- | --- | --- | --- | --- | ||
| PENTA 17N270P010RS/LS | 2.70 | 0.10 | N.L. | --- | --- | --- | --- | --- | ||
| PENTA 17N287P010RS/LS | 2.87 | 0.10 | N.L. | --- | --- | --- | --- | --- | ||
| PENTA 17N300P010RS/LS | 3.00 | 0.10 | N.L. | --- | --- | --- | --- | --- | ||
| PENTA 17N318P010RS/LS | 3.18 | 0.10 | N.L. | 400 | 100 | 55 | 32 | 25 |
Примечания:
- N.L. = БЕЗ ОГРАНИЧЕНИЙ
- *Для прецизионной обработки канавок Dmax = БЕЗ ОГРАНИЧЕНИЙ
- PENTA 17...RS устанавливаются на державки PCHRS ...-17, PENTA 17...LS устанавливаются на державки PCHLS ...-17
