Изготовление отверстий
Минимальные затраты, максимальный выпуск

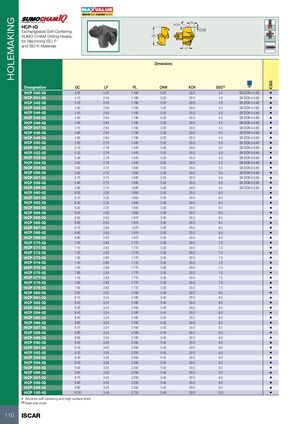

HCP-IQ
Сменные самоцентрирующиеся бурильные головки SUMO-CHAM для обработки материалов ISO P и ISO K
| Обозначение | DC | LF | PL | CHW | KCH | SSC(1) |
|---|---|---|---|---|---|---|
| HCP 040-IQ | 4.00 | 2.40 | 1.160 | 0.20 | 30.0 | 4.0 |
| HCP 041-IQ | 4.10 | 2.40 | 1.160 | 0.20 | 30.0 | 4.0 |
| HCP 042-IQ | 4.20 | 2.40 | 1.160 | 0.20 | 30.0 | 4.0 |
| HCP 043-IQ | 4.30 | 2.40 | 1.160 | 0.20 | 30.0 | 4.0 |
| HCP 044-IQ | 4.40 | 2.40 | 1.160 | 0.20 | 30.0 | 4.0 |
| HCP 045-IQ | 4.50 | 2.64 | 1.190 | 0.20 | 30.0 | 4.5 |
| HCP 046-IQ | 4.60 | 2.64 | 1.190 | 0.20 | 30.0 | 4.5 |
| HCP 047-IQ | 4.70 | 2.64 | 1.190 | 0.20 | 30.0 | 4.5 |
| HCP 048-IQ | 4.80 | 2.64 | 1.190 | 0.20 | 30.0 | 4.5 |
| HCP 049-IQ | 4.90 | 2.64 | 1.190 | 0.20 | 30.0 | 4.5 |
| HCP 050-IQ | 5.00 | 2.79 | 1.440 | 0.25 | 30.0 | 5.0 |
| HCP 051-IQ | 5.10 | 2.79 | 1.440 | 0.25 | 30.0 | 5.0 |
| HCP 052-IQ | 5.20 | 2.79 | 1.440 | 0.25 | 30.0 | 5.0 |
| HCP 053-IQ | 5.30 | 2.79 | 1.440 | 0.25 | 30.0 | 5.0 |
| HCP 054-IQ | 5.40 | 2.79 | 1.440 | 0.25 | 30.0 | 5.0 |
| HCP 055-IQ | 5.50 | 2.75 | 1.630 | 0.25 | 30.0 | 5.5 |
| HCP 056-IQ | 5.60 | 2.75 | 1.630 | 0.25 | 30.0 | 5.5 |
| HCP 057-IQ | 5.70 | 2.75 | 1.630 | 0.25 | 30.0 | 5.5 |
| HCP 058-IQ | 5.80 | 2.75 | 1.630 | 0.25 | 30.0 | 5.5 |
| HCP 059-IQ | 5.90 | 2.75 | 1.630 | 0.25 | 30.0 | 5.5 |
| HCP 060-IQ | 6.00 | 2.35 | 1.650 | 0.30 | 30.0 | 6.0 |
| HCP 061-IQ | 6.10 | 2.35 | 1.650 | 0.30 | 30.0 | 6.0 |
| HCP 062-IQ | 6.20 | 2.35 | 1.650 | 0.30 | 30.0 | 6.0 |
| HCP 063-IQ | 6.30 | 2.35 | 1.650 | 0.30 | 30.0 | 6.0 |
| HCP 064-IQ | 6.40 | 2.35 | 1.650 | 0.30 | 30.0 | 6.0 |
| HCP 065-IQ | 6.50 | 2.63 | 1.670 | 0.30 | 30.0 | 6.5 |
| HCP 066-IQ | 6.60 | 2.63 | 1.670 | 0.30 | 30.0 | 6.5 |
| HCP 067-IQ | 6.70 | 2.63 | 1.670 | 0.30 | 30.0 | 6.5 |
| HCP 068-IQ | 6.80 | 2.63 | 1.670 | 0.30 | 30.0 | 6.5 |
| HCP 069-IQ | 6.90 | 2.63 | 1.670 | 0.30 | 30.0 | 6.5 |
| HCP 070-IQ | 7.00 | 2.83 | 1.770 | 0.35 | 30.0 | 7.0 |
| HCP 071-IQ | 7.10 | 2.83 | 1.770 | 0.35 | 30.0 | 7.0 |
| HCP 072-IQ | 7.20 | 2.83 | 1.770 | 0.35 | 30.0 | 7.0 |
| HCP 073-IQ | 7.30 | 2.83 | 1.770 | 0.35 | 30.0 | 7.0 |
| HCP 074-IQ | 7.40 | 2.83 | 1.770 | 0.35 | 30.0 | 7.0 |
| HCP 075-IQ | 7.50 | 2.83 | 1.770 | 0.35 | 30.0 | 7.0 |
| HCP 076-IQ | 7.60 | 2.83 | 1.770 | 0.35 | 30.0 | 7.0 |
| HCP 077-IQ | 7.70 | 2.83 | 1.770 | 0.35 | 30.0 | 7.0 |
| HCP 078-IQ | 7.80 | 2.83 | 1.770 | 0.35 | 30.0 | 7.0 |
| HCP 079-IQ | 7.90 | 2.83 | 1.770 | 0.35 | 30.0 | 7.0 |
| HCP 080-IQ | 8.00 | 3.24 | 2.160 | 0.40 | 30.0 | 8.0 |
| HCP 081-IQ | 8.10 | 3.24 | 2.160 | 0.40 | 30.0 | 8.0 |
| HCP 082-IQ | 8.20 | 3.24 | 2.160 | 0.40 | 30.0 | 8.0 |
| HCP 083-IQ | 8.30 | 3.24 | 2.160 | 0.40 | 30.0 | 8.0 |
| HCP 084-IQ | 8.40 | 3.24 | 2.160 | 0.40 | 30.0 | 8.0 |
| HCP 085-IQ | 8.50 | 3.24 | 2.160 | 0.40 | 30.0 | 8.0 |
| HCP 086-IQ | 8.60 | 3.24 | 2.160 | 0.40 | 30.0 | 8.0 |
| HCP 087-IQ | 8.70 | 3.24 | 2.160 | 0.40 | 30.0 | 8.0 |
| HCP 088-IQ | 8.80 | 3.24 | 2.160 | 0.40 | 30.0 | 8.0 |
| HCP 089-IQ | 8.90 | 3.24 | 2.160 | 0.40 | 30.0 | 8.0 |
| HCP 090-IQ | 9.00 | 3.55 | 2.250 | 0.45 | 30.0 | 9.0 |
| HCP 091-IQ | 9.10 | 3.55 | 2.250 | 0.45 | 30.0 | 9.0 |
| HCP 092-IQ | 9.20 | 3.55 | 2.250 | 0.45 | 30.0 | 9.0 |
| HCP 093-IQ | 9.30 | 3.55 | 2.250 | 0.45 | 30.0 | 9.0 |
| HCP 094-IQ | 9.40 | 3.55 | 2.250 | 0.45 | 30.0 | 9.0 |
| HCP 095-IQ | 9.50 | 3.55 | 2.250 | 0.45 | 30.0 | 9.0 |
| HCP 096-IQ | 9.60 | 3.55 | 2.250 | 0.45 | 30.0 | 9.0 |
| HCP 097-IQ | 9.70 | 3.55 | 2.250 | 0.45 | 30.0 | 9.0 |
| HCP 098-IQ | 9.80 | 3.55 | 2.250 | 0.45 | 30.0 | 9.0 |
| HCP 099-IQ | 9.90 | 3.55 | 2.250 | 0.45 | 30.0 | 9.0 |
| HCP 100-IQ | 10.00 | 3.48 | 2.720 | 0.49 | 30.0 | 10.0 |
- Продвинутое самоцентрирование и высокое качество поверхности
- (1) Код размера сиденья
