Инструменты MAX-OUT Iscar 2026

Продолжение — Минимальные затраты, максимальный выпуск

Сменные бурильные головки SUMO-CHAM с плоским дном для обработки материалов ISO P и ISO K

Обозначение	DC	PDD	LF	PL	CHW	KCH	SIG(1)	SSC(2)
FCP 098	9.80	2.82	3.50	1.110	0.40	60.0	140	9.0
FCP 099	9.90	2.82	3.50	1.110	0.40	60.0	140	9.0
FCP 100	10.00	2.77	3.70	1.170	0.40	60.0	140	10.0
FCP 101	10.10	2.77	3.70	1.170	0.40	60.0	140	10.0
FCP 102	10.20	2.77	3.70	1.170	0.40	60.0	140	10.0
FCP 103	10.30	2.77	3.70	1.170	0.40	60.0	140	10.0
FCP 104	10.40	2.77	3.70	1.170	0.40	60.0	140	10.0
FCP 105	10.50	2.77	3.70	1.170	0.40	60.0	140	10.0
FCP 106	10.60	2.77	3.70	1.170	0.40	60.0	140	10.0
FCP 107	10.70	2.77	3.70	1.170	0.40	60.0	140	10.0
FCP 108	10.80	2.77	3.70	1.170	0.40	60.0	140	10.0
FCP 109	10.90	2.77	3.70	1.170	0.40	60.0	140	10.0
FCP 110	11.00	2.88	3.80	1.250	0.40	60.0	140	11.0
FCP 111	11.10	2.88	3.80	1.250	0.40	60.0	140	11.0
FCP 112	11.20	2.88	3.80	1.250	0.40	60.0	140	11.0
FCP 113	11.30	2.88	3.80	1.250	0.40	60.0	140	11.0
FCP 114	11.40	2.88	3.80	1.250	0.40	60.0	140	11.0
FCP 115	11.50	2.88	3.80	1.250	0.40	60.0	140	11.0
FCP 116	11.60	2.88	3.80	1.250	0.40	60.0	140	11.0
FCP 117	11.70	2.88	3.80	1.250	0.40	60.0	140	11.0
FCP 118	11.80	2.88	3.80	1.250	0.40	60.0	140	11.0
FCP 119	11.90	2.88	3.80	1.250	0.40	60.0	140	11.0
FCP 120	12.00	3.10	4.10	1.260	0.40	60.0	140	12.0

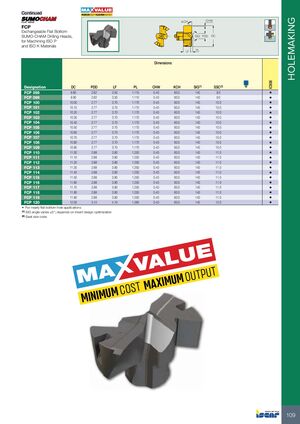

Инструменты MAX-OUT Iscar 2026 - страница 109
