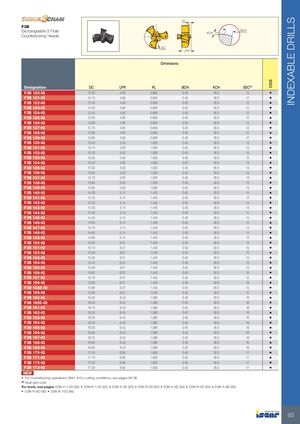

ИНДЕКСИРУЕМЫЕ СВЕРЛА
F3B
Сменные головки трёхзубого зенкерования
Размеры
| Обозначение | DC | LPR | PL | BCH | KCH | SSC(1) |
|---|---|---|---|---|---|---|
| F3B 120-IQ | 12.00 | 4.90 | 0.850 | 0.40 | 30.0 | 12 |
| F3B 121-IQ | 12.10 | 4.90 | 0.850 | 0.40 | 30.0 | 12 |
| F3B 122-IQ | 12.20 | 4.90 | 0.850 | 0.40 | 30.0 | 12 |
| F3B 123-IQ | 12.30 | 4.90 | 0.850 | 0.40 | 30.0 | 12 |
| F3B 124-IQ | 12.40 | 4.90 | 0.850 | 0.40 | 30.0 | 12 |
| F3B 125-IQ | 12.50 | 4.90 | 0.850 | 0.40 | 30.0 | 12 |
| F3B 126-IQ | 12.60 | 4.90 | 0.850 | 0.40 | 30.0 | 12 |
| F3B 127-IQ | 12.70 | 4.90 | 0.850 | 0.40 | 30.0 | 12 |
| F3B 128-IQ | 12.80 | 4.90 | 0.850 | 0.40 | 30.0 | 12 |
| F3B 129-IQ | 12.90 | 4.90 | 0.850 | 0.40 | 30.0 | 12 |
| F3B 130-IQ | 13.00 | 5.00 | 1.000 | 0.40 | 30.0 | 13 |
| F3B 131-IQ | 13.10 | 5.00 | 1.000 | 0.40 | 30.0 | 13 |
| F3B 132-IQ | 13.20 | 5.00 | 1.000 | 0.40 | 30.0 | 13 |
| F3B 133-IQ | 13.30 | 5.00 | 1.000 | 0.40 | 30.0 | 13 |
| F3B 134-IQ | 13.40 | 5.00 | 1.000 | 0.40 | 30.0 | 13 |
| F3B 135-IQ | 13.50 | 5.00 | 1.000 | 0.40 | 30.0 | 13 |
| F3B 136-IQ | 13.60 | 5.00 | 1.000 | 0.40 | 30.0 | 13 |
| F3B 137-IQ | 13.70 | 5.00 | 1.000 | 0.40 | 30.0 | 13 |
| F3B 138-IQ | 13.80 | 5.00 | 1.000 | 0.40 | 30.0 | 13 |
| F3B 139-IQ | 13.90 | 5.00 | 1.000 | 0.40 | 30.0 | 13 |
| F3B 140-IQ | 14.00 | 5.74 | 1.440 | 0.40 | 30.0 | 14 |
| F3B 141-IQ | 14.10 | 5.74 | 1.440 | 0.40 | 30.0 | 14 |
| F3B 142-IQ | 14.20 | 5.74 | 1.440 | 0.40 | 30.0 | 14 |
| F3B 143-IQ | 14.30 | 5.74 | 1.440 | 0.40 | 30.0 | 14 |
| F3B 144-IQ | 14.40 | 5.74 | 1.440 | 0.40 | 30.0 | 14 |
| F3B 145-IQ | 14.50 | 5.74 | 1.440 | 0.40 | 30.0 | 14 |
| F3B 146-IQ | 14.60 | 5.74 | 1.440 | 0.40 | 30.0 | 14 |
| F3B 147-IQ | 14.70 | 5.74 | 1.440 | 0.40 | 30.0 | 14 |
| F3B 148-IQ | 14.80 | 5.74 | 1.440 | 0.40 | 30.0 | 14 |
| F3B 149-IQ | 14.90 | 5.74 | 1.440 | 0.40 | 30.0 | 14 |
| F3B 150-IQ | 15.00 | 6.01 | 1.440 | 0.40 | 30.0 | 15 |
| F3B 151-IQ | 15.10 | 6.01 | 1.440 | 0.40 | 30.0 | 15 |
| F3B 152-IQ | 15.20 | 6.01 | 1.440 | 0.40 | 30.0 | 15 |
| F3B 153-IQ | 15.30 | 6.01 | 1.440 | 0.40 | 30.0 | 15 |
| F3B 154-IQ | 15.40 | 6.01 | 1.440 | 0.40 | 30.0 | 15 |
| F3B 155-IQ | 15.50 | 6.01 | 1.440 | 0.40 | 30.0 | 15 |
| F3B 156-IQ | 15.60 | 6.01 | 1.440 | 0.40 | 30.0 | 15 |
| F3B 157-IQ | 15.70 | 6.01 | 1.440 | 0.40 | 30.0 | 15 |
| F3B 158-IQ | 15.80 | 6.01 | 1.440 | 0.40 | 30.0 | 15 |
| F3B 1588-IQ | 15.88 | 6.01 | 1.440 | 0.40 | 30.0 | 15 |
| F3B 159-IQ | 15.90 | 6.01 | 1.440 | 0.40 | 30.0 | 15 |
| F3B 160-IQ | 16.00 | 6.43 | 1.580 | 0.40 | 30.0 | 16 |
| F3B 1605-IQ | 16.05 | 6.43 | 1.580 | 0.40 | 30.0 | 16 |
| F3B 161-IQ | 16.10 | 6.43 | 1.580 | 0.40 | 30.0 | 16 |
| F3B 162-IQ | 16.20 | 6.43 | 1.580 | 0.40 | 30.0 | 16 |
| F3B 163-IQ | 16.30 | 6.43 | 1.580 | 0.40 | 30.0 | 16 |
| F3B 164-IQ | 16.40 | 6.43 | 1.580 | 0.40 | 30.0 | 16 |
| F3B 165-IQ | 16.50 | 6.43 | 1.580 | 0.40 | 30.0 | 16 |
| F3B 166-IQ | 16.60 | 6.43 | 1.580 | 0.40 | 30.0 | 16 |
| F3B 167-IQ | 16.70 | 6.43 | 1.580 | 0.40 | 30.0 | 16 |
| F3B 168-IQ | 16.80 | 6.43 | 1.580 | 0.40 | 30.0 | 16 |
| F3B 169-IQ | 16.90 | 6.43 | 1.580 | 0.40 | 30.0 | 16 |
| F3B 170-IQ | 17.00 | 6.95 | 1.630 | 0.40 | 30.0 | 17 |
| F3B 171-IQ | 17.10 | 6.95 | 1.630 | 0.40 | 30.0 | 17 |
| F3B 172-IQ | 17.20 | 6.95 | 1.630 | 0.40 | 30.0 | 17 |
| F3B 173-IQ | 17.30 | 6.95 | 1.630 | 0.40 | 30.0 | 17 |
NEW
• Только для операций зенкерования • Рекомендации по резанию см. на стр. 96-98
(1) Код размера посадочного гнезда
Инструменты см. на стр.: D3N A-1.5D (82) • D3N R-1.5D (82) • D3N A-3D (83) • D3N R-3D (83) • D3N A-5D (84) • D3N R-5D (84) • D3N A-8D (85) • D3N R-8D (85) • D3N R-10D (86)
