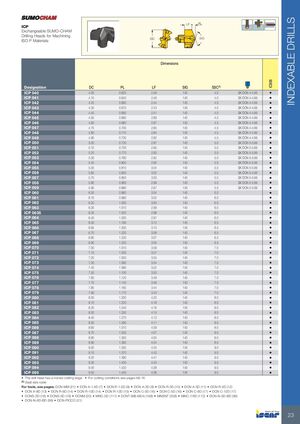

Индексируемые сверла
ICP Сменные головки сверл SUMO-CHAM для механической обработки
Материалы ISO P
Размеры
| Обозначение | DC | PL | LF | SIG | SSC(1) | |
|---|---|---|---|---|---|---|
| ICP 040 | 4.00 | 0.620 | 2.48 | 140 | 4.0 | SK DCN 4-4.99 |
| ICP 041 | 4.10 | 0.640 | 2.46 | 140 | 4.0 | SK DCN 4-4.99 |
| ICP 042 | 4.20 | 0.660 | 2.44 | 140 | 4.0 | SK DCN 4-4.99 |
| ICP 043 | 4.30 | 0.670 | 2.43 | 140 | 4.0 | SK DCN 4-4.99 |
| ICP 044 | 4.40 | 0.690 | 2.41 | 140 | 4.0 | SK DCN 4-4.99 |
| ICP 045 | 4.50 | 0.660 | 2.89 | 140 | 4.5 | SK DCN 4-4.99 |
| ICP 046 | 4.60 | 0.680 | 2.87 | 140 | 4.5 | SK DCN 4-4.99 |
| ICP 047 | 4.70 | 0.700 | 2.85 | 140 | 4.5 | SK DCN 4-4.99 |
| ICP 048 | 4.80 | 0.710 | 2.84 | 140 | 4.5 | SK DCN 4-4.99 |
| ICP 049 | 4.90 | 0.730 | 2.82 | 140 | 4.5 | SK DCN 4-4.99 |
| ICP 050 | 5.00 | 0.730 | 2.97 | 140 | 5.0 | SK DCN 5-5.99 |
| ICP 051 | 5.10 | 0.750 | 2.95 | 140 | 5.0 | SK DCN 5-5.99 |
| ICP 052 | 5.20 | 0.770 | 2.93 | 140 | 5.0 | SK DCN 5-5.99 |
| ICP 053 | 5.30 | 0.780 | 2.92 | 140 | 5.0 | SK DCN 5-5.99 |
| ICP 054 | 5.40 | 0.800 | 2.90 | 140 | 5.0 | SK DCN 5-5.99 |
| ICP 055 | 5.50 | 0.810 | 3.04 | 140 | 5.5 | SK DCN 5-5.99 |
| ICP 056 | 5.60 | 0.830 | 3.02 | 140 | 5.5 | SK DCN 5-5.99 |
| ICP 057 | 5.70 | 0.850 | 3.00 | 140 | 5.5 | SK DCN 5-5.99 |
| ICP 058 | 5.80 | 0.860 | 2.99 | 140 | 5.5 | SK DCN 5-5.99 |
| ICP 059 | 5.90 | 0.880 | 2.97 | 140 | 5.5 | SK DCN 5-5.99 |
| ICP 060 | 6.00 | 0.960 | 3.04 | 140 | 6.0 | |
| ICP 061 | 6.10 | 0.980 | 3.02 | 140 | 6.0 | |
| ICP 062 | 6.20 | 1.000 | 3.00 | 140 | 6.0 | |
| ICP 063 | 6.30 | 1.010 | 2.99 | 140 | 6.0 | |
| ICP 0635 | 6.35 | 1.020 | 2.98 | 140 | 6.0 | |
| ICP 064 | 6.40 | 1.030 | 2.97 | 140 | 6.0 | |
| ICP 065 | 6.50 | 1.180 | 3.12 | 140 | 6.5 | |
| ICP 066 | 6.60 | 1.200 | 3.10 | 140 | 6.5 | |
| ICP 067 | 6.70 | 1.220 | 3.08 | 140 | 6.5 | |
| ICP 068 | 6.80 | 1.230 | 3.07 | 140 | 6.5 | |
| ICP 069 | 6.90 | 1.250 | 3.05 | 140 | 6.5 | |
| ICP 070 | 7.00 | 1.010 | 3.59 | 140 | 7.0 | |
| ICP 071 | 7.10 | 1.030 | 3.57 | 140 | 7.0 | |
| ICP 072 | 7.20 | 1.050 | 3.55 | 140 | 7.0 | |
| ICP 073 | 7.30 | 1.060 | 3.54 | 140 | 7.0 | |
| ICP 074 | 7.40 | 1.080 | 3.52 | 140 | 7.0 | |
| ICP 075 | 7.50 | 1.100 | 3.50 | 140 | 7.0 | |
| ICP 076 | 7.60 | 1.120 | 3.48 | 140 | 7.0 | |
| ICP 077 | 7.70 | 1.140 | 3.46 | 140 | 7.0 | |
| ICP 078 | 7.80 | 1.160 | 3.44 | 140 | 7.0 | |
| ICP 079 | 7.90 | 1.170 | 3.43 | 140 | 7.0 | |
| ICP 080 | 8.00 | 1.200 | 4.20 | 140 | 8.0 | |
| ICP 081 | 8.10 | 1.220 | 4.18 | 140 | 8.0 | |
| ICP 082 | 8.20 | 1.240 | 4.16 | 140 | 8.0 | |
| ICP 083 | 8.30 | 1.250 | 4.15 | 140 | 8.0 | |
| ICP 084 | 8.40 | 1.270 | 4.13 | 140 | 8.0 | |
| ICP 085 | 8.50 | 1.290 | 4.11 | 140 | 8.0 | |
| ICP 086 | 8.60 | 1.310 | 4.09 | 140 | 8.0 | |
| ICP 087 | 8.70 | 1.330 | 4.07 | 140 | 8.0 | |
| ICP 088 | 8.80 | 1.350 | 4.05 | 140 | 8.0 | |
| ICP 089 | 8.90 | 1.360 | 4.04 | 140 | 8.0 | |
| ICP 090 | 9.00 | 1.350 | 4.45 | 140 | 9.0 | |
| ICP 091 | 9.10 | 1.370 | 4.43 | 140 | 9.0 | |
| ICP 092 | 9.20 | 1.390 | 4.41 | 140 | 9.0 | |
| ICP 093 | 9.30 | 1.400 | 4.40 | 140 | 9.0 | |
| ICP 094 | 9.40 | 1.420 | 4.38 | 140 | 9.0 | |
| ICP 095 | 9.50 | 1.440 | 4.36 | 140 | 9.0 |
- Головка сверла имеет отточенную кромку
- Условия резания см. на стр. 68-76
(1) Код размера посадки
Инструменты см. на стр.: DCN-MM (21) • DCN A-1.5D (7) • DCN R-1.5D (8) • DCN A-3D (9) • DCN R-3D (10) • DCN A-5D (11) • DCN R-5D (12) • DCN A-8D (13) • DCN R-8D (14) • DCN R-10D (14) • DCN R-12D (15) • DCN C-3D (16) • DCN C-5D (16) • DCN C-8D (17) • DCN C-12D (17) • DCNS-3D (18) • DCNS-5D (19) • DCNM (20) • MNC-5D (111) • DCNT (M8-M24) (168) • MNSNT (358) • MNC-7/8D (112) • DCN-N-5D-BD (99) • DCN-N-8D-BD (99) • DCN-PICCO (21)
