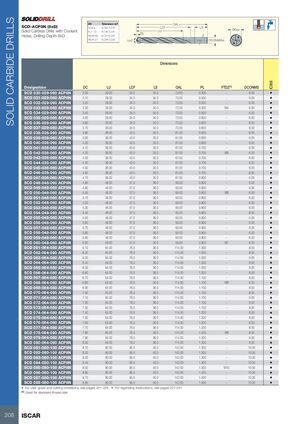

ТВЕРДОСПЛАВНЫЕ СВЕРЛА
SCD-ACP8N (8xD)
Твердосплавные сверла с отводом охлаждающей жидкости, глубина сверления 8xD
| Обозначение | DC | LU | LCF | LS | OAL | PL | FTDZ | DCONMS | IC908 |
|---|---|---|---|---|---|---|---|---|---|
| SCD 030-029-060 ACP8N | 3.00 | 29.00 | 34.0 | 34.0 | 72.00 | 0.500 | — | 6.00 | • |
| SCD 031-029-060 ACP8N | 3.10 | 29.00 | 34.0 | 34.0 | 72.00 | 0.500 | — | 6.00 | • |
| SCD 032-029-060 ACP8N | 3.20 | 29.00 | 34.0 | 34.0 | 72.00 | 0.500 | — | 6.00 | • |
| SCD 033-029-060 ACP8N | 3.30 | 29.00 | 34.0 | 34.0 | 72.00 | 0.500 | M4 | 6.00 | • |
| SCD 034-029-060 ACP8N | 3.40 | 29.00 | 34.0 | 34.0 | 72.00 | 0.500 | — | 6.00 | • |
| SCD 035-029-060 ACP8N | 3.50 | 29.00 | 34.0 | 34.0 | 72.00 | 0.600 | — | 6.00 | • |
| SCD 036-029-060 ACP8N | 3.60 | 29.00 | 34.0 | 34.0 | 72.00 | 0.600 | — | 6.00 | • |
| SCD 037-029-060 ACP8N | 3.70 | 29.00 | 34.0 | 34.0 | 72.00 | 0.600 | — | 6.00 | • |
| SCD 038-036-060 ACP8N | 3.80 | 36.00 | 43.0 | 35.0 | 81.00 | 0.600 | — | 6.00 | • |
| SCD 039-036-060 ACP8N | 3.90 | 36.00 | 43.0 | 35.0 | 81.00 | 0.600 | — | 6.00 | • |
| SCD 040-036-060 ACP8N | 4.00 | 36.00 | 43.0 | 35.0 | 81.00 | 0.600 | — | 6.00 | • |
| SCD 041-036-060 ACP8N | 4.10 | 36.00 | 43.0 | 35.0 | 81.00 | 0.700 | — | 6.00 | • |
| SCD 042-036-060 ACP8N | 4.20 | 36.00 | 43.0 | 35.0 | 81.00 | 0.700 | M5 | 6.00 | • |
| SCD 043-036-060 ACP8N | 4.30 | 36.00 | 43.0 | 35.0 | 81.00 | 0.700 | — | 6.00 | • |
| SCD 044-036-060 ACP8N | 4.40 | 36.00 | 43.0 | 35.0 | 81.00 | 0.700 | — | 6.00 | • |
| SCD 045-036-060 ACP8N | 4.50 | 36.00 | 43.0 | 35.0 | 81.00 | 0.700 | — | 6.00 | • |
| SCD 046-036-060 ACP8N | 4.60 | 36.00 | 43.0 | 35.0 | 81.00 | 0.700 | — | 6.00 | • |
| SCD 047-036-060 ACP8N | 4.70 | 36.00 | 43.0 | 35.0 | 81.00 | 0.800 | — | 6.00 | • |
| SCD 048-048-060 ACP8N | 4.80 | 48.00 | 57.0 | 36.0 | 95.00 | 0.800 | — | 6.00 | • |
| SCD 049-048-060 ACP8N | 4.90 | 48.00 | 57.0 | 36.0 | 95.00 | 0.800 | — | 6.00 | • |
| SCD 050-048-060 ACP8N | 5.00 | 48.00 | 57.0 | 36.0 | 95.00 | 0.800 | M6 | 6.00 | • |
| SCD 051-048-060 ACP8N | 5.10 | 48.00 | 57.0 | 36.0 | 95.00 | 0.800 | — | 6.00 | • |
| SCD 052-048-060 ACP8N | 5.20 | 48.00 | 57.0 | 36.0 | 95.00 | 0.800 | — | 6.00 | • |
| SCD 053-048-060 ACP8N | 5.30 | 48.00 | 57.0 | 36.0 | 95.00 | 0.800 | — | 6.00 | • |
| SCD 054-048-060 ACP8N | 5.40 | 48.00 | 57.0 | 36.0 | 95.00 | 0.800 | — | 6.00 | • |
| SCD 055-048-060 ACP8N | 5.50 | 48.00 | 57.0 | 36.0 | 95.00 | 0.900 | — | 6.00 | • |
| SCD 056-048-060 ACP8N | 5.60 | 48.00 | 57.0 | 36.0 | 95.00 | 0.900 | — | 6.00 | • |
| SCD 057-048-060 ACP8N | 5.70 | 48.00 | 57.0 | 36.0 | 95.00 | 0.900 | — | 6.00 | • |
| SCD 058-048-060 ACP8N | 5.80 | 48.00 | 57.0 | 36.0 | 95.00 | 0.900 | — | 6.00 | • |
| SCD 059-048-060 ACP8N | 5.90 | 48.00 | 57.0 | 36.0 | 95.00 | 0.900 | — | 6.00 | • |
| SCD 060-048-060 ACP8N | 6.00 | 48.00 | 57.0 | 36.0 | 95.00 | 0.900 | M7 | 6.00 | • |
| SCD 061-064-080 ACP8N | 6.10 | 64.00 | 76.0 | 36.0 | 114.00 | 1.000 | — | 8.00 | • |
| SCD 062-064-080 ACP8N | 6.20 | 64.00 | 76.0 | 36.0 | 114.00 | 1.000 | — | 8.00 | • |
| SCD 063-064-080 ACP8N | 6.30 | 64.00 | 76.0 | 36.0 | 114.00 | 1.000 | — | 8.00 | • |
| SCD 064-064-080 ACP8N | 6.40 | 64.00 | 76.0 | 36.0 | 114.00 | 1.000 | — | 8.00 | • |
| SCD 065-064-080 ACP8N | 6.50 | 64.00 | 76.0 | 36.0 | 114.00 | 1.000 | — | 8.00 | • |
| SCD 066-064-080 ACP8N | 6.60 | 64.00 | 76.0 | 36.0 | 114.00 | 1.000 | — | 8.00 | • |
| SCD 067-064-080 ACP8N | 6.70 | 64.00 | 76.0 | 36.0 | 114.00 | 1.100 | — | 8.00 | • |
| SCD 068-064-080 ACP8N | 6.80 | 64.00 | 76.0 | 36.0 | 114.00 | 1.100 | M8 | 8.00 | • |
| SCD 069-064-080 ACP8N | 6.90 | 64.00 | 76.0 | 36.0 | 114.00 | 1.100 | — | 8.00 | • |
| SCD 070-064-080 ACP8N | 7.00 | 64.00 | 76.0 | 36.0 | 114.00 | 1.100 | — | 8.00 | • |
| SCD 071-064-080 ACP8N | 7.10 | 64.00 | 76.0 | 36.0 | 114.00 | 1.100 | — | 8.00 | • |
| SCD 072-064-080 ACP8N | 7.20 | 64.00 | 76.0 | 36.0 | 114.00 | 1.100 | — | 8.00 | • |
| SCD 073-064-080 ACP8N | 7.30 | 64.00 | 76.0 | 36.0 | 114.00 | 1.100 | — | 8.00 | • |
| SCD 074-064-080 ACP8N | 7.40 | 64.00 | 76.0 | 36.0 | 114.00 | 1.200 | — | 8.00 | • |
| SCD 075-064-080 ACP8N | 7.50 | 64.00 | 76.0 | 36.0 | 114.00 | 1.200 | — | 8.00 | • |
| SCD 076-064-080 ACP8N | 7.60 | 64.00 | 76.0 | 36.0 | 114.00 | 1.200 | — | 8.00 | • |
| SCD 077-064-080 ACP8N | 7.70 | 64.00 | 76.0 | 36.0 | 114.00 | 1.200 | — | 8.00 | • |
| SCD 078-064-080 ACP8N | 7.80 | 64.00 | 76.0 | 36.0 | 114.00 | 1.200 | M9 | 8.00 | • |
| SCD 079-064-080 ACP8N | 7.90 | 64.00 | 76.0 | 36.0 | 114.00 | 1.300 | — | 8.00 | • |
| SCD 080-064-080 ACP8N | 8.00 | 64.00 | 76.0 | 36.0 | 114.00 | 1.300 | — | 8.00 | • |
| SCD 081-080-100 ACP8N | 8.10 | 80.00 | 95.0 | 40.0 | 142.00 | 1.300 | — | 10.00 | • |
| SCD 082-080-100 ACP8N | 8.20 | 80.00 | 95.0 | 40.0 | 142.00 | 1.300 | — | 10.00 | • |
| SCD 083-080-100 ACP8N | 8.30 | 80.00 | 95.0 | 40.0 | 142.00 | 1.300 | — | 10.00 | • |
| SCD 084-080-100 ACP8N | 8.40 | 80.00 | 95.0 | 40.0 | 142.00 | 1.300 | — | 10.00 | • |
| SCD 085-080-100 ACP8N | 8.50 | 80.00 | 95.0 | 40.0 | 142.00 | 1.300 | M10 | 10.00 | • |
| SCD 086-080-100 ACP8N | 8.60 | 80.00 | 95.0 | 40.0 | 142.00 | 1.400 | — | 10.00 | • |
| SCD 087-080-100 ACP8N | 8.70 | 80.00 | 95.0 | 40.0 | 142.00 | 1.400 | — | 10.00 | • |
| SCD 088-080-100 ACP8N | 8.80 | 80.00 | 95.0 | 40.0 | 142.00 | 1.400 | — | 10.00 | • |
