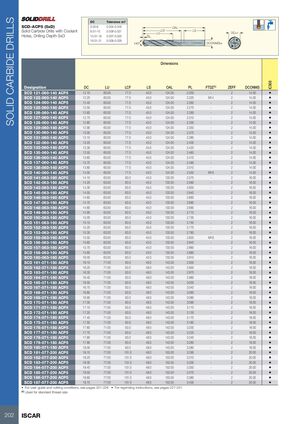

СВЕРЛА ИЗ ТВЕРДОГО СПЛАВА
SCD-ACP5 (5xD)
Сверла из твердого сплава с каналами подвода охлаждающей жидкости, глубина сверления 5xD
Допуск m7:
- 3.00–6: 0.004–0.016
- 6.01–10: 0.008–0.021
- 10.01–18: 0.007–0.025
- 18.01–21: 0.008–0.029
Угол: 140° DCm7
Размеры
| Обозначение | DC | LU | LCF | LS | OAL | PL | FTDZ(1) | ZEFF | DCONMS | IC908 |
|---|---|---|---|---|---|---|---|---|---|---|
| SCD 121-060-140 ACP5 | 12.10 | 60.00 | 77.0 | 45.0 | 124.00 | 2.200 | – | 2 | 14.00 | • |
| SCD 122-060-140 ACP5 | 12.20 | 60.00 | 77.0 | 45.0 | 124.00 | 2.220 | M14 | 2 | 14.00 | • |
| SCD 124-060-140 ACP5 | 12.40 | 60.00 | 77.0 | 45.0 | 124.00 | 2.260 | – | 2 | 14.00 | • |
| SCD 125-060-140 ACP5 | 12.50 | 60.00 | 77.0 | 45.0 | 124.00 | 2.270 | – | 2 | 14.00 | • |
| SCD 126-060-140 ACP5 | 12.60 | 60.00 | 77.0 | 45.0 | 124.00 | 2.290 | – | 2 | 14.00 | • |
| SCD 127-060-140 ACP5 | 12.70 | 60.00 | 77.0 | 45.0 | 124.00 | 2.310 | – | 2 | 14.00 | • |
| SCD 128-060-140 ACP5 | 12.80 | 60.00 | 77.0 | 45.0 | 124.00 | 2.330 | – | 2 | 14.00 | • |
| SCD 129-060-140 ACP5 | 12.90 | 60.00 | 77.0 | 45.0 | 124.00 | 2.350 | – | 2 | 14.00 | • |
| SCD 130-060-140 ACP5 | 13.00 | 60.00 | 77.0 | 45.0 | 124.00 | 2.370 | – | 2 | 14.00 | • |
| SCD 131-060-140 ACP5 | 13.10 | 60.00 | 77.0 | 45.0 | 124.00 | 2.380 | – | 2 | 14.00 | • |
| SCD 132-060-140 ACP5 | 13.20 | 60.00 | 77.0 | 45.0 | 124.00 | 2.400 | – | 2 | 14.00 | • |
| SCD 133-060-140 ACP5 | 13.30 | 60.00 | 77.0 | 45.0 | 124.00 | 2.420 | – | 2 | 14.00 | • |
| SCD 135-060-140 ACP5 | 13.50 | 60.00 | 77.0 | 45.0 | 124.00 | 2.460 | – | 2 | 14.00 | • |
| SCD 136-060-140 ACP5 | 13.60 | 60.00 | 77.0 | 45.0 | 124.00 | 2.470 | – | 2 | 14.00 | • |
| SCD 137-060-140 ACP5 | 13.70 | 60.00 | 77.0 | 45.0 | 124.00 | 2.490 | – | 2 | 14.00 | • |
| SCD 138-060-140 ACP5 | 13.80 | 60.00 | 77.0 | 45.0 | 124.00 | 2.510 | – | 2 | 14.00 | • |
| SCD 140-060-140 ACP5 | 14.00 | 60.00 | 77.0 | 45.0 | 124.00 | 2.550 | M16 | 2 | 14.00 | • |
| SCD 141-063-160 ACP5 | 14.10 | 63.00 | 83.0 | 45.0 | 133.00 | 2.570 | – | 2 | 16.00 | • |
| SCD 142-063-160 ACP5 | 14.20 | 63.00 | 83.0 | 45.0 | 133.00 | 2.580 | – | 2 | 16.00 | • |
| SCD 143-063-160 ACP5 | 14.30 | 63.00 | 83.0 | 45.0 | 133.00 | 2.600 | – | 2 | 16.00 | • |
| SCD 145-063-160 ACP5 | 14.50 | 63.00 | 83.0 | 45.0 | 133.00 | 2.640 | – | 2 | 16.00 | • |
| SCD 146-063-160 ACP5 | 14.60 | 63.00 | 83.0 | 45.0 | 133.00 | 2.660 | – | 2 | 16.00 | • |
| SCD 147-063-160 ACP5 | 14.70 | 63.00 | 83.0 | 45.0 | 133.00 | 2.680 | – | 2 | 16.00 | • |
| SCD 148-063-160 ACP5 | 14.80 | 63.00 | 83.0 | 45.0 | 133.00 | 2.690 | – | 2 | 16.00 | • |
| SCD 149-063-160 ACP5 | 14.90 | 63.00 | 83.0 | 45.0 | 133.00 | 2.710 | – | 2 | 16.00 | • |
| SCD 150-063-160 ACP5 | 15.00 | 63.00 | 83.0 | 45.0 | 133.00 | 2.730 | – | 2 | 16.00 | • |
| SCD 151-063-160 ACP5 | 15.10 | 63.00 | 83.0 | 45.0 | 133.00 | 2.750 | – | 2 | 16.00 | • |
| SCD 152-063-160 ACP5 | 15.20 | 63.00 | 83.0 | 45.0 | 133.00 | 2.770 | – | 2 | 16.00 | • |
| SCD 153-063-160 ACP5 | 15.30 | 63.00 | 83.0 | 45.0 | 133.00 | 2.780 | – | 2 | 16.00 | • |
| SCD 155-063-160 ACP5 | 15.50 | 63.00 | 83.0 | 45.0 | 133.00 | 2.820 | M18 | 2 | 16.00 | • |
| SCD 156-063-160 ACP5 | 15.60 | 63.00 | 83.0 | 45.0 | 133.00 | 2.840 | – | 2 | 16.00 | • |
| SCD 157-063-160 ACP5 | 15.70 | 63.00 | 83.0 | 45.0 | 133.00 | 2.860 | – | 2 | 16.00 | • |
| SCD 158-063-160 ACP5 | 15.80 | 63.00 | 83.0 | 45.0 | 133.00 | 2.880 | – | 2 | 16.00 | • |
| SCD 160-063-160 ACP5 | 16.00 | 63.00 | 83.0 | 45.0 | 133.00 | 2.910 | – | 2 | 16.00 | • |
| SCD 161-071-180 ACP5 | 16.10 | 71.00 | 93.0 | 48.0 | 143.00 | 2.930 | – | 2 | 18.00 | • |
| SCD 162-071-180 ACP5 | 16.20 | 71.00 | 93.0 | 48.0 | 143.00 | 2.950 | – | 2 | 18.00 | • |
| SCD 163-071-180 ACP5 | 16.30 | 71.00 | 93.0 | 48.0 | 143.00 | 2.970 | – | 2 | 18.00 | • |
| SCD 164-071-180 ACP5 | 16.40 | 71.00 | 93.0 | 48.0 | 143.00 | 2.980 | – | 2 | 18.00 | • |
| SCD 165-071-180 ACP5 | 16.50 | 71.00 | 93.0 | 48.0 | 143.00 | 3.000 | – | 2 | 18.00 | • |
| SCD 167-071-180 ACP5 | 16.70 | 71.00 | 93.0 | 48.0 | 143.00 | 3.040 | – | 2 | 18.00 | • |
| SCD 168-071-180 ACP5 | 16.80 | 71.00 | 93.0 | 48.0 | 143.00 | 3.060 | – | 2 | 18.00 | • |
| SCD 169-071-180 ACP5 | 16.90 | 71.00 | 93.0 | 48.0 | 143.00 | 3.080 | – | 2 | 18.00 | • |
| SCD 170-071-180 ACP5 | 17.00 | 71.00 | 93.0 | 48.0 | 143.00 | 3.090 | – | 2 | 18.00 | • |
| SCD 171-071-180 ACP5 | 17.10 | 71.00 | 93.0 | 48.0 | 143.00 | 3.110 | – | 2 | 18.00 | • |
| SCD 172-071-180 ACP5 | 17.20 | 71.00 | 93.0 | 48.0 | 143.00 | 3.130 | – | 2 | 18.00 | • |
| SCD 174-071-180 ACP5 | 17.40 | 71.00 | 93.0 | 48.0 | 143.00 | 3.170 | – | 2 | 18.00 | • |
| SCD 175-071-180 ACP5 | 17.50 | 71.00 | 93.0 | 48.0 | 143.00 | 3.180 | – | 2 | 18.00 | • |
| SCD 176-071-180 ACP5 | 17.60 | 71.00 | 93.0 | 48.0 | 143.00 | 3.200 | – | 2 | 18.00 | • |
| SCD 177-071-180 ACP5 | 17.70 | 71.00 | 93.0 | 48.0 | 143.00 | 3.220 | – | 2 | 18.00 | • |
| SCD 178-071-180 ACP5 | 17.80 | 71.00 | 93.0 | 48.0 | 143.00 | 3.240 | – | 2 | 18.00 | • |
| SCD 179-071-180 ACP5 | 17.90 | 71.00 | 93.0 | 48.0 | 143.00 | 3.260 | – | 2 | 18.00 | • |
| SCD 180-071-180 ACP5 | 18.00 | 71.00 | 93.0 | 48.0 | 143.00 | 3.280 | – | 2 | 18.00 | • |
| SCD 181-077-200 ACP5 | 18.10 | 77.00 | 101.0 | 48.0 | 153.00 | 3.290 | – | 2 | 20.00 | • |
| SCD 182-077-200 ACP5 | 18.20 | 77.00 | 101.0 | 48.0 | 153.00 | 3.310 | – | 2 | 20.00 | • |
| SCD 183-077-200 ACP5 | 18.30 | 77.00 | 101.0 | 48.0 | 153.00 | 3.330 | – | 2 | 20.00 | • |
| SCD 184-077-200 ACP5 | 18.40 | 77.00 | 101.0 | 48.0 | 153.00 | 3.350 | – | 2 | 20.00 | • |
| SCD 185-077-200 ACP5 | 18.50 | 77.00 | 101.0 | 48.0 | 153.00 | 3.370 | – | 2 | 20.00 | • |
| SCD 186-077-200 ACP5 | 18.60 | 77.00 | 101.0 | 48.0 | 153.00 | 3.380 | – | 2 | 20.00 | • |
| SCD 187-077-200 ACP5 | 18.70 | 77.00 | 101.0 | 48.0 | 153.00 | 3.400 | – | 2 | 20.00 | • |
(1) Используется для стандартного размера резьбы
