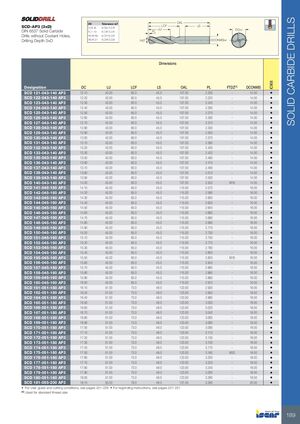

ТВЁРДОСПЛАВНЫЕ СПИРАЛЬНЫЕ СВЕРЛА
SCD-AP3 (3xD)
DIN 6537 твёрдосплавные спиральные сверла без отверстий подачи СОЖ, глубина сверления 3xD
| Обозначение | DC | LU | LCF | LS | OAL | PL | FTDZ(1) | DCONMS | IC908 |
|---|---|---|---|---|---|---|---|---|---|
| SCD 121-043-140 AP3 | 12.10 | 43.00 | 60.0 | 45.0 | 107.00 | 2.200 | — | 14.00 | • |
| SCD 122-043-140 AP3 | 12.20 | 43.00 | 60.0 | 45.0 | 107.00 | 2.220 | — | 14.00 | • |
| SCD 123-043-140 AP3 | 12.30 | 43.00 | 60.0 | 45.0 | 107.00 | 2.240 | — | 14.00 | • |
| SCD 124-043-140 AP3 | 12.40 | 43.00 | 60.0 | 45.0 | 107.00 | 2.260 | — | 14.00 | • |
| SCD 125-043-140 AP3 | 12.50 | 43.00 | 60.0 | 45.0 | 107.00 | 2.270 | — | 14.00 | • |
| SCD 126-043-140 AP3 | 12.60 | 43.00 | 60.0 | 45.0 | 107.00 | 2.290 | — | 14.00 | • |
| SCD 127-043-140 AP3 | 12.70 | 43.00 | 60.0 | 45.0 | 107.00 | 2.310 | — | 14.00 | • |
| SCD 128-043-140 AP3 | 12.80 | 43.00 | 60.0 | 45.0 | 107.00 | 2.330 | — | 14.00 | • |
| SCD 129-043-140 AP3 | 12.90 | 43.00 | 60.0 | 45.0 | 107.00 | 2.350 | — | 14.00 | • |
| SCD 130-043-140 AP3 | 13.00 | 43.00 | 60.0 | 45.0 | 107.00 | 2.370 | — | 14.00 | • |
| SCD 131-043-140 AP3 | 13.10 | 43.00 | 60.0 | 45.0 | 107.00 | 2.380 | — | 14.00 | • |
| SCD 132-043-140 AP3 | 13.20 | 43.00 | 60.0 | 45.0 | 107.00 | 2.400 | — | 14.00 | • |
| SCD 133-043-140 AP3 | 13.30 | 43.00 | 60.0 | 45.0 | 107.00 | 2.420 | — | 14.00 | • |
| SCD 135-043-140 AP3 | 13.50 | 43.00 | 60.0 | 45.0 | 107.00 | 2.460 | — | 14.00 | • |
| SCD 136-043-140 AP3 | 13.60 | 43.00 | 60.0 | 45.0 | 107.00 | 2.470 | — | 14.00 | • |
| SCD 137-043-140 AP3 | 13.70 | 43.00 | 60.0 | 45.0 | 107.00 | 2.490 | — | 14.00 | • |
| SCD 138-043-140 AP3 | 13.80 | 43.00 | 60.0 | 45.0 | 107.00 | 2.510 | — | 14.00 | • |
| SCD 139-043-140 AP3 | 13.90 | 43.00 | 60.0 | 45.0 | 107.00 | 2.530 | — | 14.00 | • |
| SCD 140-043-140 AP3 | 14.00 | 43.00 | 60.0 | 45.0 | 107.00 | 2.550 | M16 | 14.00 | • |
| SCD 141-045-160 AP3 | 14.10 | 45.00 | 65.0 | 45.0 | 115.00 | 2.570 | — | 16.00 | • |
| SCD 142-045-160 AP3 | 14.20 | 45.00 | 65.0 | 45.0 | 115.00 | 2.580 | — | 16.00 | • |
| SCD 143-045-160 AP3 | 14.30 | 45.00 | 65.0 | 45.0 | 115.00 | 2.600 | — | 16.00 | • |
| SCD 144-045-160 AP3 | 14.40 | 45.00 | 65.0 | 45.0 | 115.00 | 2.620 | — | 16.00 | • |
| SCD 145-045-160 AP3 | 14.50 | 45.00 | 65.0 | 45.0 | 115.00 | 2.640 | — | 16.00 | • |
| SCD 146-045-160 AP3 | 14.60 | 45.00 | 65.0 | 45.0 | 115.00 | 2.660 | — | 16.00 | • |
| SCD 147-045-160 AP3 | 14.70 | 45.00 | 65.0 | 45.0 | 115.00 | 2.680 | — | 16.00 | • |
| SCD 148-045-160 AP3 | 14.80 | 45.00 | 65.0 | 45.0 | 115.00 | 2.690 | — | 16.00 | • |
| SCD 149-045-160 AP3 | 14.90 | 45.00 | 65.0 | 45.0 | 115.00 | 2.710 | — | 16.00 | • |
| SCD 150-045-160 AP3 | 15.00 | 45.00 | 65.0 | 45.0 | 115.00 | 2.730 | — | 16.00 | • |
| SCD 151-045-160 AP3 | 15.10 | 45.00 | 65.0 | 45.0 | 115.00 | 2.750 | — | 16.00 | • |
| SCD 152-045-160 AP3 | 15.20 | 45.00 | 65.0 | 45.0 | 115.00 | 2.770 | — | 16.00 | • |
| SCD 153-045-160 AP3 | 15.30 | 45.00 | 65.0 | 45.0 | 115.00 | 2.780 | — | 16.00 | • |
| SCD 154-045-160 AP3 | 15.40 | 45.00 | 65.0 | 45.0 | 115.00 | 2.800 | — | 16.00 | • |
| SCD 155-045-160 AP3 | 15.50 | 45.00 | 65.0 | 45.0 | 115.00 | 2.820 | M18 | 16.00 | • |
| SCD 156-045-160 AP3 | 15.60 | 45.00 | 65.0 | 45.0 | 115.00 | 2.840 | — | 16.00 | • |
| SCD 157-045-160 AP3 | 15.70 | 45.00 | 65.0 | 45.0 | 115.00 | 2.860 | — | 16.00 | • |
| SCD 158-045-160 AP3 | 15.80 | 45.00 | 65.0 | 45.0 | 115.00 | 2.880 | — | 16.00 | • |
| SCD 159-045-160 AP3 | 15.90 | 45.00 | 65.0 | 45.0 | 115.00 | 2.890 | — | 16.00 | • |
| SCD 160-045-160 AP3 | 16.00 | 45.00 | 65.0 | 45.0 | 115.00 | 2.910 | — | 16.00 | • |
| SCD 161-051-180 AP3 | 16.10 | 51.00 | 73.0 | 48.0 | 123.00 | 2.930 | — | 18.00 | • |
| SCD 162-051-180 AP3 | 16.20 | 51.00 | 73.0 | 48.0 | 123.00 | 2.950 | — | 18.00 | • |
| SCD 164-051-180 AP3 | 16.40 | 51.00 | 73.0 | 48.0 | 123.00 | 2.980 | — | 18.00 | • |
| SCD 165-051-180 AP3 | 16.50 | 51.00 | 73.0 | 48.0 | 123.00 | 3.000 | — | 18.00 | • |
| SCD 166-051-180 AP3 | 16.60 | 51.00 | 73.0 | 48.0 | 123.00 | 3.020 | — | 18.00 | • |
| SCD 167-051-180 AP3 | 16.70 | 51.00 | 73.0 | 48.0 | 123.00 | 3.040 | — | 18.00 | • |
| SCD 168-051-180 AP3 | 16.80 | 51.00 | 73.0 | 48.0 | 123.00 | 3.060 | — | 18.00 | • |
| SCD 169-051-180 AP3 | 16.90 | 51.00 | 73.0 | 48.0 | 123.00 | 3.080 | — | 18.00 | • |
| SCD 170-051-180 AP3 | 17.00 | 51.00 | 73.0 | 48.0 | 123.00 | 3.090 | — | 18.00 | • |
| SCD 171-051-180 AP3 | 17.10 | 51.00 | 73.0 | 48.0 | 123.00 | 3.110 | — | 18.00 | • |
| SCD 172-051-180 AP3 | 17.20 | 51.00 | 73.0 | 48.0 | 123.00 | 3.130 | — | 18.00 | • |
| SCD 173-051-180 AP3 | 17.30 | 51.00 | 73.0 | 48.0 | 123.00 | 3.150 | — | 18.00 | • |
| SCD 174-051-180 AP3 | 17.40 | 51.00 | 73.0 | 48.0 | 123.00 | 3.170 | — | 18.00 | • |
| SCD 175-051-180 AP3 | 17.50 | 51.00 | 73.0 | 48.0 | 123.00 | 3.180 | M20 | 18.00 | • |
| SCD 176-051-180 AP3 | 17.60 | 51.00 | 73.0 | 48.0 | 123.00 | 3.200 | — | 18.00 | • |
| SCD 177-051-180 AP3 | 17.70 | 51.00 | 73.0 | 48.0 | 123.00 | 3.220 | — | 18.00 | • |
| SCD 178-051-180 AP3 | 17.80 | 51.00 | 73.0 | 48.0 | 123.00 | 3.240 | — | 18.00 | • |
| SCD 179-051-180 AP3 | 17.90 | 51.00 | 73.0 | 48.0 | 123.00 | 3.260 | — | 18.00 | • |
| SCD 180-051-180 AP3 | 18.00 | 51.00 | 73.0 | 48.0 | 123.00 | 3.280 | — | 18.00 | • |
| SCD 181-055-200 AP3 | 18.10 | 55.00 | 79.0 | 48.0 | 131.00 | 3.290 | — | 20.00 | • |
(1) Используется для стандартного размера резьбы
