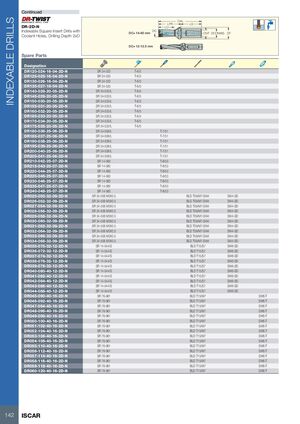

DR-2D-N — Продолжение
Запасные части
| Обозначение | Корпус | Дополнительно |
|---|---|---|
| DR120-024-16-04-2D-N | SR 34-533 | T-6/5 |
| DR125-025-16-04-2D-N | SR 34-533 | T-6/5 |
| DR130-026-16-04-2D-N | SR 34-533 | T-6/5 |
| DR135-027-16-04-2D-N | SR 34-533 | T-6/5 |
| DR140-028-20-05-2D-N | SR 34-533/L | T-6/5 |
| DR145-029-20-05-2D-N | SR 34-533/L | T-6/5 |
| DR150-030-20-05-2D-N | SR 34-533/L | T-6/5 |
| DR155-031-20-05-2D-N | SR 34-533/L | T-6/5 |
| DR160-032-20-05-2D-N | SR 34-533/L | T-6/5 |
| DR165-033-20-05-2D-N | SR 34-533/L | T-6/5 |
| DR170-034-20-05-2D-N | SR 34-533/L | T-6/5 |
| DR175-035-20-05-2D-N | SR 34-533/L | T-6/5 |
| DR180-036-25-06-2D-N | SR 34-508/L | T-7/51 |
| DR185-037-25-06-2D-N | SR 34-508/L | T-7/51 |
| DR190-038-25-06-2D-N | SR 34-508/L | T-7/51 |
| DR195-039-25-06-2D-N | SR 34-508/L | T-7/51 |
| DR200-040-25-06-2D-N | SR 34-508/L | T-7/51 |
| DR205-041-25-06-2D-N | SR 34-508/L | T-7/51 |
| DR210-042-25-07-2D-N | SR 14-560 | T-8/53 |
| DR215-043-25-07-2D-N | SR 14-560 | T-8/53 |
| DR220-044-25-07-2D-N | SR 14-560 | T-8/53 |
| DR225-045-25-07-2D-N | SR 14-560 | T-8/53 |
| DR230-046-25-07-2D-N | SR 14-560 | T-8/53 |
| DR235-047-25-07-2D-N | SR 14-560 | T-8/53 |
| DR240-048-25-07-2D-N | SR 14-560 | T-8/53 |
| DR025-050-32-09-2D-N | SR 34-506 M3X0.5 | BLD T09/M7-SW4, SW4-SD |
| DR026-052-32-09-2D-N | SR 34-506 M3X0.5 | BLD T09/M7-SW4, SW4-SD |
| DR027-054-32-09-2D-N | SR 34-506 M3X0.5 | BLD T09/M7-SW4, SW4-SD |
| DR028-056-32-09-2D-N | SR 34-506 M3X0.5 | BLD T09/M7-SW4, SW4-SD |
| DR029-058-32-09-2D-N | SR 34-506 M3X0.5 | BLD T09/M7-SW4, SW4-SD |
| DR030-060-32-09-2D-N | SR 34-506 M3X0.5 | BLD T09/M7-SW4, SW4-SD |
| DR031-062-32-09-2D-N | SR 34-506 M3X0.5 | BLD T09/M7-SW4, SW4-SD |
| DR032-064-32-09-2D-N | SR 34-506 M3X0.5 | BLD T09/M7-SW4, SW4-SD |
| DR033-066-32-09-2D-N | SR 34-506 M3X0.5 | BLD T09/M7-SW4, SW4-SD |
| DR034-068-32-09-2D-N | SR 34-506 M3X0.5 | BLD T09/M7-SW4, SW4-SD |
| DR035-070-32-12-2D-N | SR 14-544/S | BLD T15/S7, SW6-SD |
| DR036-072-32-12-2D-N | SR 14-544/S | BLD T15/S7, SW6-SD |
| DR037-074-32-12-2D-N | SR 14-544/S | BLD T15/S7, SW6-SD |
| DR038-076-32-12-2D-N | SR 14-544/S | BLD T15/S7, SW6-SD |
| DR039-078-32-12-2D-N | SR 14-544/S | BLD T15/S7, SW6-SD |
| DR040-080-40-12-2D-N | SR 14-544/S | BLD T15/S7, SW6-SD |
| DR041-082-40-12-2D-N | SR 14-544/S | BLD T15/S7, SW6-SD |
| DR042-084-40-12-2D-N | SR 14-544/S | BLD T15/S7, SW6-SD |
| DR043-086-40-12-2D-N | SR 14-544/S | BLD T15/S7, SW6-SD |
| DR044-088-40-12-2D-N | SR 14-544/S | BLD T15/S7, SW6-SD |
| DR045-090-40-16-2D-N | SR 76-961 | BLD T15/M7, SW6-T |
| DR046-092-40-16-2D-N | SR 76-961 | BLD T15/M7, SW6-T |
| DR047-094-40-16-2D-N | SR 76-961 | BLD T15/M7, SW6-T |
| DR048-096-40-16-2D-N | SR 76-961 | BLD T15/M7, SW6-T |
| DR049-098-40-16-2D-N | SR 76-961 | BLD T15/M7, SW6-T |
| DR050-100-40-16-2D-N | SR 76-961 | BLD T15/M7, SW6-T |
| DR051-102-40-16-2D-N | SR 76-961 | BLD T15/M7, SW6-T |
| DR052-104-40-16-2D-N | SR 76-961 | BLD T15/M7, SW6-T |
| DR053-106-40-16-2D-N | SR 76-961 | BLD T15/M7, SW6-T |
| DR054-108-40-16-2D-N | SR 76-961 | BLD T15/M7, SW6-T |
| DR055-110-40-16-2D-N | SR 76-961 | BLD T15/M7, SW6-T |
| DR056-112-40-16-2D-N | SR 76-961 | BLD T15/M7, SW6-T |
| DR057-114-40-16-2D-N | SR 76-961 | BLD T15/M7, SW6-T |
| DR058-116-40-16-2D-N | SR 76-961 | BLD T15/M7, SW6-T |
| DR059-118-40-16-2D-N | SR 76-961 | BLD T15/M7, SW6-T |
| DR060-120-40-16-2D-N | SR 76-961 | BLD T15/M7, SW6-T |
