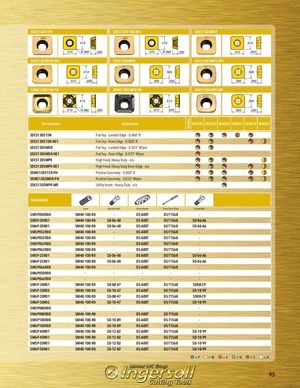

Общий каталог Ingersoll 2016 - 2017 - страница 97
Навигация
Каталог Ingersoll инструмент для нарезания резьбы
Каталог Ingersoll новинки 2021
Общий каталог Ingersoll 2011
Общий каталог Ingersoll 2014
Общий каталог Ingersoll 2013 - 2014
SDES130515N SDES130515N-001 SDES1305MDR
.510 .510 .512
.510 R.060 .200 .510 R.060 .200 .512 .200
SDES1305MDR-001 SDES1305MPR SDES1305MPR-001
| .512 | .505 | .505 | |||
| .512 | .200 | .505 | .200 | .505 | .200 |
SDMS130515R-PH SDMS1305MDR-PH SDXS1305MPR-MR
| .512 | .512 | .505 | ||||
| .512 | R.060 | .200 | .512 | .200 | .505 | .200 |
| ades IN2505 IN2530 IN4005 IN4015 IN4030 IN4035 Application Part Number | |
| SDES130515N | Flat Top - Landed Edge - 0.060“ R |
| SDES130515N-001 | Flat Top - Keen Edge - 0.060“ R |
| SDES1305MDR | Flat Top - Landed Edge - 0.033“ Wiper |
| SDES1305MDR-001 | Flat Top - Keen Edge - 0.033“ Wiper |
| SDES1305MPR | High Feed, Heavy-Duty - n/a |
| SDES1305MPR-001 | High Feed, Heavy-Duty Keen Edge - n/a |
| SDMS130515R-PH | Positive Geometry - 0.060“ R |
| SDMS1305MDR-PH | Positive Geometry - 0.033“ Wiper |
| SDXS1305MPR-MR | Utility Insert - Heavy Duty - n/a |
| HARDWARE | |||||
| Screw | Retention Bolt | Driver Handle | Screw Driver Blade | Coolant Bolt | |
| 5M5P050R00 | SM40-100-R0 | - | DS-A00T | DS-T156B | - |
| 5M5P-20R01 | SM40-100-R0 | SD-06-48 | DS-A00T | DS-T156B | SD-06-A6 |
| 5M6P-20R01 | SM40-100-R0 | SD-06-48 | DS-A00T | DS-T156B | SD-06-A6 |
| 5M5P052R00 | SM40-100-R0 | - | DS-A00T | DS-T156B | - |
| 5M6P052R00 | SM40-100-R0 | - | DS-A00T | DS-T156B | - |
| 5M5P063R00 | SM40-100-R0 | - | DS-A00T | DS-T156B | - |
| 5M6P063R00 | SM40-100-R0 | - | DS-A00T | DS-T156B | - |
| 5M5P-25R01 | SM40-100-R0 | SD-06-48 | DS-A00T | DS-T156B | SD-06-A6 |
| 5M6P-25R01 | SM40-100-R0 | SD-06-48 | DS-A00T | DS-T156B | SD-06-A6 |
| 5M5P066R00 | SM40-100-R0 | - | DS-A00T | DS-T156B | - |
| 5M6P050R00 | - | - | - | - | - |
| 5M6P066R00 | - | - | - | - | - |
| 5M5P-30R01 | SM40-100-R0 | SD-08-47 | DS-A00T | DS-T156B | SD08-C9 |
| 5M5P-30R02 | SM40-100-R0 | SD-10-47 | DS-A00T | DS-T156B | SD-10-99 |
| 5M6P-30R01 | SM40-100-R0 | SD-08-47 | DS-A00T | DS-T156B | SD08-C9 |
| 5M6P-30R02 | SM40-100-R0 | SD-10-47 | DS-A00T | DS-T156B | SD-10-99 |
| 5M5P080R00 | - | - | - | - | - |
| 5M6P080R00 | SM40-100-R0 | - | DS-A00T | DS-T156B | - |
| 5M5P100R00 | SM40-100-R0 | SD-10-89 | DS-A00T | DS-T156B | - |
| 5M6P100R00 | SM40-100-R0 | SD-10-89 | DS-A00T | DS-T156B | - |
| 5M5P-40R01 | SM40-100-R0 | SD-12-82 | DS-A00T | DS-T156B | SD-10-99 |
| 5M6P-40R01 | SM40-100-R0 | SD-12-82 | DS-A00T | DS-T156B | SD-10-99 |
| 5M5P-50R01 | SM40-100-R0 | SD-12-82 | DS-A00T | DS-T156B | SD-10-99 |
| 5M6P-50R01 | SM40-100-R0 | SD-12-82 | DS-A00T | DS-T156B | SD-10-99 |
| = P = M = K = N = S = H |
