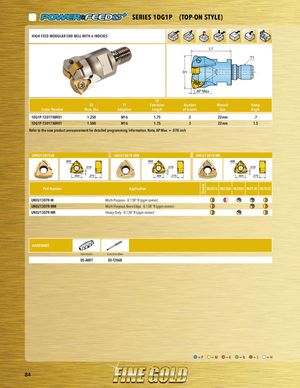

SERIES 1DG1P (TOP-ON STYLE)
HIGH FEED MODULAR END MILL WITH 6 INDEXES
D1
L1 T1
AP Max L2
| D1 | T1 | Extension | Number | Wrench | Ramp | |||||
| Cutter Number | Nom. Dia. | Adaption | Length | of Inserts | Size | Angle | ||||
| 1DG1P-12017X8R01 | 1.250 | M16 | 1.75 | 2 | 22mm | .7 | ||||
| 1DG1P-15017X8R01 | 1.500 | M16 | 1.75 | 3 | 22mm | 1.5 |
Refer to the new product announcement for detailed programming information. Note, AP Max. = .078 inch
UNEU1307R-M UNEU1307R-MM UNEU1307R-MR
.866 .866 .866
| .078 | .078 | .078 | |||
| .484 | .275 | .484 | .275 | .484 | .275 |
Part Number Application ades IN2035 IN2504 IN2505 IN2530 IN7035
UNEU1307R-M Multi-Purpose - 0.138“ R (pgm corner) UNEU1307R-MM Multi-Purpose, Keen Edge - 0.138“ R (pgm corner) UNEU1307R-MR Heavy-Duty - 0.138“ R (pgm corner)
HARDWARE Driver Handle Screw Driver Blade DS-A00T DS-T206B
