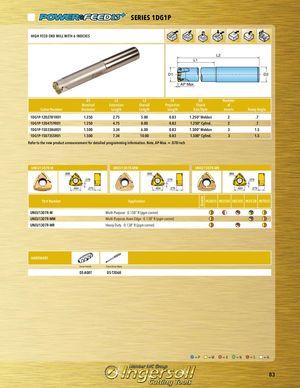

SERIES 1DG1P
HIGH FEED END MILL WITH 6 INDEXES
L2 L1 D1 D2 AP Max.
D1 L2 L3 L4 D2 Number
| Nominal | Extension | Overall | Projection | Shank | of | |||
| Cutter Number Diameter | Length | Length | Length | Size/Style | Inserts | Ramp Angle | ||
| 1DG1P-1202781R01 | 1.250 | 2.75 | 5.00 | 0.83 | 1.250“ Weldon | 2 | .7 | |
| 1DG1P-12047S9R01 | 1.250 | 4.75 | 8.00 | 0.83 | 1.250“ Cylind. | 2 | .7 | |
| 1DG1P-1503386R01 | 1.500 | 3.34 | 6.00 | 0.83 | 1.500“ Weldon | 3 | 1.5 | |
| 1DG1P-15073S5R01 | 1.500 | 7.34 | 10.00 | 0.83 | 1.500“ Cylind. | 3 | 1.5 |
Refer to the new product announcement for detailed programming information. Note, AP Max. = .078 inch
UNEU1307R-M UNEU1307R-MM UNEU1307R-MR
.866 .866 .866
| .078 | .078 | .078 | |||
| .484 | .275 | .484 | .275 | .484 | .275 |
Part Number Application ades IN2035 IN2504 IN2505 IN2530 IN7035
UNEU1307R-M Multi-Purpose - 0.138“ R (pgm corner) UNEU1307R-MM Multi-Purpose, Keen Edge - 0.138“ R (pgm corner) UNEU1307R-MR Heavy-Duty - 0.138“ R (pgm corner)
HARDWARE Driver Handle Screw Driver Blade DS-A00T DS-T206B
