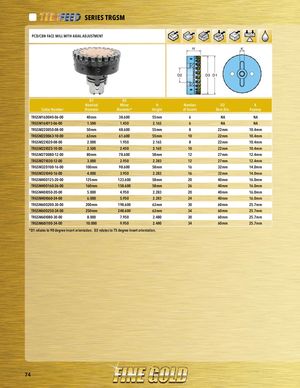

SERIES TRGSM
PCD/CBN FACE MILL WITH AXIAL ADJUSTMENT H K
D2 D3 D1
D1 D3
| Nominal | Minor | H | Number | D2 | K | ||
| Cutter Number Diameter | Diameter* | Height | of Inserts | Bore Dia. | Keyway | ||
| TRGSM16D040-06-00 | 40mm | 38.600 | 55mm | 6 | NA | NA | |
| TRGSM16I015-06-00 | 1.500 | 1.450 | 2.165 | 6 | NA | NA | |
| TRGSM22D050-08-00 | 50mm | 48.600 | 55mm | 8 | 22mm | 10.4mm | |
| TRGSM22D063-10-00 | 63mm | 61.600 | 55mm | 10 | 22mm | 10.4mm | |
| TRGSM22I020-08-00 | 2.000 | 1.950 | 2.165 | 8 | 22mm | 10.4mm | |
| TRGSM22I025-10-00 | 2.500 | 2.450 | 2.165 | 10 | 22mm | 10.4mm | |
| TRGSM27D080-12-00 | 80mm | 78.600 | 58mm | 12 | 27mm | 12.4mm | |
| TRGSM27I030-12-00 | 3.000 | 2.950 | 2.283 | 12 | 27mm | 12.4mm | |
| TRGSM32D100-16-00 | 100mm | 98.600 | 58mm | 16 | 32mm | 14.0mm | |
| TRGSM32I040-16-00 | 4.000 | 3.950 | 2.283 | 16 | 32mm | 14.0mm | |
| TRGSM40D125-20-00 | 125mm | 123.600 | 58mm | 20 | 40mm | 16.0mm | |
| TRGSM40D160-26-00 | 160mm | 158.600 | 58mm | 26 | 40mm | 16.0mm | |
| TRGSM40I050-20-00 | 5.000 | 4.950 | 2.283 | 20 | 40mm | 16.0mm | |
| TRGSM40I060-24-00 | 6.000 | 5.950 | 2.283 | 24 | 40mm | 16.0mm | |
| TRGSM60D200-30-00 | 200mm | 198.600 | 63mm | 30 | 60mm | 25.7mm | |
| TRGSM60D250-34-00 | 250mm | 248.600 | 63mm | 34 | 60mm | 25.7mm | |
| TRGSM60I080-30-00 | 8.000 | 7.950 | 2.480 | 30 | 60mm | 25.7mm | |
| TRGSM60I100-34-00 | 10.000 | 9.950 | 2.480 | 34 | 60mm | 25.7mm |
*D1 relates to 90 degree insert orientation. D3 relates to 75 degree insert orientation.
