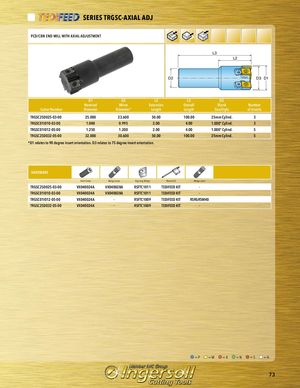

SERIES TRGSC-AXIAL ADJ
PCD/CBN END MILL WITH AXIAL ADJUSTMENT
L3 L2
D2 D3 D1
| D1 | D3 | L2 | L3 | D2 | |||||
| Nominal | Minor | Extension | Overall | Shank | Number | ||||
| Cutter Number Diameter | Diameter“ | Length | Length | Size/Style | of Inserts | ||||
| TRGSC25D025-03-00 | 25.000 | 23.600 | 50.00 | 100.00 | 25mm Cylind. | 3 | |||
| TRGSC01I010-03-00 | 1.000 | 0.995 | 2.00 | 4.00 | 1.000“ Cylind. | 3 | |||
| TRGSC01I012-05-00 | 1.250 | 1.200 | 2.00 | 4.00 | 1.000“ Cylind. | 5 | |||
| TRGSC25D032-05-00 | 32.000 | 30.600 | 50.00 | 100.00 | 25mm Cylind. | 5 |
*D1 relates to 90 degree insert orientation. D3 relates to 75 degree insert orientation.
HARDWARE
| Insert Screw | Wedge Screw | Adjusting Wedge | Wrench Kit | Wedge screw | ||||
| TRGSC25D025-03-00 | VX040024A | VX040028A | RSFTC1011 | TEDIFEED KIT | - | |||
| TRGSC01I010-03-00 | VX040024A | VX040028A | RSFTC1011 | TEDIFEED KIT | - | |||
| TRGSC01I012-05-00 | VX040024A | - | RSFTC1009 | TEDIFEED KIT | RSRGR5M40 | |||
| TRGSC25D032-05-00 | VX040024A | - | RSFTC1009 | TEDIFEED KIT | - |
