- 90° face mill for roughing and finishing
- 85° face mill for roughing with less face contact
- 8 positive cutting edges
- .50” max depth of cut, .24” depth of cut along shoulder
- Medium and high density cutter offerings
- 2.00 – 8.00” diameter range

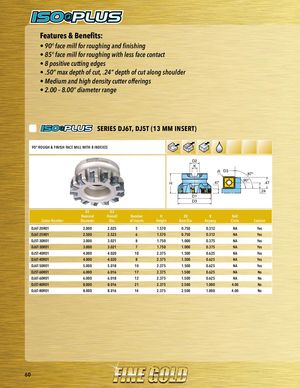

SERIES DJ6T, DJ5T (13 MM INSERT)
90° ROUGH & FINISH FACE MILL WITH 8 INDEXES D2 K R D3 87° .47 90° H .47 .24 D1 D3 D1 D3
| Nominal | Overall | Number | H | D2 | K | Bolt | ||
| Cutter Number Diameter | Dia. | of Inserts | Height | Bore Dia. | Keyway | Circle | Coolant | |
| DJ6T-20R01 | 2.000 | 2.025 | 5 | 1.570 | 0.750 | 0.312 | NA | Yes |
| DJ6T-25R01 | 2.500 | 2.523 | 6 | 1.570 | 0.750 | 0.312 | NA | Yes |
| DJ5T-30R01 | 3.000 | 3.021 | 8 | 1.750 | 1.000 | 0.375 | NA | Yes |
| DJ6T-30R01 | 3.000 | 3.021 | 7 | 1.750 | 1.000 | 0.375 | NA | Yes |
| DJ5T-40R01 | 4.000 | 4.020 | 10 | 2.375 | 1.500 | 0.625 | NA | Yes |
| DJ6T-40R01 | 4.000 | 4.020 | 8 | 2.375 | 1.500 | 0.625 | NA | Yes |
| DJ6T-50R01 | 5.000 | 5.018 | 10 | 2.375 | 1.500 | 0.625 | NA | Yes |
| DJ5T-60R01 | 6.000 | 6.016 | 17 | 2.375 | 1.500 | 0.625 | NA | No |
| DJ6T-60R01 | 6.000 | 6.018 | 12 | 2.375 | 1.500 | 0.625 | NA | No |
| DJ5T-80R01 | 8.000 | 8.016 | 21 | 2.375 | 2.500 | 1.000 | 4.00 | No |
| DJ6T-80R01 | 8.000 | 8.016 | 14 | 2.375 | 2.500 | 1.000 | 4.00 | No |
