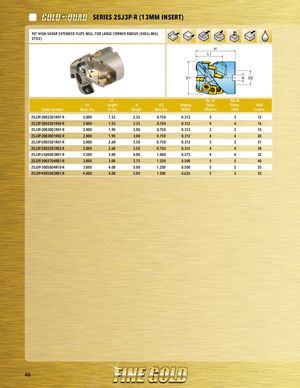

90° HIGH SHEAR EXTENDED FLUTE MILL, FOR LARGE CORNER RADIUS (SHELL MILL STYLE)
| H L1 | ||||||||
| D1 | K D2 | |||||||
| D1 | L1 Length | H | D2 | Keyway | No. of Flutes | No. of Flutes | Total | |
| Cutter Number | Nom. Dia. | of Cut | Height | Bore Dia. | Width | Effective | Total | Inserts |
| 25J3P-20023D1R01-R | 2.000 | 1.53 | 2.35 | 0.750 | 0.312 | 3 | 3 | 12 |
| 25J3P-20023D1R02-R | 2.000 | 1.53 | 2.35 | 0.750 | 0.312 | 4 | 4 | 16 |
| 25J3P-20030D1R01-R | 2.000 | 1.90 | 3.00 | 0.750 | 0.312 | 3 | 3 | 15 |
| 25J3P-20030D1R02-R | 2.000 | 1.90 | 3.00 | 0.750 | 0.312 | 4 | 4 | 20 |
| 25J3P-20035D1R01-R | 2.000 | 2.60 | 3.50 | 0.750 | 0.312 | 3 | 3 | 21 |
| 25J3P-20035D1R02-R | 2.000 | 2.60 | 3.50 | 0.750 | 0.312 | 4 | 4 | 28 |
| 25J3P-25040D3R01-R | 2.500 | 3.00 | 4.00 | 1.000 | 0.375 | 4 | 4 | 32 |
| 25J3P-30037D4R01-R | 3.000 | 3.00 | 3.75 | 1.250 | 0.500 | 5 | 5 | 40 |
| 25J3P-30050D4R10-R | 3.000 | 4.08 | 5.00 | 1.250 | 0.500 | 5 | 5 | 55 |
| 25J3P-40050D5R01-R | 4.000 | 4.08 | 5.00 | 1.500 | 0.625 | 5 | 5 | 55 |
