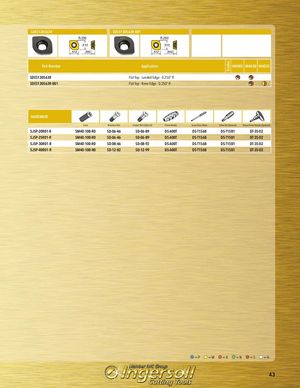

Общий каталог Ingersoll 2016 - 2017

SDES130563R SDES130563R-001 R.250 R.250 .512 .512

.512 .200 .512 .200

Part Number Application ades IN4005 IN4030 IN4035

SDES130563R Flat Top - Landed Edge - 0.250“ R SDES130563R-001 Flat Top - Keen Edge - 0.250“ R

HARDWARE

		Screw	Retention Bolt	Coolant Bolt (Optional)	Driver Handle	Screw Driver Blade	Driver Bit (Optional)	Torque Driver Handle (Optional)
5J5P-20R01-R	SM40-100-R0		SD-06-46	SD-06-89	DS-A00T	DS-T156B	DS-T15B1		DT-35-02
5J5P-25R01-R	SM40-100-R0		SD-06-46	SD-06-89	DS-A00T	DS-T156B	DS-T15B1		DT-35-02
5J5P-30R01-R	SM40-100-R0		SD-08-46	SD-08-92	DS-A00T	DS-T156B	DS-T15B1		DT-35-02
5J5P-40R01-R	SM40-100-R0		SD-12-82	SD-12-99	DS-A00T	DS-T156B	DS-T15B1		DT-35-02

Общий каталог Ingersoll 2016 - 2017 - страница 45
