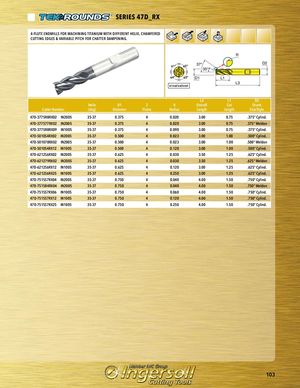

SERIES 47D_RX
4-FLUTE ENDMILLS FOR MACHINING TITANIUM WITH DIFFERENT HELIX, CHAMFERED CUTTING EDGES & VARIABLE PITCH FOR CHATTER DAMPENING.
37° 35° D1 L1
R D2
L3
| Helix | D1 | Z | R | L3 Overall | L1 Cut | D2 Shank | |
| Cutter Number | (deg) | Diameter | Flutes | Radius | Length | Length | Size/Style |
| 47D-3775R8RX02 IN2005 | 35-37 | 0.375 | 4 | 0.020 | 3.00 | 0.75 | .375“ Cylind. |
| 47D-377577RX02 IN2005 | 35-37 | 0.375 | 4 | 0.020 | 3.00 | 0.75 | .375“ Weldon |
| 47D-3775R8RX09 IN1005 | 35-37 | 0.375 | 4 | 0.090 | 3.00 | 0.75 | .375“ Cylind. |
| 47D-5010S4RX02 IN2005 | 35-37 | 0.500 | 4 | 0.023 | 3.00 | 1.00 | .500“ Cylind. |
| 47D-501078RX02 IN2005 | 35-37 | 0.500 | 4 | 0.023 | 3.00 | 1.00 | .500“ Weldon |
| 47D-5010S4RX12 IN1005 | 35-37 | 0.500 | 4 | 0.120 | 3.00 | 1.00 | .500“ Cylind. |
| 47D-6212S6RX02 IN2005 | 35-37 | 0.625 | 4 | 0.030 | 3.50 | 1.25 | .625“ Cylind. |
| 47D-621279RX02 IN2005 | 35-37 | 0.625 | 4 | 0.030 | 3.50 | 1.25 | .625“ Weldon |
| 47D-6212S6RX12 IN1005 | 35-37 | 0.625 | 4 | 0.120 | 3.00 | 1.25 | .625“ Cylind. |
| 47D-6212S6RX25 IN1005 | 35-37 | 0.625 | 4 | 0.250 | 3.00 | 1.25 | .625“ Cylind. |
| 47D-7515S7RX04 IN2005 | 35-37 | 0.750 | 4 | 0.040 | 4.00 | 1.50 | .750“ Cylind. |
| 47D-751584RX04 IN2005 | 35-37 | 0.750 | 4 | 0.040 | 4.00 | 1.50 | .750“ Weldon |
| 47D-7515S7RX06 IN1005 | 35-37 | 0.750 | 4 | 0.060 | 4.00 | 1.50 | .750“ Cylind. |
| 47D-7515S7RX12 IN1005 | 35-37 | 0.750 | 4 | 0.120 | 4.00 | 1.50 | .750“ Cylind. |
| 47D-7515S7RX25 IN1005 | 35-37 | 0.750 | 4 | 0.250 | 4.00 | 1.50 | .750“ Cylind. |
