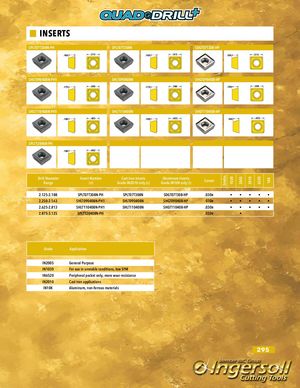

Общий каталог Ingersoll 2013 - 2014 - страница 295

Grades 1030 2005 2010 6520 10K Aluminum Inserts Aluminum Inserts INSERTS Aluminum Inserts .156 .313 SPLT07T308N-PH SPLT07T308N SDGT07T308-HP .156 .313 .160 .313 .160 .313 .156 .313 .169 .386 SHLT090408N-PH1 SHLT090408N SHGT090408-HP .175 .386 .175 .386 .169 .386 .169 .386 SHLT110408N-PH1 SHLT110408N SHGT110408-HP .196 .453 .196 .453 .189 .453 .189 .453 .189 .453 SPLT120408-PH .198 .492 Drill DiameterRange Insert Number(n) Cast Iron Inserts Aluminum InsertsGrade IN2010 only (s)Grade IN10K only (l)Corner 2.125-2.188 SPLT07T308N-PH SPLT07T308N SDGT07T308-HP .030r • • • • • 2.250-2.563 SHLT090408N-PH1 SHLT090408N SHGT090408-HP .030r • • • • • 2.625-2.813 SHLT110408N-PH1 SHLT110408N SHGT110408-HP .030r • • • • • 2.875-3.125 SPLT120408N-PH - - .030r • Grade Application IN2005 General Purpose IN1030 For use in unstable conditions, low SFM IN6520 Peripheral pocket only, more wear resistance IN2010 Cast iron applications IN10K Aluminum, non-ferrous materials 295
