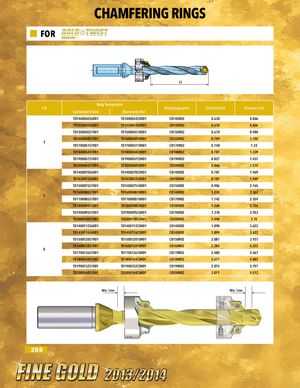

CHAMFERING RINGS FOR L5 Body Designation L:D Ring Designation L5 (min) inch L5 (max) inch Cylindrical Shank Shank with Flat TD1400042S6R01 TD1400042C0R01 CB140R02 0.630 0.866 TD1450043S6R01 TD1450043C0R01 CB140R02 0.630 0.866 TD1500045S7R01 TD150004518R01 CB150R02 0.670 0.984 TD1600048S7R01 TD160004818R01 CB160R02 0.709 1.102 3 TD1700051S7R01 TD170005118R01 CB170R02 0.748 1.22 TD1800054S1R01 TD1800054C8R01 CB180R02 0.787 1.339 TD1900057S1R01 TD1900057C8R01 CB190R02 0.827 1.457 TD2000060S1R01 TD2000060C8R01 CB200R02 0.866 1.575 TD1400070S6R01 TD1400070C0R01 CB140R02 0.787 1.969 TD1450072S6R01 TD1450072C0R01 CB140R02 0.787 1.969 TD1500075S7R01 TD150007518R01 CB150R02 0.906 2.165 TD1600080S7R01 TD160008018R01 CB160R02 1.024 2.362 5 TD1700085S7R01 TD170008518R01 CB170R02 1.142 2.559 TD1800090S1R01 TD1800090C8R01 CB180R02 1.260 2.756 TD1900095S1R01 TD1900095C8R01 CB190R02 1.378 2.953 TD2000100S1R01 TD2000100C8R01 CB200R02 1.496 3.15 TD1400112S6R01 TD1400112C0R01 CB140R02 1.890 3.622 TD1450116S6R01 TD1450116C0R01 CB140R02 1.890 3.622 TD1500120S7R01 TD150012018R01 CB150R02 2.087 3.937 TD1600128S7R01 TD160012818R01 CB160R02 2.283 4.252 8 TD1700136S7R01 TD170013618R01 CB170R02 2.480 4.567 TD1800144S1R01 TD1800144C8R01 CB180R02 2.677 4.882 TD1900152S1R01 TD1900152C8R01 CB190R02 2.874 5.197 TD2000160S1R01 TD2000160C8R01 CB200R02 3.071 5.512 Min. 1mm Min. 1mm 288
