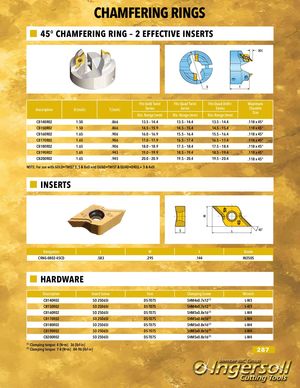

CHAMFERING RINGS 45° CHAMFERING RING – 2 EFFECTIVE INSERTS DOC D T Fits Gold Twist Fits Quad Twist Fits Quad Drill+ Maximum Description D (inch) T (inch) Series Series Series Chamfer Dia. Range (mm) Dia. Range (mm) Dia. Range (mm) Size CB140R02 1.50 .866 13.5 – 14.4 13.5 – 14.4 13.5 – 14.4 .118 x 45° CB150R02 1.50 .866 14.5 – 15.9 14.5 – 15.4 14.5 – 15.4 .118 x 45° CB160R02 1.65 .906 16.0 – 16.9 15.5 – 16.4 15.5 – 16.4 .118 x 45° CB170R02 1.65 .906 17.0 – 17.9 16.5 – 17.4 16.5 – 17.4 .118 x 45° CB180R02 1.65 .906 18.0 – 18.9 17.5 – 18.4 17.5 – 18.4 .118 x 45° CB190R02 1.65 .945 19.0 – 19.9 18.5 – 19.4 18.5 – 19.4 .118 x 45° CB200R02 1.65 .945 20.0 – 20.9 19.5 – 20.4 19.5 – 20.4 .118 x 45° NOTE: For use with GOLD•TWIST 3, 5 & 8xD and QUAD•TWIST & QUAD•DRILL+ 3 & 4xD. INSERTS W S L 45° Desigation L W S Grade CRNG-0802-45CD .583 .295 .144 IN2505 HARDWARE Description Insert Screw Torx Clamping Screw Wrench CB140R02 SO 25065I DS-T07S SHM4x0.7x12(1) L-W3 CB150R02 SO 25065I DS-T07S SHM4x0.7x12(1) L-W3 CB160R02 SO 25065I DS-T07S SHM5x0.8x16(2) L-W4 CB170R02 SO 25065I DS-T07S SHM5x0.8x16(2) L-W4 CB180R02 SO 25065I DS-T07S SHM5x0.8x16(2) L-W4 CB190R02 SO 25065I DS-T07S SHM5x0.8x16(2) L-W4 CB200R02 SO 25065I DS-T07S SHM5x0.8x16(2) L-W4 (1) Clamping torque: 4 [N•m] 36 [lbf-in] (2) Clamping torque: 7-8 [N•m] 84-96 [lbf-in] 287
