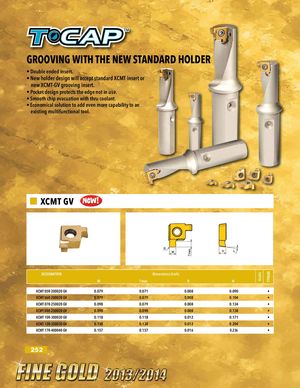

GROOVING WITH THE NEW STANDARD HOLDER • Double ended insert. • New holder design will accept standard XCMT insert or new XCMT-GV grooving insert. • Pocket design protects the edge not in use. • Smooth chip evacuation with thru coolant. • Economical solution to add even more capability to an existing multifunctional tool. XCMT GV R W H DESIGNATION Dimensions (Inch) W Tmax R H XCMT 05R-200020 GV 0.079 0.071 0.008 0.090 • XCMT 06R-200020 GV 0.079 0.079 0.008 0.104 • XCMT 07R-250020 GV 0.098 0.079 0.008 0.134 • XCMT 08R-250020 GV 0.098 0.098 0.008 0.138 • XCMT 10R-300030 GV 0.118 0.118 0.012 0.171 • XCMT 13R-350030 GV 0.138 0.138 0.012 0.204 • XCMT 17R-400040 GV 0.157 0.157 0.016 0.236 • 252 Tmax 7° Grade TT9080
