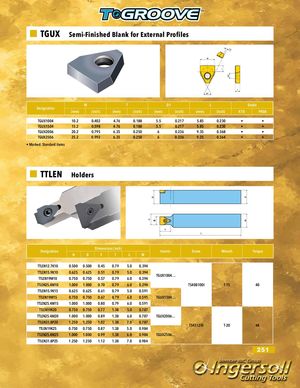

Общий каталог Ingersoll 2013 - 2014 - страница 251
Навигация
Каталог Ingersoll инструмент для нарезания резьбы
Каталог Ingersoll новинки 2021
Общий каталог Ingersoll 2016 - 2017
Общий каталог Ingersoll 2011
Общий каталог Ingersoll 2014
TGUX
Полуфабрикатная заготовка для наружных профилей
| Обозначение | W (mm) | W (inch) | T (mm) | T (inch) | D1 (mm) | D1 (inch) | L (mm) | L (inch) | Grade K10 | Grade P40A |
|---|---|---|---|---|---|---|---|---|---|---|
| TGUX1004 | 10.2 | 0.402 | 4.76 | 0.188 | 5.5 | 0.217 | 5.85 | 0.230 | • | • |
| TGUX1504 | 15.2 | 0.598 | 4.76 | 0.188 | 5.5 | 0.217 | 5.85 | 0.230 | • | • |
| TGUX2006 | 20.2 | 0.795 | 6.35 | 0.250 | 6 | 0.236 | 9.35 | 0.368 | • | • |
| TGUX2506 | 25.2 | 0.992 | 6.35 | 0.250 | 6 | 0.236 | 9.25 | 0.364 | • | • |
• Отмечено: стандартные позиции.
TTLEN
Державки
| Обозначение | H (inch) | B (inch) | F (inch) | T (inch) | L (inch) | W (inch) | Пластины | Винт | Ключ | Момент затяжки |
|---|---|---|---|---|---|---|---|---|---|---|
| TTLEN12.7K10 | 0.500 | 0.500 | 0.45 | 0.79 | 5.0 | 0.394 | TGUX1004… | TS40B100I | T-15 | 40 |
| TTLEN15.9K10 | 0.625 | 0.625 | 0.51 | 0.79 | 5.0 | 0.394 | ||||
| TTLEN19M10 | 0.750 | 0.750 | 0.57 | 0.79 | 6.0 | 0.394 | ||||
| TTLEN25.4M10 | 1.000 | 1.000 | 0.70 | 0.79 | 6.0 | 0.394 | TGUX1504… | |||
| TTLEN15.9K15 | 0.625 | 0.625 | 0.61 | 0.79 | 5.0 | 0.591 | ||||
| TTLEN19M15 | 0.750 | 0.750 | 0.67 | 0.79 | 6.0 | 0.591 | TGUX2006… | |||
| TTLEN25.4M15 | 1.000 | 1.000 | 0.80 | 0.79 | 6.0 | 0.591 | ||||
| TTLEN19K20 | 0.750 | 0.750 | 0.77 | 1.38 | 5.0 | 0.787 | TGUX2006… | TS45120I | T-20 | 44 |
| TTLEN25.4M20 | 1.000 | 1.000 | 0.89 | 1.38 | 6.0 | 0.787 | ||||
| TTLEN31.8P20 | 1.250 | 1.250 | 1.02 | 1.38 | 7.0 | 0.787 | ||||
| TTLEN19K25 | 0.750 | 0.750 | 0.87 | 1.38 | 5.0 | 0.984 | TGUX2506… | |||
| TTLEN25.4M25 | 1.000 | 1.000 | 0.99 | 1.38 | 6.0 | 0.984 | ||||
| TTLEN31.8P25 | 1.250 | 1.250 | 1.12 | 1.38 | 7.0 | 0.984 |
