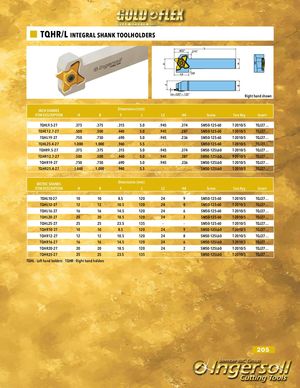

Общий каталог Ingersoll 2013 - 2014 - страница 205

TQHR/L INTEGRAL SHANK TOOLHOLDERS .905" .276" H4 w=.020"~.125" Right hand shown INCH SHANKS Dimensions (inch) ITEM DESCRIPTION H B F L L2 H4 Screw Torx Key Insert TQHL9.5-27 .375 .375 .315 5.0 .945 .374 SM50-125-60 T-2010/5 TQJ27… TQHL12.7-27 .500 .500 .440 5.0 .945 .287 SM50-125-60 T-2010/5 TQJ27… TQHL19-27 .750 .750 .690 5.0 .945 .236 SM50-125-60 T-2010/5 TQJ27… TQHL25.4-27 1.000 1.000 .940 5.5 - - SM50-125-60 T-2010/5 TQJ27… TQHR9.5-27 .375 .375 .315 5.0 .945 .374 SM50-125L60 T-2010/5 TQJ27… TQHR12.7-27 .500 .500 .440 5.0 .945 .287 SM50-125L60 T-2010/5 TQJ27… TQHR19-27 .750 .750 .690 5.0 .945 .236 SM50-125L60 T-2010/5 TQJ27… TQHR25.4-27 1.000 1.000 .940 5.5 - - SM50-125L60 T-2010/5 TQJ27… METRIC SHANKS Dimensions (mm) ITEM DESCRIPTION H B F L L2 H4 Screw Torx Key Insert TQHL10-27 10 10 8.5 120 24 9 SM50-125-60 T-2010/5 TQJ27… TQHL12-27 12 12 10.5 120 24 8 SM50-125-60 T-2010/5 TQJ27… TQHL16-27 16 16 14.5 120 24 6 SM50-125-60 T-2010/5 TQJ27… TQHL20-27 20 20 18.5 120 24 2 SM50-125-60 T-2010/5 TQJ27… TQHL25-27 25 25 23.5 135 - - SM50-125-60 T-2010/5 TQJ27… TQHR10-27 10 10 8.5 120 24 9 SM50-125L60 T-2010/5 TQJ27… TQHR12-27 12 12 10.5 120 24 8 SM50-125L60 T-2010/5 TQJ27… TQHR16-27 16 16 14.5 120 24 6 SM50-125L60 T-2010/5 TQJ27… TQHR20-27 20 20 18.5 120 24 2 SM50-125L60 T-2010/5 TQJ27… TQHR25-27 25 25 23.5 135 - - SM50-125L60 T-2010/5 TQJ27… TQHL - Left hand holders TQHR - Right hand holders 205
