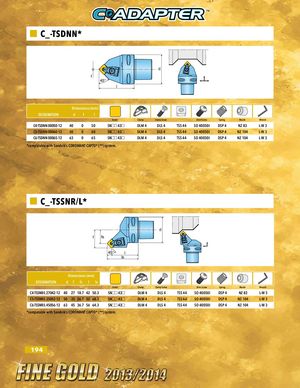

C_-TSDNN* d f 45° l Dimensions (mm) DESIGNATION d f l Insert Clamp Clamp Screw Shim Screw Spring Nozzle Wrench C4-TSDNN 00050-12 40 0 50 SN 43 DLM 4 DLS 4 TSS 44 SO 40050I DSP 4 NZ 83 L-W 3 C5-TSDNN 00060-12 50 0 60 SN 43 DLM 4 DLS 4 TSS 44 SO 40050I DSP 4 NZ 104 L-W 3 C6-TSDNN 00065-12 63 0 65 SN 43 DLM 4 DLS 4 TSS 44 SO 40050I DSP 4 NZ 104 L-W 3 *compatable with Sandvik’s COROMANT CAPTO* (**) system. C_-TSSNR/L* d f fs 45° l ls Dimensions (mm) DESIGNATION d f fs l ls Insert Clamp Clamp Screw Shim Screw Spring Nozzle Wrench C4-TSSNR/L 27042-12 40 27 18.7 42 50.3 SN 43 DLM 4 DLS 4 TSS 44 SO 40050I DSP 4 NZ 83 L-W 3 C5-TSSNR/L 35052-12 50 35 26.7 52 60.3 SN 43 DLM 4 DLS 4 TSS 44 SO 40050I DSP 4 NZ 104 L-W 3 C6-TSSNR/L 45056-12 63 45 36.7 56 64.3 SN 43 DLM 4 DLS 4 TSS 44 SO 40050I DSP 4 NZ 104 L-W 3 *compatable with Sandvik’s COROMANT CAPTO* (**) system. 194
