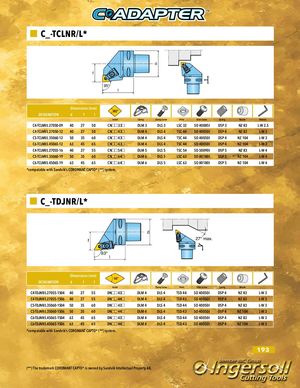

C_-TCLNR/L* d f 95° l Dimensions (mm) DESIGNATION d f l Insert Clamp Clamp Screw Shim Shim Screw Spring Nozzle Wrench C4-TCLNR/L 27050-09 40 27 50 CN 33 DLM 3 DLS 3 LSC 32 SO 40085I DSP 3 NZ 83 L-W 2.5 C4-TCLNR/L 27050-12 40 27 50 CN 43 DLM 4 DLS 4 TSC 44 SO 40050I DSP 4 NZ 83 L-W 3 C5-TCLNR/L 35060-12 50 35 60 CN 43 DLM 4 DLS 4 TSC 44 SO 40050I DSP 4 NZ 104 L-W 3 C6-TCLNR/L 45065-12 63 45 65 CN 43 DLM 4 DLS 4 TSC 44 SO 40050I DSP 4 NZ 104 L-W 3 C4-TCLNR/L 27055-16 40 27 55 CN 54 DLM 5 DLS 5 TSC 54 SO 50090I DSP 5 NZ 83 L-W 4 C5-TCLNR/L 35060-19 50 35 60 CN 64 DLM 6 DLS 5 LSC 63 SO 80180I DSP 5 NZ 104 L-W 4 C6-TCLNR/L 45065-19 63 45 65 CN 64 DLM 6 DLS 5 LSC 63 SO 80180I DSP 5 NZ 104 L-W 4 *compatable with Sandvik’s COROMANT CAPTO* (**) system. C_-TDJNR/L* d f 27° max. 93° l Dimensions (mm) DESIGNATION d f l Insert Clamp Screw Shim Shim Screw Spring Nozzle C4-TDJNR/L 27055-1504 40 27 55 DN 43 DLM 4 DLS 4 TSD 44 SO 40050I DSP 4 NZ 83 L-W 3 C4-TDJNR/L 27055-1506 40 27 55 DN 44 DLM 4 DLS 4 TSD 43 SO 40050I DSP 4 NZ 83 L-W 3 C5-TDJNR/L 35060-1504 50 35 60 DN 43 DLM 4 DLS 4 TSD 44 SO 40050I DSP 4 NZ 83 L-W 3 C5-TDJNR/L 35060-1506 50 35 60 DN 44 DLM 4 DLS 4 TSD 43 SO 40050I DSP 4 NZ 104 L-W 3 C6-TDJNR/L 45065-1504 63 45 65 DN 43 DLM 4 DLS 4 TSD 44 SO 40050I DSP 4 NZ 83 L-W 3 C6-TDJNR/L 45065-1506 63 45 65 DN 44 DLM 4 DLS 4 TSD 43 SO 40050I DSP 4 NZ 104 L-W 3 *compatable with Sandvik’s COROMANT CAPTO* (**) system. 193 (**) The trademark COROMANT CAPTO® is owned by Sandvik Intellectual Property AB.
