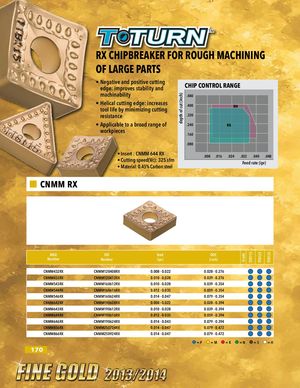

Общий каталог Ingersoll 2013 - 2014 - страница 170

depth of cut (inch) Grade TT8115 TT8125 TT8135 RX CHIPBREAKER FOR ROUGH MACHINING OF LARGE PARTS • Negative and positive cuttingedge: improves stability and CHIP CONTROL RANGE machinability .480 • Helical cutting edge: increases .400tool life by minimizing cuttingRH resistance .320 • Applicable to a broad range of .240 RX workpieces .160 .080 • Insert : CNMM 644 RX .008 .016 .024 .032 .040 .048 • Cutting speed(Vc): 325 sfm Feed rate (ipr) • Material: 0.45% Carbon steel CNMM RX ANSI ISO feed DOC Number Number (ipr) (inch) CNMM432RX CNMM120408RX 0.008 - 0.022 0.028 - 0.276 CNMM433RX CNMM120412RX 0.010 - 0.028 0.039 - 0.276 CNMM543RX CNMM160612RX 0.010 - 0.028 0.039 - 0.354 CNMM544RX CNMM160616RX 0.012 - 0.035 0.059 - 0.354 CNMM546RX CNMM160624RX 0.014 - 0.047 0.079 - 0.354 CNMM642RX CNMM190608RX 0.008 - 0.022 0.028 - 0.394 CNMM643RX CNMM190612RX 0.010 - 0.028 0.039 - 0.394 CNMM644RX CNMM190616RX 0.012 - 0.035 0.059 - 0.394 CNMM646RX CNMM190624RX 0.014 - 0.043 0.079 - 0.394 CNMM856RX CNMM250724RX 0.014 - 0.047 0.079 - 0.472 CNMM866RX CNMM250924RX 0.014 - 0.047 0.079 - 0.472 =P =M =K =N =S =H 170
