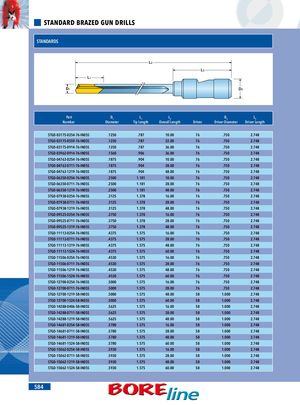

СТАНДАРТНЫЕ ПАЯНЫЕ РУЖЕЙНЫЕ СВЁРЛА
СТАНДАРТЫ
| Номер детали | D1, диаметр | L1, длина головки | L2, общая длина | Привод | D2, диаметр привода | L3, длина привода |
|---|---|---|---|---|---|---|
| STGD-03175-0254-76-IN05S | .1250 | .787 | 10.00 | 76 | .750 | 2.748 |
| STGD-03175-0559-76-IN05S | .1250 | .787 | 22.00 | 76 | .750 | 2.748 |
| STGD-03175-0914-76-IN05S | .1250 | .787 | 36.00 | 76 | .750 | 2.748 |
| STGD-03962-0914-76-IN05S | .1560 | .906 | 36.00 | 76 | .750 | 2.748 |
| STGD-04763-0254-76-IN05S | .1875 | .904 | 10.00 | 76 | .750 | 2.748 |
| STGD-04763-0711-76-IN05S | .1875 | .904 | 28.00 | 76 | .750 | 2.748 |
| STGD-04763-1219-76-IN05S | .1875 | .904 | 48.00 | 76 | .750 | 2.748 |
| STGD-06350-0254-76-IN05S | .2500 | 1.181 | 10.00 | 76 | .750 | 2.748 |
| STGD-06350-0711-76-IN05S | .2500 | 1.181 | 28.00 | 76 | .750 | 2.748 |
| STGD-06350-1219-76-IN05S | .2500 | 1.181 | 48.00 | 76 | .750 | 2.748 |
| STGD-07938-0254-76-IN05S | .3125 | 1.378 | 16.00 | 76 | .750 | 2.748 |
| STGD-07938-0711-76-IN05S | .3125 | 1.378 | 28.00 | 76 | .750 | 2.748 |
| STGD-07938-1219-76-IN05S | .3125 | 1.378 | 48.00 | 76 | .750 | 2.748 |
| STGD-09525-0254-76-IN05S | .3750 | 1.378 | 16.00 | 76 | .750 | 2.748 |
| STGD-09525-0711-76-IN05S | .3750 | 1.378 | 28.00 | 76 | .750 | 2.748 |
| STGD-09525-1219-76-IN05S | .3750 | 1.378 | 48.00 | 76 | .750 | 2.748 |
| STGD-11113-0254-76-IN05S | .4375 | 1.575 | 16.00 | 76 | .750 | 2.748 |
| STGD-11113-0711-76-IN05S | .4375 | 1.575 | 28.00 | 76 | .750 | 2.748 |
| STGD-11113-1219-76-IN05S | .4375 | 1.575 | 48.00 | 76 | .750 | 2.748 |
| STGD-11113-1524-76-IN05S | .4375 | 1.575 | 60.00 | 76 | .750 | 2.748 |
| STGD-11506-0254-76-IN05S | .4530 | 1.575 | 16.00 | 76 | .750 | 2.748 |
| STGD-11506-0711-76-IN05S | .4530 | 1.575 | 28.00 | 76 | .750 | 2.748 |
| STGD-11506-1219-76-IN05S | .4530 | 1.575 | 48.00 | 76 | .750 | 2.748 |
| STGD-11506-1524-76-IN05S | .4530 | 1.575 | 60.00 | 76 | .750 | 2.748 |
| STGD-12700-0254-76-IN05S | .5000 | 1.575 | 16.00 | 76 | .750 | 2.748 |
| STGD-12700-0711-76-IN05S | .5000 | 1.575 | 28.00 | 76 | .750 | 2.748 |
| STGD-12700-1219-58-IN05S | .5000 | 1.575 | 48.00 | 58 | 1.000 | 2.748 |
| STGD-12700-1524-58-IN05S | .5000 | 1.575 | 60.00 | 58 | 1.000 | 2.748 |
| STGD-14288-0406-58-IN05S | .5625 | 1.575 | 16.00 | 58 | 1.000 | 2.748 |
| STGD-14288-0711-58-IN05S | .5625 | 1.575 | 28.00 | 58 | 1.000 | 2.748 |
| STGD-14288-1219-58-IN05S | .5625 | 1.575 | 48.00 | 58 | 1.000 | 2.748 |
| STGD-14681-0254-58-IN05S | .5780 | 1.575 | 16.00 | 58 | 1.000 | 2.748 |
| STGD-14681-0711-58-IN05S | .5780 | 1.575 | 28.00 | 58 | 1.000 | 2.748 |
| STGD-14681-1219-58-IN05S | .5780 | 1.575 | 48.00 | 58 | 1.000 | 2.748 |
| STGD-14681-1524-58-IN05S | .5780 | 1.575 | 60.00 | 58 | 1.000 | 2.748 |
| STGD-15062-0254-58-IN05S | .5930 | 1.575 | 16.00 | 58 | 1.000 | 2.748 |
| STGD-15062-0711-58-IN05S | .5930 | 1.575 | 28.00 | 58 | 1.000 | 2.748 |
| STGD-15062-1219-58-IN05S | .5930 | 1.575 | 48.00 | 58 | 1.000 | 2.748 |
| STGD-15062-1524-58-IN05S | .5930 | 1.575 | 60.00 | 58 | 1.000 | 2.748 |
