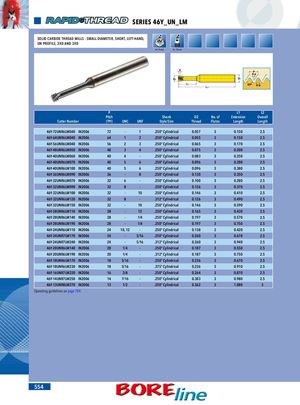

SERIES 46Y_UN_LM
Твердосплавные цельные резьбовые фрезы малого диаметра, короткие, левого вращения, профиль UN, 2xD и 3xD
| Номер фрезы | Шаг (TPI) | UNC | UNF | Хвостовик, стиль/размер | D2, диаметр резьбы | Число зубьев | Длина вылета L1 | Общая длина L2 |
|---|---|---|---|---|---|---|---|---|
| 46Y-72UNR6LM040 IN2006 | 72 | - | 1 | .250" Cylindrical | 0.057 | 3 | 0.150 | 2.5 |
| 46Y-64UNR6LM040 IN2006 | 64 | 1 | 2 | .250" Cylindrical | 0.055 | 3 | 0.150 | 2.5 |
| 46Y-56UNR6LM040 IN2006 | 56 | 2 | 3 | .250" Cylindrical | 0.065 | 3 | 0.170 | 2.5 |
| 46Y-48UNR6LM050 IN2006 | 48 | 3 | 4 | .250" Cylindrical | 0.075 | 3 | 0.200 | 2.5 |
| 46Y-40UNR6LM060 IN2006 | 40 | 4 | - | .250" Cylindrical | 0.083 | 3 | 0.250 | 2.5 |
| 46Y-40UNR6LM070 IN2006 | 40 | 5 | 6 | .250" Cylindrical | 0.096 | 3 | 0.280 | 2.5 |
| 46Y-40UNR6LM100 IN2006 | 40 | 5 | 6 | .250" Cylindrical | 0.096 | 3 | 0.380 | 2.5 |
| 46Y-36UNR6LM090 IN2006 | 36 | - | 8 | .250" Cylindrical | 0.130 | 3 | 0.350 | 2.5 |
| 46Y-32UNR6LM070 IN2006 | 32 | 6 | - | .250" Cylindrical | 0.100 | 3 | 0.280 | 2.5 |
| 46Y-32UNR6LM090 IN2006 | 32 | 8 | - | .250" Cylindrical | 0.126 | 3 | 0.370 | 2.5 |
| 46Y-32UNR6LM100 IN2006 | 32 | - | 10 | .250" Cylindrical | 0.146 | 3 | 0.410 | 2.5 |
| 46Y-32UNR6LM120 IN2006 | 32 | 8 | - | .312" Cylindrical | 0.126 | 3 | 0.490 | 2.5 |
| 46Y-32UNR6LM150 IN2006 | 32 | - | 10 | .250" Cylindrical | 0.146 | 3 | 0.590 | 2.5 |
| 46Y-28UNR6LM110 IN2006 | 28 | - | 12 | .250" Cylindrical | 0.165 | 3 | 0.430 | 2.5 |
| 46Y-28UNR6LM140 IN2006 | 28 | - | 1/4 | .250" Cylindrical | 0.197 | 3 | 0.570 | 2.5 |
| 46Y-28UNR6LM190 IN2006 | 28 | - | 1/4 | .250" Cylindrical | 0.197 | 3 | 0.750 | 2.5 |
| 46Y-24UNR6LM110 IN2006 | 24 | 10, 12 | - | .250" Cylindrical | 0.138 | 3 | 0.420 | 2.5 |
| 46Y-24UNR7LM170 IN2006 | 24 | - | 5/16 | .250" Cylindrical | 0.260 | 3 | 0.670 | 2.5 |
| 46Y-24UNR7LM240 IN2006 | 24 | - | 5/16 | .312" Cylindrical | 0.260 | 3 | 0.940 | 2.5 |
| 46Y-20UNR6LM140 IN2006 | 20 | 1/4 | - | .250" Cylindrical | 0.187 | 3 | 0.550 | 2.5 |
| 46Y-20UNR6LM190 IN2006 | 20 | 1/4 | - | .312" Cylindrical | 0.187 | 3 | 0.750 | 2.5 |
| 46Y-18UNR6LM170 IN2006 | 18 | 5/16 | - | .250" Cylindrical | 0.236 | 3 | 0.670 | 2.5 |
| 46Y-18UNR6LM230 IN2006 | 18 | 5/16 | - | .375" Cylindrical | 0.236 | 3 | 0.910 | 2.5 |
| 46Y-16UNR7LM220 IN2006 | 16 | 3/8 | - | .250" Cylindrical | 0.264 | 3 | 0.870 | 2.5 |
| 46Y-14UNR7LM250 IN2006 | 14 | 7/16 | - | .250" Cylindrical | 0.303 | 3 | 0.980 | 2.5 |
| 46Y-13UNR8LM270 IN2006 | 13 | 1/2 | - | .250" Cylindrical | 0.362 | 3 | 1.080 | 3 |
Указания по эксплуатации на странице 704.
