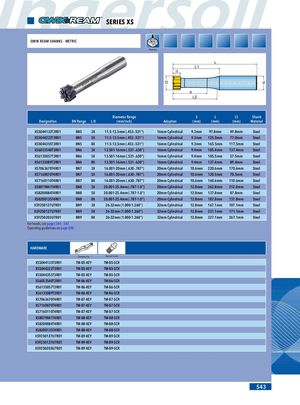

Общий каталог Ingersoll 2011 - страница 541
Навигация
Общий каталог Ingersoll 2016 - 2017
Общий каталог Ingersoll 2014
Каталог Ingersoll инструмент для нарезания резьбы
Общий каталог Ingersoll 2013 - 2014
Каталог Ingersoll новинки 2021- 0003 Table of Contents
- 0006 End Mills
- 0064 Long Edge
- 0104 0Deg Face Mills
- 0160 Face Mills
- 0202 Slotters
- 0218 Form Mills
- 0236 Profile Mills
- 0302 Milling Tech
- 0384 Solid Carbide
- 0448 Solid Carbide Tech
- 0474 Holemaking & Thread Milling
- 0666 Holemaking & Thread Milling Tech
- 0720 Innofit Top On Toolholders
- 0738 HSK Toolholders
- 0774 CAT Toolholders
- 0796 BT Toolholders
- 0816 Adaptions Accessories
- 0872 Turning Inserts
- 1024 Turning Holders
- 1144 Turning Tech
- 1174 Threading Inserts
- 1242 Threading Holders
- 1256 Threading Tech
- 1268 T-Clamp
- 1344 T-Clamp Tech
- 1376 T-CAP
- 1388 T-CAP Tech
- 1394 Product_Index
SERIES XS
ХВОСТОВИКИ QWIK REAM - МЕТРИЧЕСКИЕ
Развёртывание.
| Обозначение | Диапазон BN | L:D | Диапазон диаметров (мм/дюйм) | Адаптация | S (мм) | L (мм) | L1 (мм) | Материал хвостовика |
|---|---|---|---|---|---|---|---|---|
| XS5044133T3R01 | BN5 | 3X | 11.5-13.5mm (.453-.531") | 16mm цилиндрический | 9.3mm | 97.8mm | 49.8mm | Сталь |
| XS5044222T3R01 | BN5 | 5X | 11.5-13.5mm (.453-.531") | 16mm цилиндрический | 9.3mm | 125.0mm | 77.0mm | Сталь |
| XS5044355T3R01 | BN5 | 8X | 11.5-13.5mm (.453-.531") | 16mm цилиндрический | 9.3mm | 165.5mm | 117.5mm | Сталь |
| XS6053540T3R01 | BN6 | 3X | 13.501-16mm (.531-.630") | 16mm цилиндрический | 9.4mm | 185.4mm | 137.4mm | Сталь |
| XS6135057T3R01 | BN6 | 5X | 13.501-16mm (.531-.630") | 16mm цилиндрический | 9.4mm | 105.5mm | 57.5mm | Сталь |
| XS6135089T3R01 | BN6 | 8X | 13.501-16mm (.531-.630") | 16mm цилиндрический | 9.4mm | 137.4mm | 89.4mm | Сталь |
| XS7063670T4R01 | BN7 | 3X | 16.001-20mm (.630-.787") | 20mm цилиндрический | 10.6mm | 220.6mm | 170.6mm | Сталь |
| XS7160070T4R01 | BN7 | 5X | 16.001-20mm (.630-.787") | 20mm цилиндрический | 10.6mm | 120.5mm | 70.5mm | Сталь |
| XS7160110T4R01 | BN7 | 8X | 16.001-20mm (.630-.787") | 20mm цилиндрический | 10.6mm | 160.6mm | 110.6mm | Сталь |
| XS8079841T4R01 | BN8 | 3X | 20.001-25.4mm (.787-1.0") | 20mm цилиндрический | 12.8mm | 262.8mm | 212.0mm | Сталь |
| XS8200084T4R01 | BN8 | 5X | 20.001-25.4mm (.787-1.0") | 20mm цилиндрический | 12.8mm | 137.8mm | 87.8mm | Сталь |
| XS8200135T4R01 | BN8 | 8X | 20.001-25.4mm (.787-1.0") | 20mm цилиндрический | 12.8mm | 187.8mm | 137.8mm | Сталь |
| XS9250127U7R01 | BN9 | 3X | 26-32mm (1.000-1.260") | 32mm цилиндрический | 12.8mm | 167.1mm | 107.1mm | Сталь |
| XS9250127U7R01 | BN9 | 5X | 26-32mm (1.000-1.260") | 32mm цилиндрический | 12.8mm | 231.1mm | 171.1mm | Сталь |
| XS9250203U7R01 | BN9 | 8X | 26-32mm (1.000-1.260") | 32mm цилиндрический | 12.8mm | 327.1mm | 267.1mm | Сталь |
Головки см. на страницах 544-547.
Рекомендации по эксплуатации на странице 694.
КРЕПЁЖ
| Обозначение | Зажимной ключ | Байонетный винт |
|---|---|---|
| XS5044133T3R01 | TM-B5-KEY | TM-B5-SCR |
| XS5044222T3R01 | TM-B5-KEY | TM-B5-SCR |
| XS5044355T3R01 | TM-B5-KEY | TM-B5-SCR |
| XS6053540T3R01 | TM-B6-KEY | TM-B6-SCR |
| XS6135057T3R01 | TM-B6-KEY | TM-B6-SCR |
| XS6135089T3R01 | TM-B6-KEY | TM-B6-SCR |
| XS7063670T4R01 | TM-B7-KEY | TM-B7-SCR |
| XS7160070T4R01 | TM-B7-KEY | TM-B7-SCR |
| XS7160110T4R01 | TM-B7-KEY | TM-B7-SCR |
| XS8079841T4R01 | TM-B8-KEY | TM-B8-SCR |
| XS8200084T4R01 | TM-B8-KEY | TM-B8-SCR |
| XS8200135T4R01 | TM-B8-KEY | TM-B8-SCR |
| XS9250127U7R01 | TM-B9-KEY | TM-B9-SCR |
| XS9250127U7R01 | TM-B9-KEY | TM-B9-SCR |
| XS9250203U7R01 | TM-B9-KEY | TM-B9-SCR |
