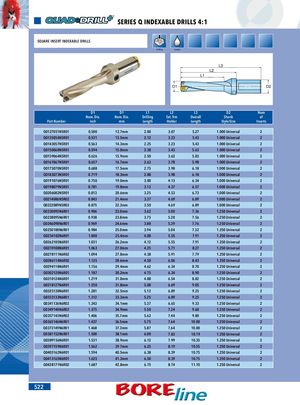

SERIES Q INDEXABLE DRILLS 4:1
Сверла со сменными квадратными пластинами
Сверление. Охлаждающая жидкость.
| Номер детали | D1, номинальный диаметр, дюйм | D1, номинальный диаметр, мм | L1, длина сверления | L2, вылет из державки | L3, общая длина | D2, тип/размер хвостовика | Кол-во пластин |
|---|---|---|---|---|---|---|---|
| Q0127051N5R01 | 0.500 | 12.7mm | 2.00 | 3.07 | 5.27 | 1.000 Universal | 2 |
| Q0135054N5R01 | 0.531 | 13.5mm | 2.12 | 3.23 | 5.43 | 1.000 Universal | 2 |
| Q0143057N5R01 | 0.563 | 14.3mm | 2.25 | 3.23 | 5.43 | 1.000 Universal | 2 |
| Q0150060N5R01 | 0.594 | 15.0mm | 2.38 | 3.43 | 5.63 | 1.000 Universal | 2 |
| Q0159064N5R01 | 0.626 | 15.9mm | 2.50 | 3.62 | 5.83 | 1.000 Universal | 2 |
| Q0167067N5R01 | 0.657 | 16.7mm | 2.63 | 3.78 | 5.98 | 1.000 Universal | 2 |
| Q0175070N5R01 | 0.688 | 17.5mm | 2.75 | 3.98 | 6.18 | 1.000 Universal | 2 |
| Q0183073N5R01 | 0.719 | 18.3mm | 2.88 | 3.98 | 6.18 | 1.000 Universal | 2 |
| Q0191076N5R01 | 0.750 | 19.0mm | 3.00 | 4.13 | 6.34 | 1.000 Universal | 2 |
| Q0198079N5R01 | 0.781 | 19.8mm | 3.12 | 4.37 | 6.57 | 1.000 Universal | 2 |
| Q0206082N5R01 | 0.813 | 20.6mm | 3.25 | 4.53 | 6.73 | 1.000 Universal | 2 |
| Q0214086N5R02 | 0.843 | 21.4mm | 3.37 | 4.69 | 6.89 | 1.000 Universal | 2 |
| Q0222089N5R02 | 0.875 | 22.2mm | 3.50 | 4.69 | 6.89 | 1.000 Universal | 2 |
| Q0230092N6R01 | 0.906 | 23.0mm | 3.62 | 5.00 | 7.36 | 1.250 Universal | 2 |
| Q0238095N6R01 | 0.938 | 23.8mm | 3.75 | 5.20 | 7.56 | 1.250 Universal | 2 |
| Q0246098N6R01 | 0.969 | 24.6mm | 3.88 | 5.39 | 7.76 | 1.250 Universal | 2 |
| Q0250100N6R01 | 0.984 | 25.0mm | 3.94 | 5.04 | 7.32 | 1.250 Universal | 2 |
| Q0254102N6R01 | 1.000 | 25.4mm | 4.00 | 5.55 | 7.91 | 1.250 Universal | 2 |
| Q0262105N6R01 | 1.031 | 26.2mm | 4.12 | 5.55 | 7.91 | 1.250 Universal | 2 |
| Q0270108N6R01 | 1.063 | 27.0mm | 4.25 | 5.71 | 8.27 | 1.250 Universal | 2 |
| Q0278111N6R02 | 1.094 | 27.8mm | 4.38 | 5.91 | 7.79 | 1.250 Universal | 2 |
| Q0286114N6R02 | 1.125 | 28.6mm | 4.50 | 6.06 | 8.43 | 1.250 Universal | 2 |
| Q0294118N6R01 | 1.156 | 29.4mm | 4.62 | 6.34 | 8.70 | 1.250 Universal | 2 |
| Q0302120N6R01 | 1.187 | 30.2mm | 4.75 | 6.34 | 8.90 | 1.250 Universal | 2 |
| Q0310124N6R01 | 1.219 | 31.0mm | 4.88 | 6.54 | 8.82 | 1.250 Universal | 2 |
| Q0318127N6R01 | 1.250 | 31.8mm | 5.00 | 6.69 | 9.05 | 1.250 Universal | 2 |
| Q0325130N6R01 | 1.281 | 32.5mm | 5.12 | 6.89 | 9.25 | 1.250 Universal | 2 |
| Q0333133N6R01 | 1.312 | 33.3mm | 5.25 | 6.89 | 9.25 | 1.250 Universal | 2 |
| Q0341136N6R02 | 1.343 | 34.1mm | 5.37 | 6.65 | 9.33 | 1.250 Universal | 2 |
| Q0349140N6R02 | 1.375 | 34.9mm | 5.50 | 7.24 | 9.60 | 1.250 Universal | 2 |
| Q0357143N6R02 | 1.406 | 35.7mm | 5.62 | 7.44 | 9.80 | 1.250 Universal | 2 |
| Q0365146N6R01 | 1.437 | 36.5mm | 5.75 | 7.64 | 10.00 | 1.250 Universal | 2 |
| Q0373149N6R01 | 1.468 | 37.3mm | 5.87 | 7.64 | 10.00 | 1.250 Universal | 2 |
| Q0381152N6R01 | 1.500 | 38.1mm | 6.00 | 7.83 | 10.19 | 1.250 Universal | 2 |
| Q0389156N6R01 | 1.531 | 38.9mm | 6.12 | 7.99 | 10.35 | 1.250 Universal | 2 |
| Q0397159N6R01 | 1.562 | 39.7mm | 6.25 | 8.19 | 10.55 | 1.250 Universal | 2 |
| Q0405162N6R01 | 1.594 | 40.5mm | 6.38 | 8.39 | 10.75 | 1.250 Universal | 2 |
| Q0413165N6R01 | 1.625 | 41.3mm | 6.50 | 8.39 | 10.75 | 1.250 Universal | 2 |
| Q0428171N6R02 | 1.687 | 42.8mm | 6.75 | 8.74 | 11.10 | 1.250 Universal | 2 |
