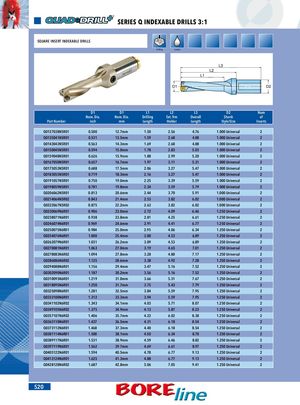

SERIES Q INDEXABLE DRILLS 3:1
Сверла со сменными квадратными пластинами
Сверление. Охлаждающая жидкость.
| Номер детали | D1, номинальный диаметр, дюйм | D1, номинальный диаметр, мм | L1, длина сверления | L2, вылет из державки | L3, общая длина | D2, тип/размер хвостовика | Кол-во пластин |
|---|---|---|---|---|---|---|---|
| Q0127038N5R01 | 0.500 | 12.7mm | 1.50 | 2.56 | 4.76 | 1.000 Universal | 2 |
| Q0135041N5R01 | 0.531 | 13.5mm | 1.59 | 2.68 | 4.88 | 1.000 Universal | 2 |
| Q0143043N5R01 | 0.563 | 14.3mm | 1.69 | 2.68 | 4.88 | 1.000 Universal | 2 |
| Q0150045N5R01 | 0.594 | 15.0mm | 1.78 | 2.83 | 5.03 | 1.000 Universal | 2 |
| Q0159048N5R01 | 0.626 | 15.9mm | 1.88 | 2.99 | 5.20 | 1.000 Universal | 2 |
| Q0167050N5R01 | 0.657 | 16.7mm | 1.97 | 3.11 | 5.31 | 1.000 Universal | 2 |
| Q0175053N5R01 | 0.688 | 17.5mm | 2.06 | 3.27 | 5.47 | 1.000 Universal | 2 |
| Q0183055N5R01 | 0.719 | 18.3mm | 2.16 | 3.27 | 5.47 | 1.000 Universal | 2 |
| Q0191057N5R01 | 0.750 | 19.0mm | 2.25 | 3.39 | 5.59 | 1.000 Universal | 2 |
| Q0198059N5R01 | 0.781 | 19.8mm | 2.34 | 3.59 | 5.79 | 1.000 Universal | 2 |
| Q0206062N5R01 | 0.813 | 20.6mm | 2.44 | 3.70 | 5.91 | 1.000 Universal | 2 |
| Q0214064N5R02 | 0.843 | 21.4mm | 2.53 | 3.82 | 6.02 | 1.000 Universal | 2 |
| Q0222067N5R02 | 0.875 | 22.2mm | 2.63 | 3.82 | 6.02 | 1.000 Universal | 2 |
| Q0230069N6R01 | 0.906 | 23.0mm | 2.72 | 4.09 | 6.46 | 1.250 Universal | 2 |
| Q0238071N6R01 | 0.938 | 23.8mm | 2.81 | 4.25 | 6.61 | 1.250 Universal | 2 |
| Q0246074N6R01 | 0.969 | 24.6mm | 2.91 | 4.41 | 6.77 | 1.250 Universal | 2 |
| Q0250075N6R01 | 0.984 | 25.0mm | 2.95 | 4.06 | 6.34 | 1.250 Universal | 2 |
| Q0254076N6R01 | 1.000 | 25.4mm | 3.00 | 4.53 | 6.89 | 1.250 Universal | 2 |
| Q0262079N6R01 | 1.031 | 26.2mm | 3.09 | 4.53 | 6.89 | 1.250 Universal | 2 |
| Q0270081N6R01 | 1.063 | 27.0mm | 3.19 | 4.65 | 7.01 | 1.250 Universal | 2 |
| Q0278083N6R02 | 1.094 | 27.8mm | 3.28 | 4.80 | 7.17 | 1.250 Universal | 2 |
| Q0286086N6R02 | 1.125 | 28.6mm | 3.38 | 4.92 | 7.28 | 1.250 Universal | 2 |
| Q0294088N6R01 | 1.156 | 29.4mm | 3.47 | 5.16 | 7.52 | 1.250 Universal | 2 |
| Q0302090N6R01 | 1.187 | 30.2mm | 3.56 | 5.16 | 7.52 | 1.250 Universal | 2 |
| Q0310093N6R01 | 1.219 | 31.0mm | 3.66 | 5.31 | 7.67 | 1.250 Universal | 2 |
| Q0318095N6R01 | 1.250 | 31.7mm | 3.75 | 5.43 | 7.79 | 1.250 Universal | 2 |
| Q0325098N6R01 | 1.281 | 32.5mm | 3.84 | 5.59 | 7.95 | 1.250 Universal | 2 |
| Q0333100N6R01 | 1.312 | 33.3mm | 3.94 | 5.59 | 7.95 | 1.250 Universal | 2 |
| Q0341102N6R02 | 1.343 | 34.1mm | 4.03 | 5.71 | 8.07 | 1.250 Universal | 2 |
| Q0349105N6R02 | 1.375 | 34.9mm | 4.13 | 5.87 | 8.23 | 1.250 Universal | 2 |
| Q0357107N6R02 | 1.406 | 35.7mm | 4.22 | 6.02 | 8.38 | 1.250 Universal | 2 |
| Q0365110N6R01 | 1.437 | 36.5mm | 4.31 | 6.18 | 8.54 | 1.250 Universal | 2 |
| Q0373112N6R01 | 1.468 | 37.3mm | 4.40 | 6.18 | 8.54 | 1.250 Universal | 2 |
| Q0381114N6R01 | 1.500 | 38.1mm | 4.50 | 6.34 | 8.70 | 1.250 Universal | 2 |
| Q0389117N6R01 | 1.531 | 38.9mm | 4.59 | 6.46 | 8.82 | 1.250 Universal | 2 |
| Q0397119N6R01 | 1.562 | 39.7mm | 4.69 | 6.61 | 8.97 | 1.250 Universal | 2 |
| Q0405122N6R01 | 1.594 | 40.5mm | 4.78 | 6.77 | 9.13 | 1.250 Universal | 2 |
| Q0413124N6R01 | 1.625 | 41.3mm | 4.88 | 6.77 | 9.13 | 1.250 Universal | 2 |
| Q0428128N6R02 | 1.687 | 42.8mm | 5.06 | 7.05 | 9.41 | 1.250 Universal | 2 |
