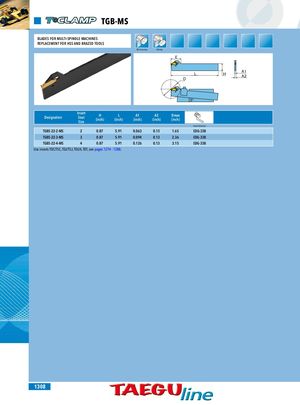

TGB-MS BLADES FOR MULTI-SPINDLE MACHINES REPLACEMENT FOR HSS AND BRAZED TOOLS OD Grooving Parting E A1 L H A2 D 5° Insert H L A1 A2 Dmax Designation Seat (inch) (inch) (inch) (inch) (inch) Size Insert Extractor TGB5-22-2-MS 2 0.87 5.91 0.063 0.13 1.65 EDG-33B TGB5-22-3-MS 3 0.87 5.91 0.094 0.13 2.36 EDG-33B TGB5-22-4-MS 4 0.87 5.91 0.126 0.13 3.15 EDG-33B Use inserts TDC/TSC, TDJ/TSJ, TDUX, TDT, see pages 1274 - 1288. 1308
