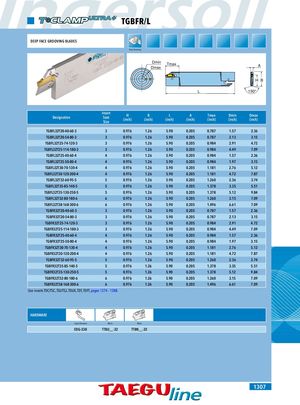

TGBFR/L
Державки резцов для глубокой обработки торцевых канавок
| Обозначение | Размер гнезда | H (дюйм) | B (дюйм) | L (дюйм) | A (дюйм) | Tmax (дюйм) | Dmin (дюйм) | Dmax (дюйм) |
|---|---|---|---|---|---|---|---|---|
| TGBFL32T20-40-60-3 | 3 | 0.976 | 1.26 | 5.90 | 0.205 | 0.787 | 1.57 | 2.36 |
| TGBFL32T20-54-80-3 | 3 | 0.976 | 1.26 | 5.90 | 0.205 | 0.787 | 2.13 | 3.15 |
| TGBFL32T25-74-120-3 | 3 | 0.976 | 1.26 | 5.90 | 0.205 | 0.984 | 2.91 | 4.72 |
| TGBFL32T25-114-180-3 | 3 | 0.976 | 1.26 | 5.90 | 0.205 | 0.984 | 4.49 | 7.09 |
| TGBFL32T25-40-60-4 | 4 | 0.976 | 1.26 | 5.90 | 0.205 | 0.984 | 1.57 | 2.36 |
| TGBFL32T25-50-80-4 | 4 | 0.976 | 1.26 | 5.90 | 0.205 | 0.984 | 1.97 | 3.15 |
| TGBFL32T30-70-130-4 | 4 | 0.976 | 1.26 | 5.90 | 0.205 | 1.181 | 2.76 | 5.12 |
| TGBFL32T30-120-200-4 | 4 | 0.976 | 1.26 | 5.90 | 0.205 | 1.181 | 4.72 | 7.87 |
| TGBFL32T32-60-95-5 | 5 | 0.976 | 1.26 | 5.90 | 0.205 | 1.260 | 2.36 | 3.74 |
| TGBFL32T35-85-140-5 | 5 | 0.976 | 1.26 | 5.90 | 0.205 | 1.378 | 3.35 | 5.51 |
| TGBFL32T35-130-250-5 | 5 | 0.976 | 1.26 | 5.90 | 0.205 | 1.378 | 5.12 | 9.84 |
| TGBFL32T32-80-180-6 | 6 | 0.976 | 1.26 | 5.90 | 0.205 | 1.260 | 3.15 | 7.09 |
| TGBFL32T38-168-300-6 | 6 | 0.976 | 1.26 | 5.90 | 0.205 | 1.496 | 6.61 | 7.09 |
| TGBFR32T20-40-60-3 | 3 | 0.976 | 1.26 | 5.90 | 0.205 | 0.787 | 1.57 | 2.36 |
| TGBFR32T20-54-80-3 | 3 | 0.976 | 1.26 | 5.90 | 0.205 | 0.787 | 2.13 | 3.15 |
| TGBFR32T25-74-120-3 | 3 | 0.976 | 1.26 | 5.90 | 0.205 | 0.984 | 2.91 | 4.72 |
| TGBFR32T25-114-180-3 | 3 | 0.976 | 1.26 | 5.90 | 0.205 | 0.984 | 4.49 | 7.09 |
| TGBFR32T25-40-60-4 | 4 | 0.976 | 1.26 | 5.90 | 0.205 | 0.984 | 1.57 | 2.36 |
| TGBFR32T25-50-80-4 | 4 | 0.976 | 1.26 | 5.90 | 0.205 | 0.984 | 1.97 | 3.15 |
| TGBFR32T30-70-130-4 | 4 | 0.976 | 1.26 | 5.90 | 0.205 | 1.181 | 2.76 | 5.12 |
| TGBFR32T30-120-200-4 | 4 | 0.976 | 1.26 | 5.90 | 0.205 | 1.181 | 4.72 | 7.87 |
| TGBFR32T32-60-95-5 | 5 | 0.976 | 1.26 | 5.90 | 0.205 | 1.260 | 2.36 | 3.74 |
| TGBFR32T35-85-140-5 | 5 | 0.976 | 1.26 | 5.90 | 0.205 | 1.378 | 3.35 | 5.51 |
| TGBFR32T35-130-250-5 | 5 | 0.976 | 1.26 | 5.90 | 0.205 | 1.378 | 5.12 | 9.84 |
| TGBFR32T32-80-180-6 | 6 | 0.976 | 1.26 | 5.90 | 0.205 | 1.260 | 3.15 | 7.09 |
| TGBFR32T38-168-300-6 | 6 | 0.976 | 1.26 | 5.90 | 0.205 | 1.496 | 6.61 | 7.09 |
Использовать вставки TDC/TSC, TDJ/TSJ, TDUX, TDT, TDFT, страницы 1274 - 1288.
Принадлежности
| Съемник вставок | Блок | Блок |
|---|---|---|
| EDG-33B | TTBU__-32 | TTBN__-32 |
